30
Installing the toilet

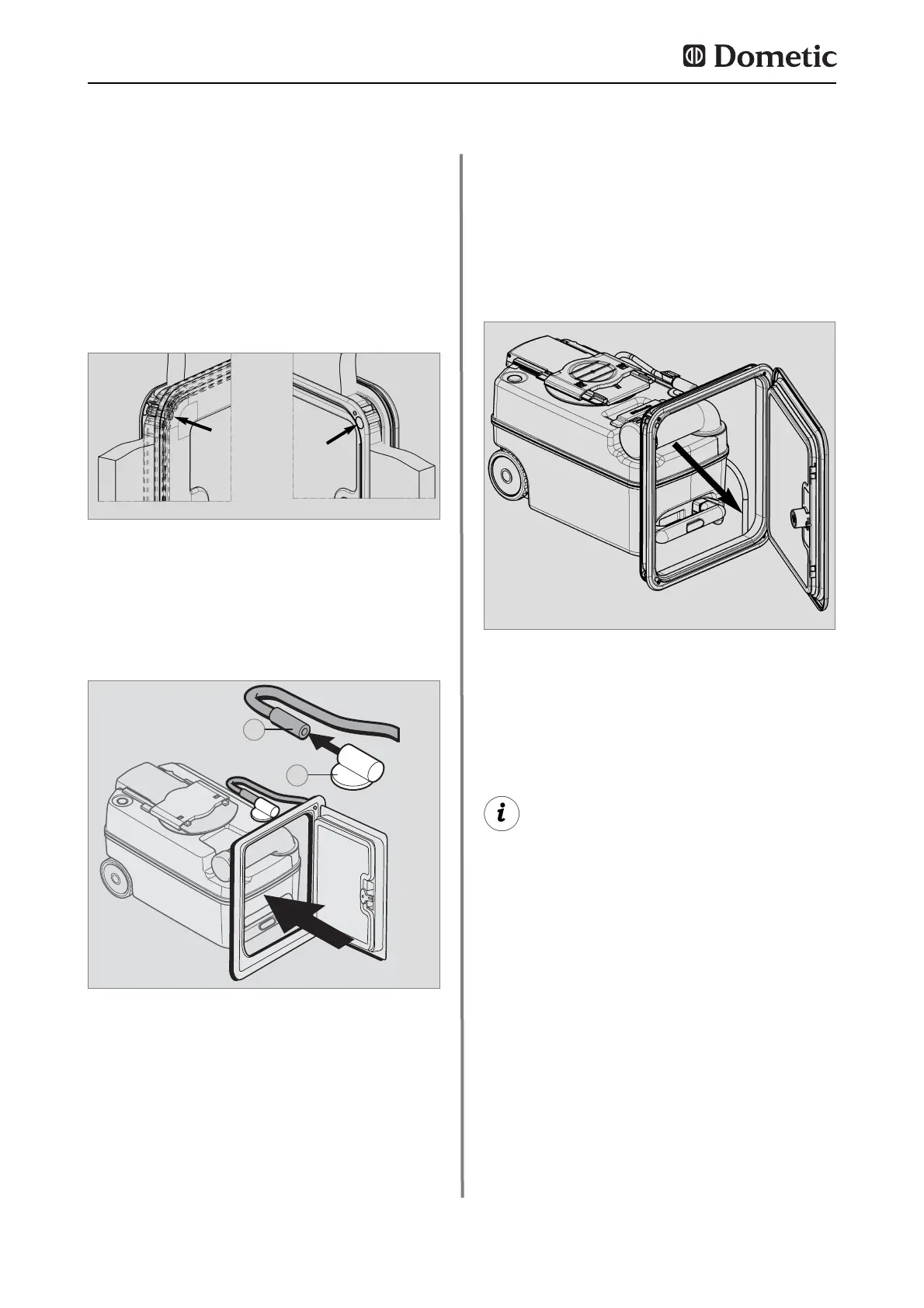

4.6 Ventilation
Place the ventilation hose on the integrated
ventilation aperture of the service door as illu-
strated.
Fig. 28
Ventilation at SK5
Ventilation at SK4
Fig. 29
Fig. 27
Outside
Inside
a
a
Open the duct (a) for the ventilation hose in the
top area of the door frame (press out spraying
varnish on the outside, drill through on the
inside).
4.6.1 Ventilation with SK 5
Create an aperture in the recess floor (diame-
ter approx. 12 mm). Insert the ventilation hose
into this aperture for extraction to the outside.
4.6.2 Ventilation with SK 4
The service door is optionally available.
1
2
