25

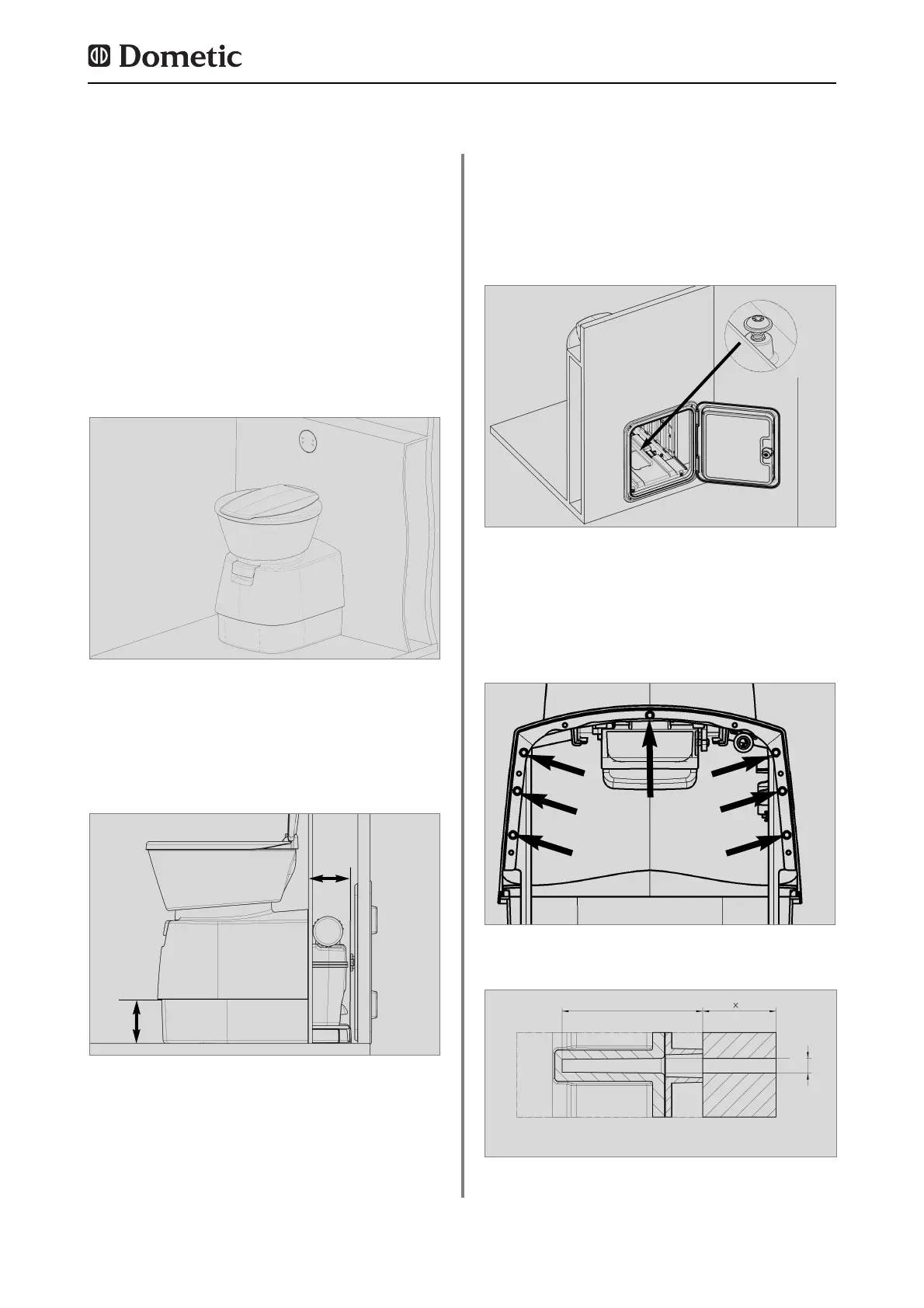

Installing the toilet
The free-standing CT 4xxx model has no inte-
grated water tank. Install this model so that
the wall behind it can absorb the control panel
of the toilet, the electric connections and the
water tank, if applicable. It is ideal to set a box
in front of the room wall, as illustrated in Fig. 7.
Install the control and operator panel in imme-
diate proximity to the toilet (see Section
4.3.1.2).
Note that the cassette projects 120 mm (a) out
of the cassette housing (Fig. 8). The pedestal
height (b) ranges from 50 to 110 mm, depen-
ding on the model.
4.3.1 Installing the CT 4xxx toilet
Fig.7
Fig. 8
a
b
4.3.1.1 Fitting the CT 4xxx toilet
Once the toilet is installed in the desired posi-
tion, bolt down the floor plate with the six
screws (enclosed) (Fig. 10).
Then attach the toilet housing (with no more
than 7 screws, not enclosed) to the wall (Fig.
10,11).
Fig. 10
Fig. 9
Screws Ø = 4.2 mm
Fig. 11
38 /- 0.5 mm
4.5 mm
6x
