28

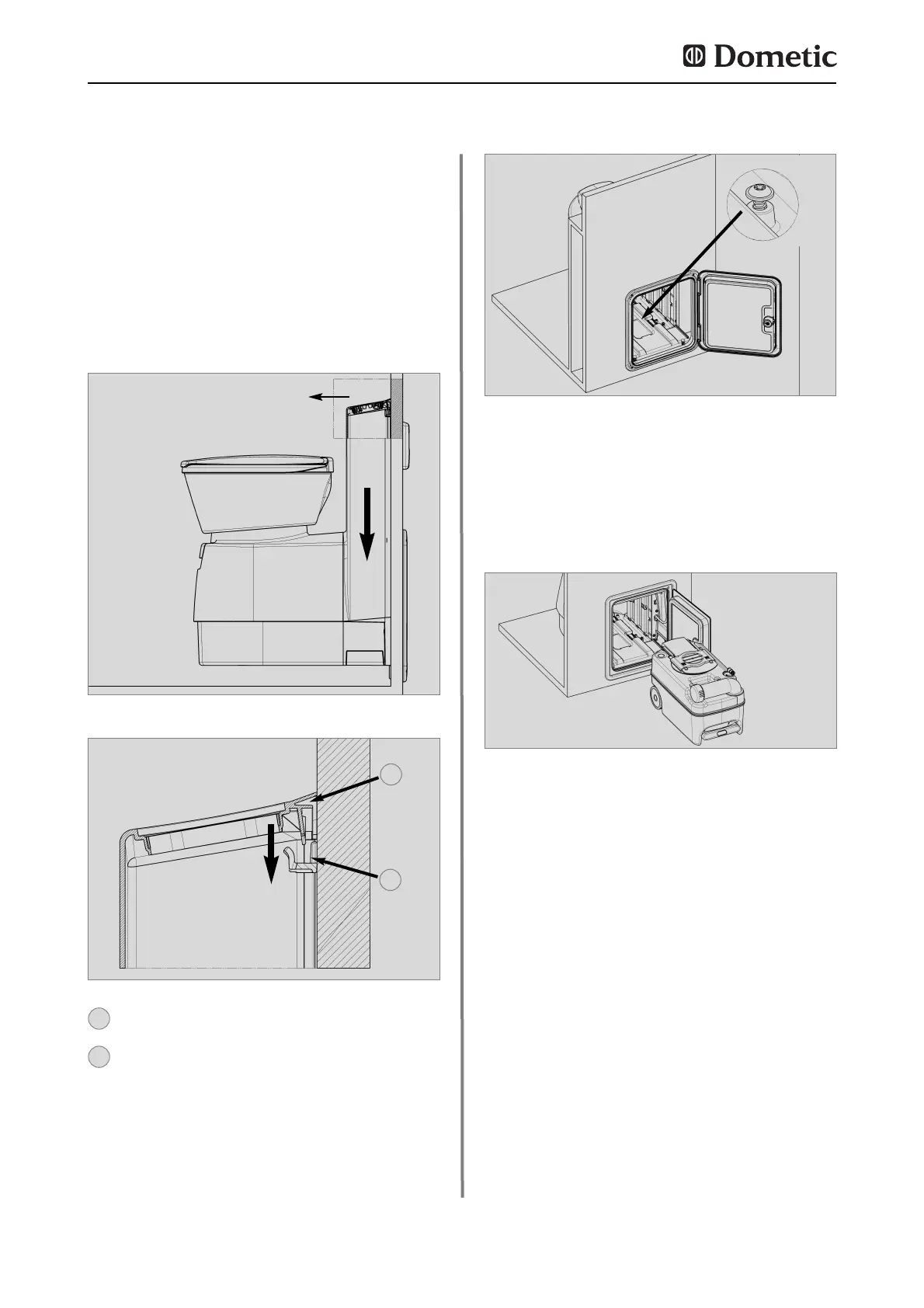

Place the entire toilet module in the desired
position in front of the wall holder. Lift the toi-
let. Then place the toilet so that the part on the
side of the wall of the housing hooks into the
the wall holder (Fig. 22).
Fig. 22
4.3.2.2 Fitting the CTS 4xxx, CTW 4xxx and
CTLP 4xxx toilets
Fig. 21
Fig. 22
1
2
1 = Wall connection console
2 = Wall holder
If the toilet is installed in the desired position,
bolt down the floor plate with the six screws
enclosed and insert the mobile tank cassette.
Installing the toilet
Fig. 24
Fig. 23
6x
1
2
“More information https://www.caravansplus.com.au"
