23
Description of model

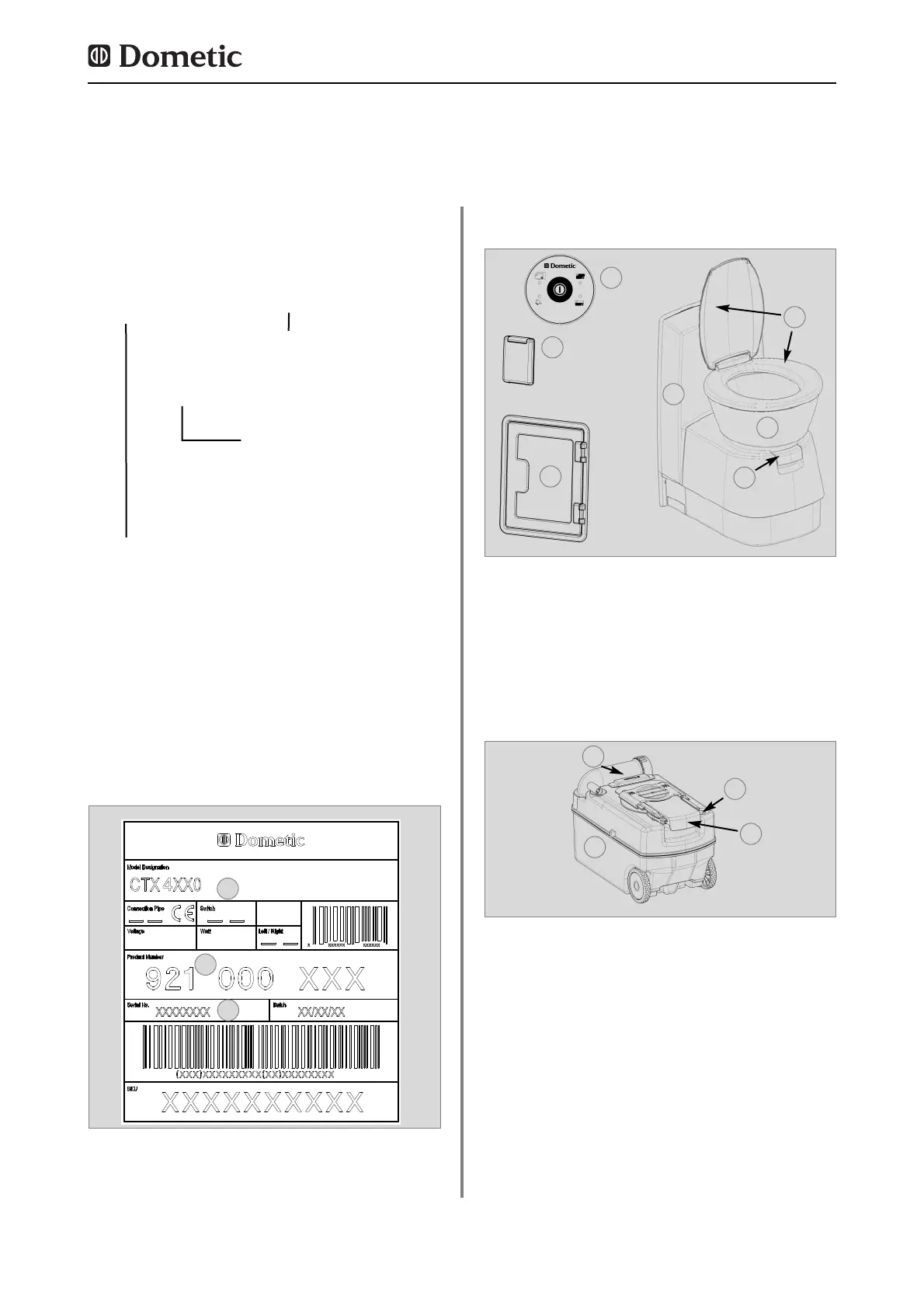

3.0 Description of model
3.1 Model identification
1 = Removable cover and seat
2 = Toilet bowl
3 = Emptying blade for the toilet bowl
4 = Console for water tank
5 = Level indicator / control panel (flush)
6 = Flap / fresh water filler plug
7 = Service door
1 = Model number
2 = Product number
3 = Serial number
The identification label contains all important
details. You can read off from this the model
identification, the product number and the
serial number. You will find the identification
label within the cassette housing after remo-
ving the cassette.
3.2 Toilet identification label
2
4
3
1
3.3 Explanation of components
Fig. 2
8 = Cassette tank (capacity 19 l)
9 = Pour out spout
10 = Vent button for emptying
Fig. 3
5
8
3
10
9
6
7
CT
4050 or 4110
(S)
(W)
(LP)
Cassette Toilet
for installation in wet cell
S = free-standing without
flush water tank,with
console
W = free-standing with
integrated flush
water tank
LP = Low Profile, low con-
sole
Example :
Fig. 1
1
2
3
