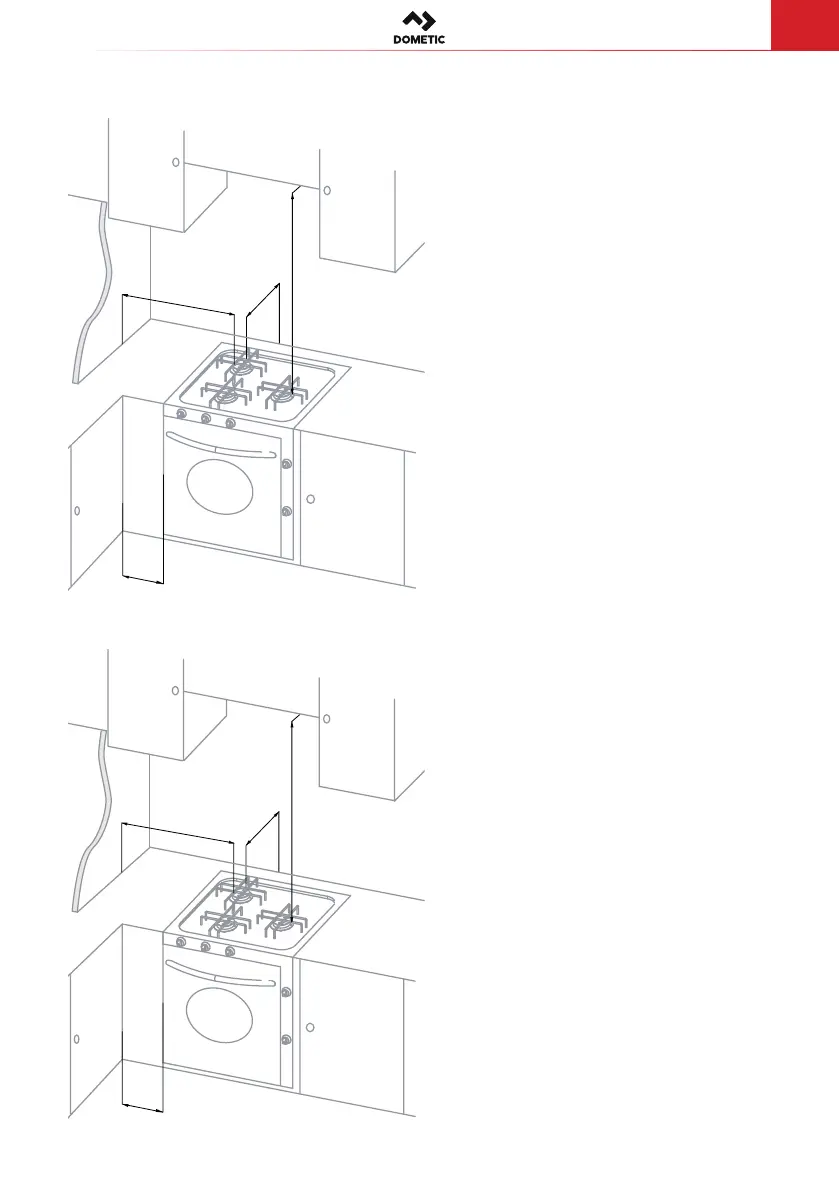

FIGURES AND

TECHNICAL DRAWINGS

200 mm

550 mm

100 mm

Figure 4

CU311 - CU311M - CU333 - CU333M -

CU335 - CU335M -

CU401PE - CU402- CU402PE - CU403 -

CU403PE -

MO8103 - MO8123 - MO8302 -

MO8322 - MO8303 - MO8323 -

MO9503 - MO9523 - PI0913 - PI0913A -

PI7903 - PI7923 - PI8002 - PI8022 -

PI8003 - PI8023 - PI8403 - PI8403GL -

PI8423 - PI8423GL - PI8443 - PI8463 -

PI8621A - PI8621S - PI8621R

NOTE: For CU4... and PI80... models

with a glass lid the rear clearance can be

reduced to 100 mm.

CU401

200 mm

500 mm

100 mm
