Dometic CU402 - Oven and Grill Operation

4. USE
EN
7

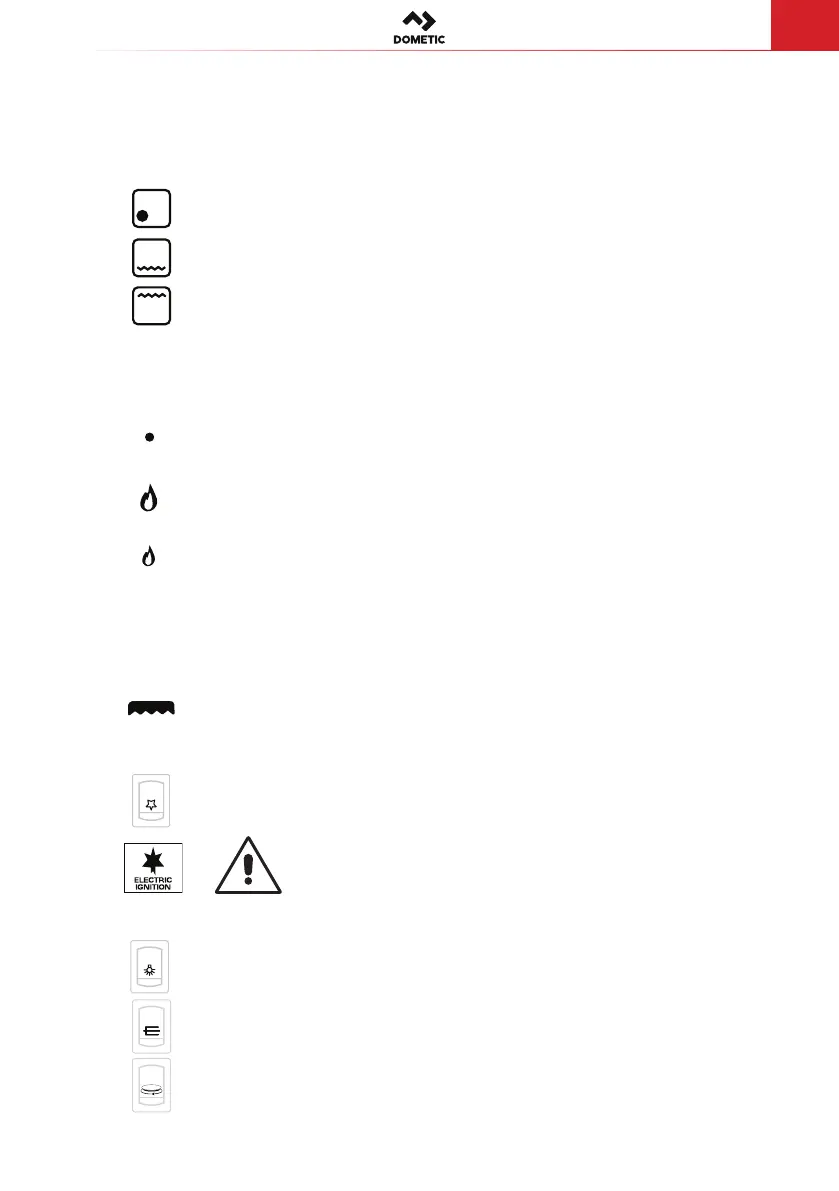

4.2 Control panel
The following symbols identify which knob corresponds to which burner.
NOTE: Different models could have similar knobs and symbols.
This symbol is positioned near the burner knobs on the hotplate.
The black dot indicates the position of the burner on the hotplate.
This symbol is positioned near the oven burner knob.
GRILL
This symbol is positioned near the grill burner knob.
The following symbols are for burner flame regulation and correspond to the position of the knob.
NOTE: Different models could have similar knobs and symbols.
Gas off
High flame
Low flame
0 Electric hotplate off
1 - 2 - 3 - 4 - 5 - 6 Oven and/or electric hotplate temperature
Grill
OTHER SYMBOLS
Electronic ignition pushbutton
CAUTION
This symbol is affixed in a clearly visible position near the oven
control knob for all models fitted with electronic ignition which is
activated by maintaining the control knob pressed.
Light switch
Spit switch
Turntable switch
In CU4... models it is also present as a turntable and light.
