– The appliance is fitted with a control panel, from which it is possible to controll all working
functions.
MAIN COMPONENTS

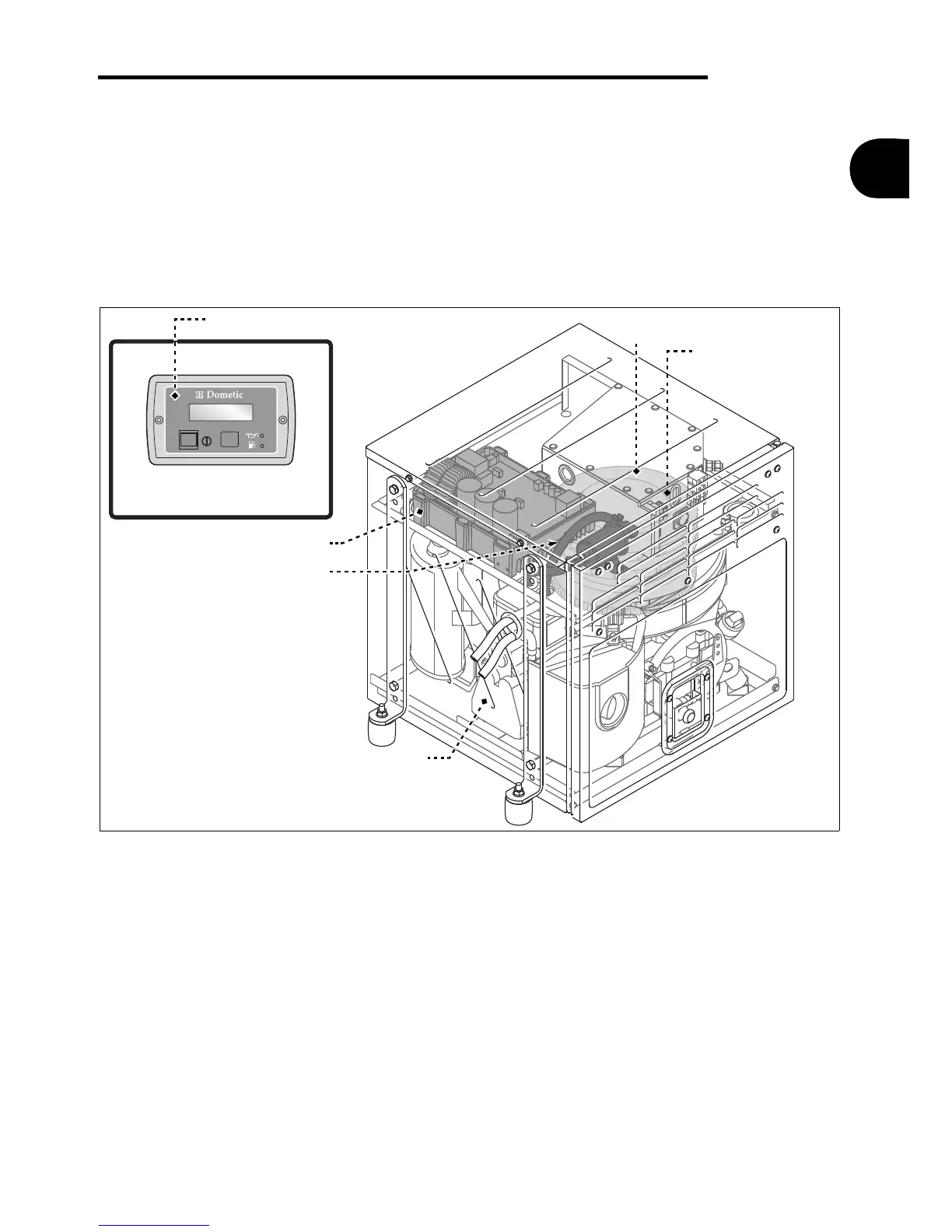

The illustration shows the main components of the equipment and the list includes their
description and function.
A) Endothermic motor: to power all the main components.
B) Alternator: transofms the mechanical energy of the motor into alternat current electrical
energy.
C) Fuel pump: takes the fuel from the tank and powers endothermic motor.
D) Inverter: converts the supply voltage into a perfectly stable, high quality voltage of
230V/50Hz.
E) Control board: comprises the devices used to operate and control all functions.
F) Control panel: is located within the equipment and is equipped with connection clamps,
a socket to connect to the control (E) board, and a safety switch.
