INSTALLATION
34 77091 Issue 2 November 2003
(1) (One litre base only.) Using the
mounting bracket (A) as a template,
drill two holes at an appropriate place
on the conveyor.
(2) (One litre base only.) Fix the
mounting bracket to the base unit
using the M5 mounting bolts (B)
provided. These bolts thread into the
holes at the top of the longest edge of
each side of the base unit.
(3) (One litre base only.) Fix the
mounting bracket/base unit assembly
to the conveyor using the two sets of M8 mounting bolts, washers and nuts
provided (C).
(4) (Three litre base only.) Open the base
unit door and locate the fixing holes
at the rear of the cabinet. Use these
as a template to drill into the
conveyor at the appropriate place.
Fix the base unit to the conveyor
using the M8 mounting bolts,
washers and nuts provided (C).

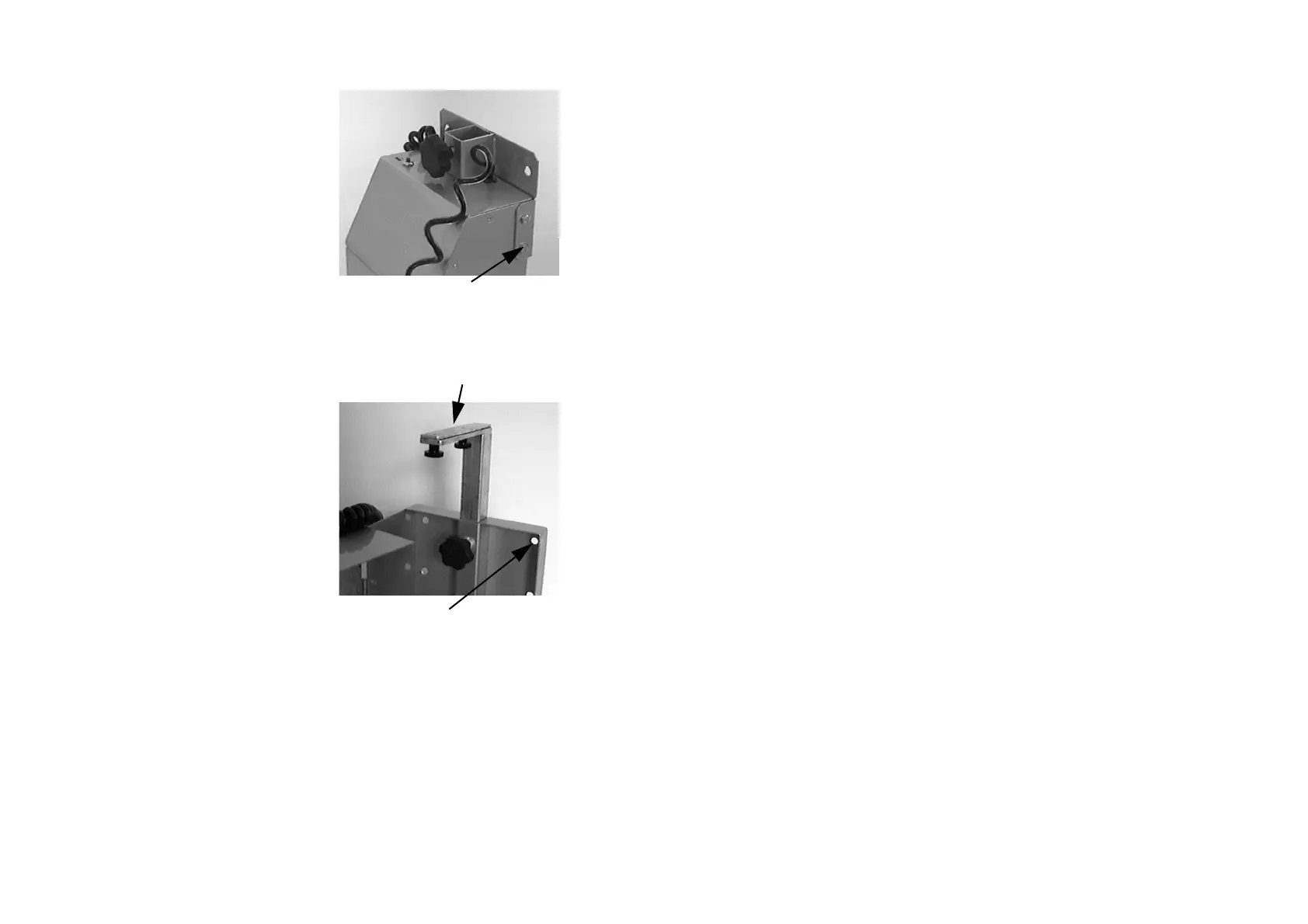

Mounting Bolts
Vertical Mounting Bracket
Fixing Holes
