PSS5000/INGU/805799/09 7 of 27
PSS 5000 – Installation Guide
2 Installing the PSS 5000 Forecourt Controller
2. Secure the PSS 5000 to the wall using the mounting lugs on the cabinet.
The mounting lugs are located on the sides of the Standard cabinets.
Note: Use screws or bolts that are capable of supporting the weight of
the cabinet and its contents.
3. Loosen the screws securing the door so that you can open the door and
access the inside of the cabinet.
You are now ready to continue to the next step in the process.

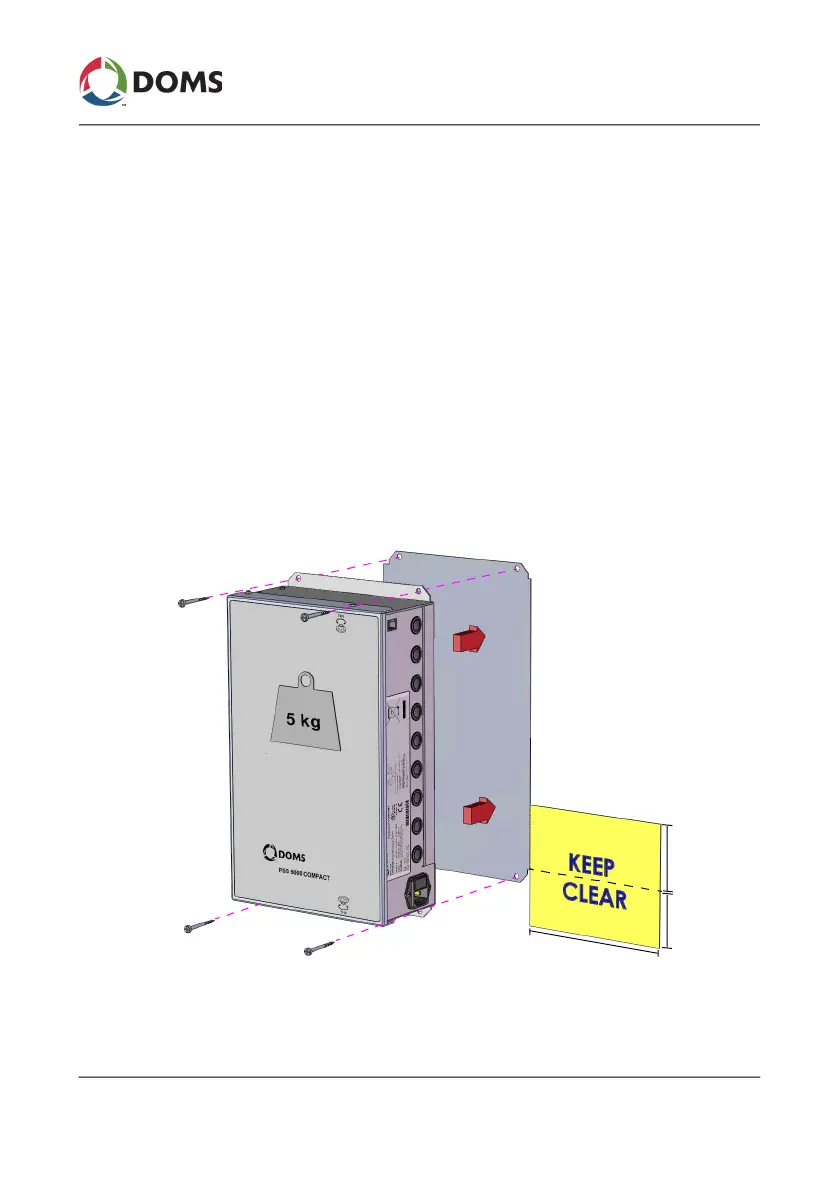

To mount the PSS 5000 Compact cabinet
This procedure describes how to mount the PSS 5000 compact cabinet.
Note: Only install the PSS 5000 in the prescribed environment.
1. Find a spot where there is enough space for both the cabinet and the ca-
ble connections located to the right and below the cabinet.
2. Secure the PSS 5000 to the wall using the mounting lugs on the cabinet.
The mounting lugs are located above and below the Compact cabinets.
70 mm
70 mm
170 mm
