9150-065-M-5-18
31
E
L
FULL OPEN
DOORKING
4602-010
NC
NO
1
2
3
4
5
6
7
8
9
10
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

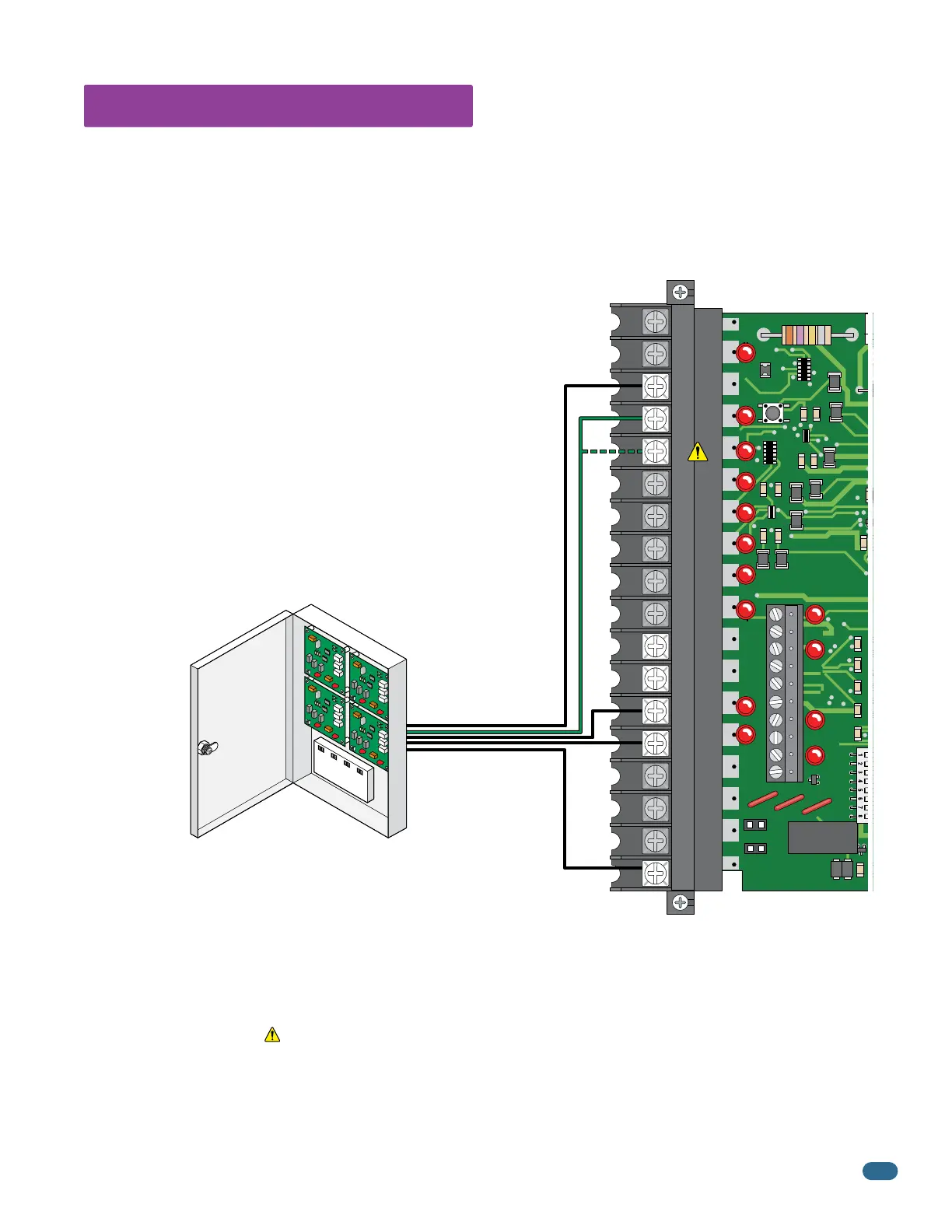

5.3 Auxiliary Device Wiring
Gate Tracker
(Quad Box Shown)
DoorKing Access Control System (Model 1833, 1835, 1837 or 1838)
tracker system can be connected.This system can keep track of gate
operator
cycle count, shorted inputs, loop detector problems, any forced entry
attempts, if the gate has struck anything during the open or close cycle,
power interruptions, etc.
For more detailed information refer to the Tracker Installation and Wiring
Manual, DoorKing P/N 2358-065.
Terminal #4 (Full open) or #5 (14-Ft. open) required only if the tracker
board will activate the gate operator. Refer to the manual 2358-065 for
detailed information.
