8.2 Manual Gate Operation
Caution: NEVER attempt to manually operate the gate until you have VERIFIED
that power to the gate operator has been SHUT-OFF!

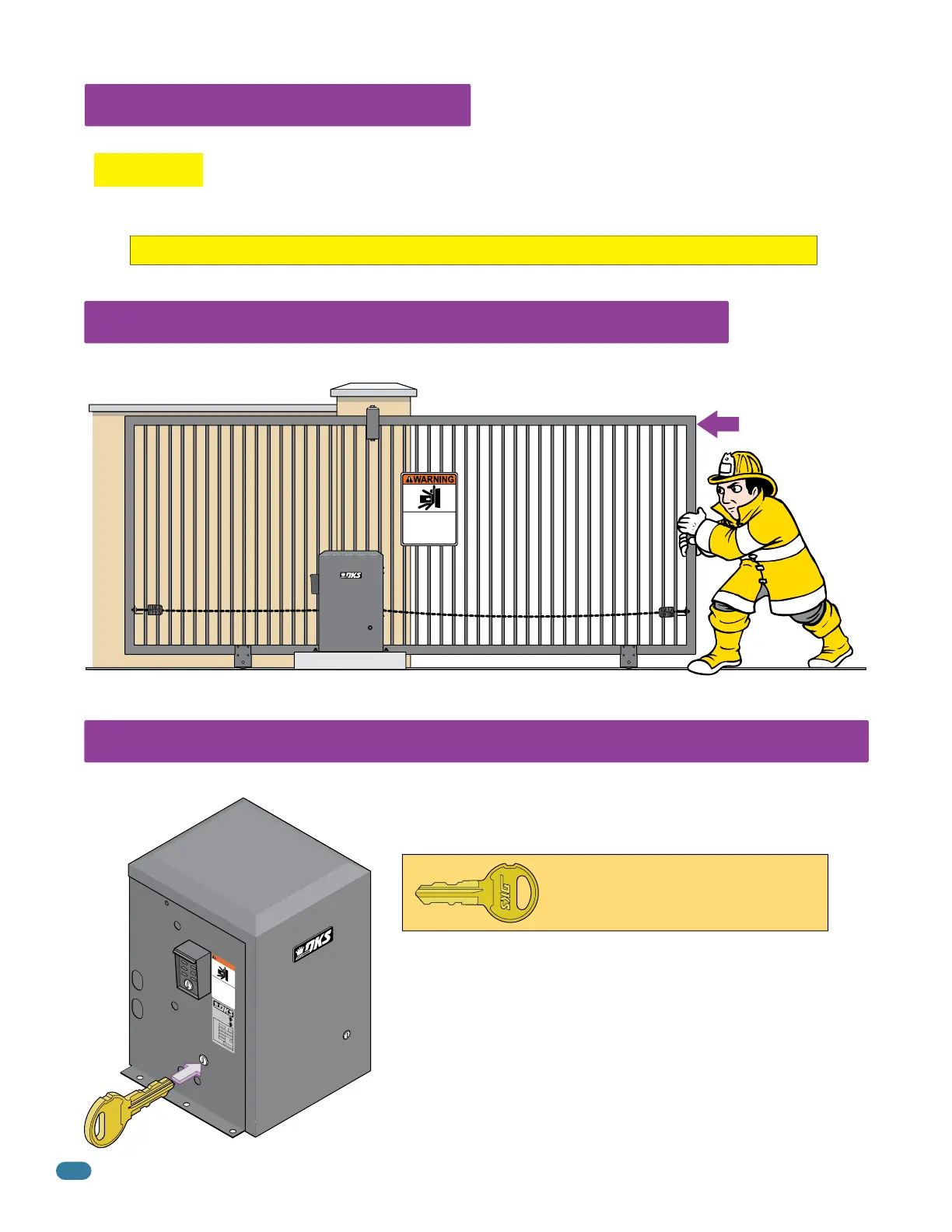

Factory Equipped FAIL-SAFE Manual Operation
Optional Owner Installed FAIL-SECURE Manual Operation
Gate can be IMMEDIATELY manually operated (pushed open) during a power outage. NO Key is required.
Push on end of gate
A “STRONG”
Push is
Needed!
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
Please read SECTION 6 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
Gate CANNOT be manually PUSHED open until FAIL-SECURE Lock has been UNLOCKED.
