Operator’s Station and Monitoring Systems
Read and understand the “Safety”, “Operation” and “Maintenance” sections before operating the lift truck.

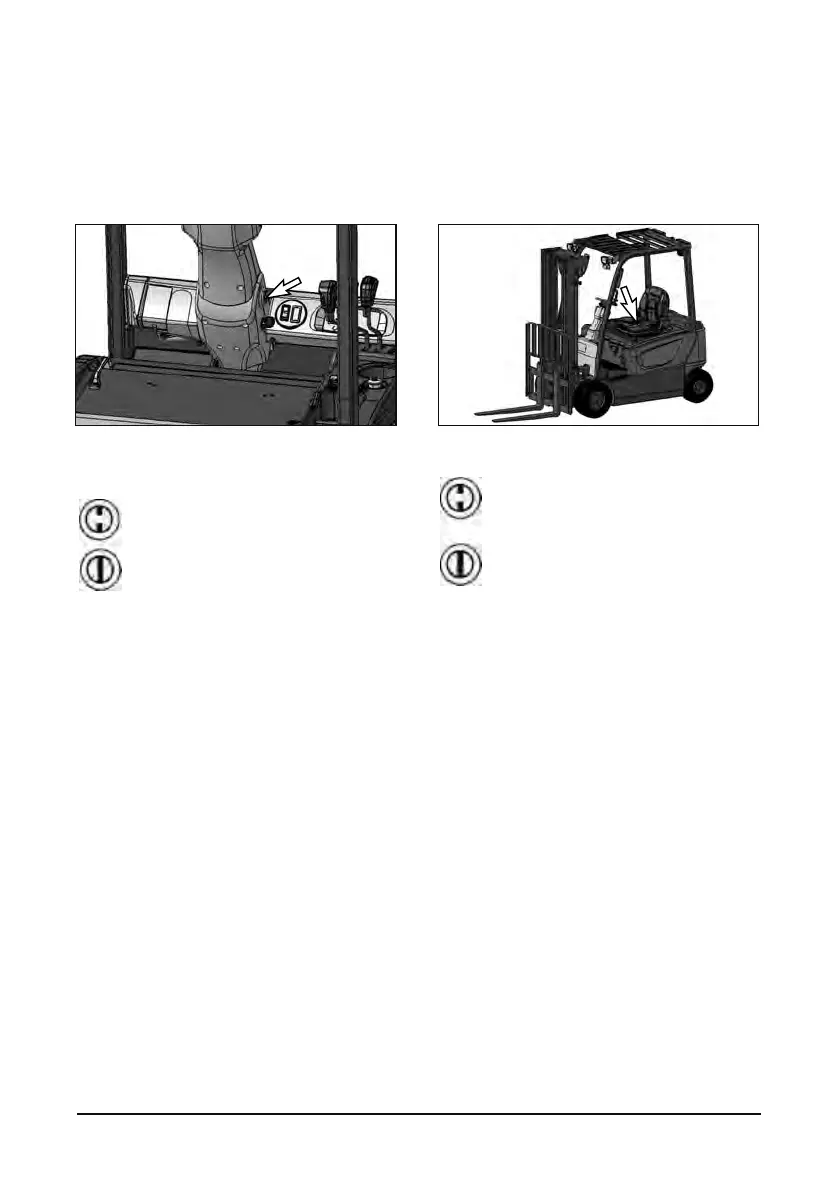

Key Switch
The key switch is located on the right side of the
steering column.
OFF - Turn the key switch to OFF (1) to
disconnect the electrical circuits.
ON - Turn the key switch the ON (2) to
connect the electrical circuits. If the key
switch is left in the ON position when the
operator leaves the lift truck, the LCD display will
show a flashing “EE”.
The power steering pump motor is activated when
the key switch is turned to ON and the seat switch
is closed.
NOTE: If the directional control forward/reverse
switch is mounted on the left side of the lift
lever, and when no operation lever is
operated for about 6 seconds, power supply
to the power steering pump motor will be
cut-off. Then, if any one of the operation
levers is operated, the power steering pump
motor will restart.
Seat Switch
the seat switch is located under the operator’s seat.
OPEN - When the operator’s seat is in the
up position the electrical circuits are
disconnected.
CLOSE - When the operator’s seat is in
the down position(operator seated) the
electrical circuits are connected.
The power steering pump motor is activated when
the key switch is turned to ON and the seat switch
is closed.
