Doosan D120 - Wheel End Service Procedures; Wheel End Component Identification

To Next Page

To Previous Page

Power Train Disassembly & Assembly

Wheel End

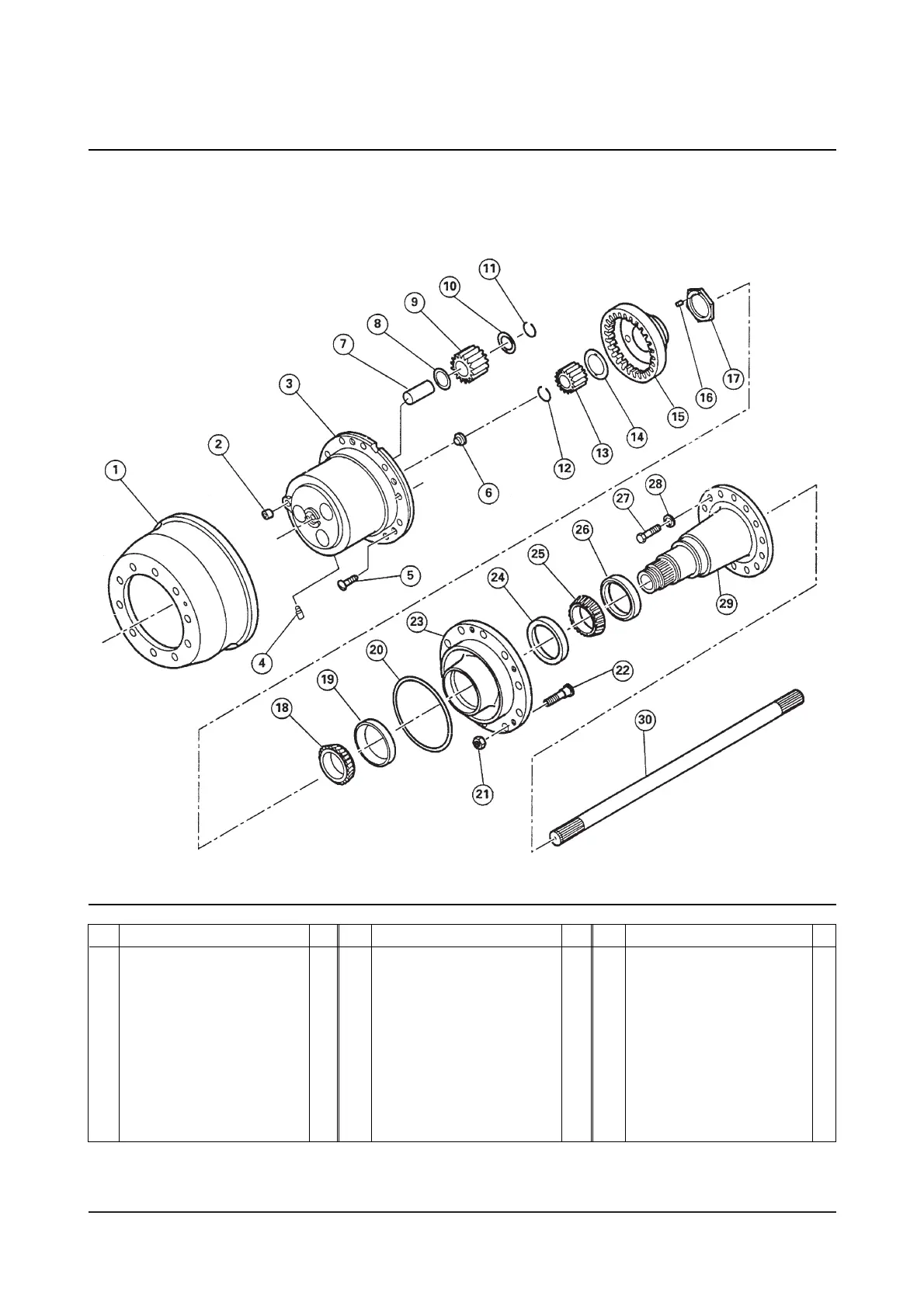

Item Description Q’ty Item Description Q’ty Item Description Q’ty

1 Brake Drum 1

2 Magnetic Fill/Drain Plug 1

3Planetary Spider Assembly 1

4 Set Screw 3

5 Machine Screw 5

6 Thrust Button 1

7Pinion Shaft Assembly 3

8Outer Thrust Washer 3

9Planetary Pinion 3

10 Inner Thrust Washer 3

11 Snap Ring 3

12 Snap Ring 1

13 Planetary Sun Gear 1

14 Thrust Washer 1

15 Planetary Ring Gear 1

16 Adjusting Nut Dowel Pin 1

17 Adjusting Nut Assembly 1

18 Outer Bearing Cone 1

19 Outer Bearing Cup 1

20 O-Ring 1

21 Wheel Nut 10

22 Wheel Stud 10

23 Hub and Cup Assembly 1

24 Inner Bearing Cup 1

25 Inner Bearing Cone 1

26 Oil Seal Assembly 1

27 Cap Screw (3/4-10x2.75) 13

28 Washer 13

29 Spindle Assembly 1

Axle Shaft (Left-Hand, Right-Hand)

Axle for D100/120 Truck
