Vehicle Systems Disassembly & Assembly 30
Steering Unit
Remove & Install Steering Unit
Start By:
a. Remove covers from steering wheel group
.
To prevent personal injury be sure pressure in
the hydraulic system has been released before
disconnecting any hydraulic lines. Slowly
loosen the cap of the hydraulic tank to release
any pressure in the tank. Be cautious of hot
hydraulic oil when any lines are disconnected
in the hydraulic system.
NOTE: Identify and mark all hydraulic hoses for
purposes of reassembly.

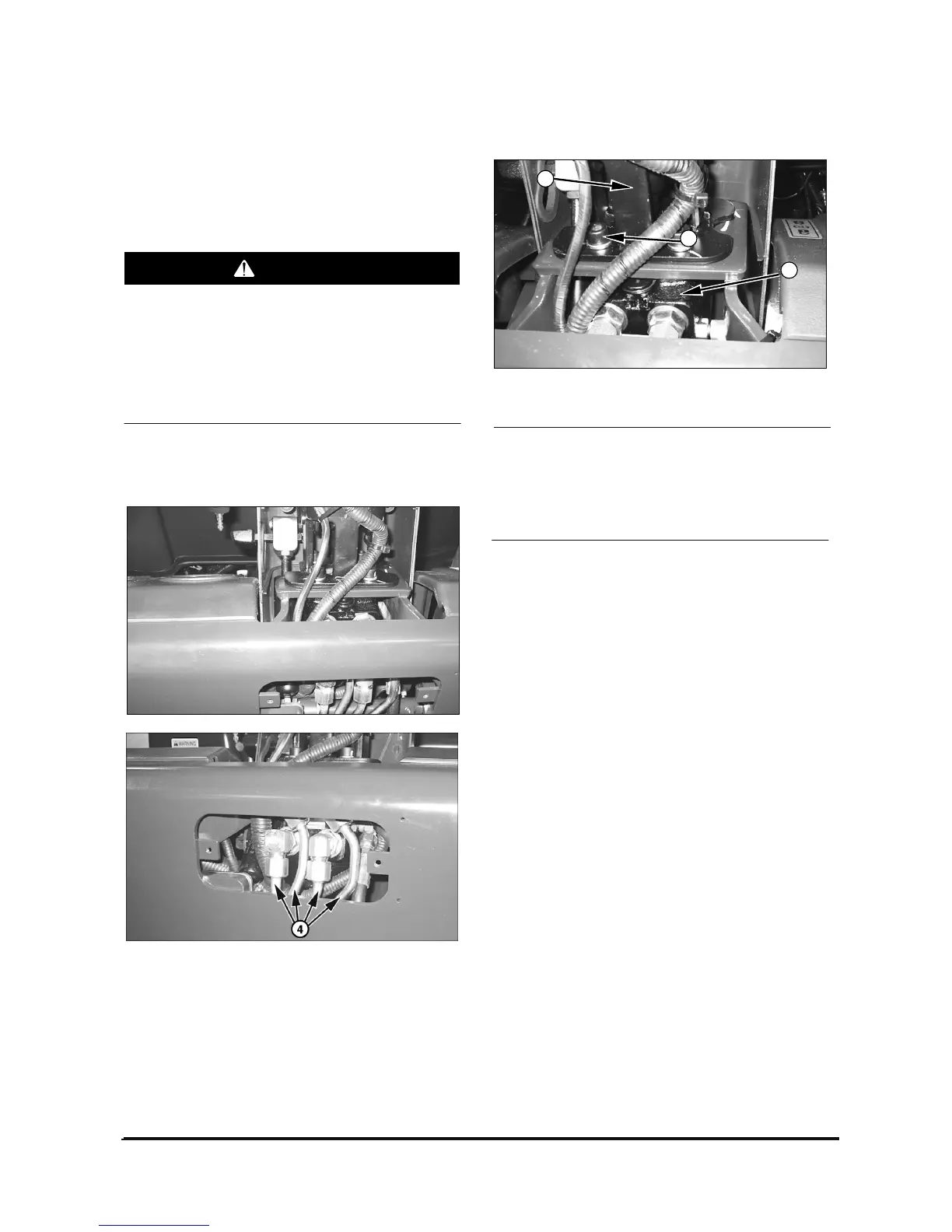

1. Disconnect (4) tubes and (1) hose assembled to
steering unit.
2. Remove four bolts (1).
NOTICE
Steering unit (2) and column (3) can separate after
bolts (1) have all been removed, causing unit (2) to
fall. To avoid damaging components, support the
steering pump while removing bolts (1).
3. Support steering unit (2) while removing the
remaining two bolts (1). Remove steering unit (2).
4. Install the steering unit in the reverse order of
removal.
End By :
a. Install the cover on steering wheel group.
WARNING
1
3
2
To Next Page
