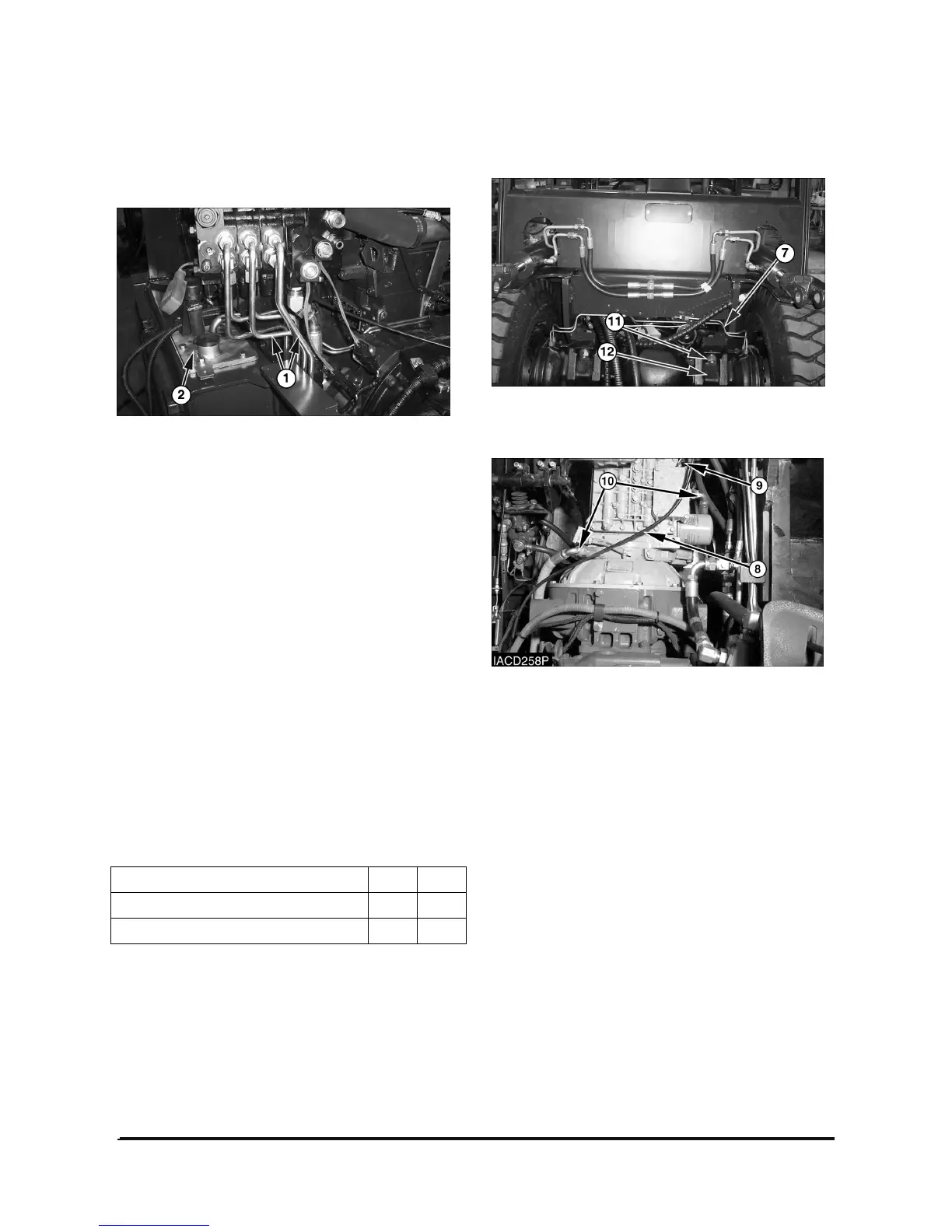

Vehicle Systems Disassembly & Assembly 57
Hydraulic Oil Filter Assembly
Remove And Install Hydraulic Oil Filter
Assembly
1. Disconnect four oil lines (1).
2. Remove hydraulic tank cover (2).
3. Remove the oil filter from hydraulic tank cover.
NOTE: The following steps are for installation of the
hydraulic oil filter assembly.
4. Install the hydraulic oil filter assembly in position
on hydraulic tank cover.
5. Install the hydraulic tank cover (2) with six bolts
and washers.
6. Connect four oil lines (1).
7. Fill hydraulic oil tank to the correct level. See the
Operation and Maintenance Manual.
Drive Axle and T/M
Remove & Install Transaxle
Tools Needed A B
Stand 2
Link Bracket 1
Start By :
a. Remove mast *
b. Remove floor plate.
* Refer to the mast systems Disassembly &
Assembly section for further information.
1. Raise the machine until tires are approximately 1
to 2 inches off of the floor. Position the machine
on tooling (A).
2. Disconnect brake tubes (7) and parking cables
from drive axle.
3. Disconnect accel cable (8).
4. Disconnect wires (9) from solenoid valves and
wire from transmission temperature sender.
5. Disconnect two cooling hoses (10).
6. Loosen bolts (11) and remove drive axle
mounting bracket (12).
