Vehicle Systems Disassembly & Assembly 46

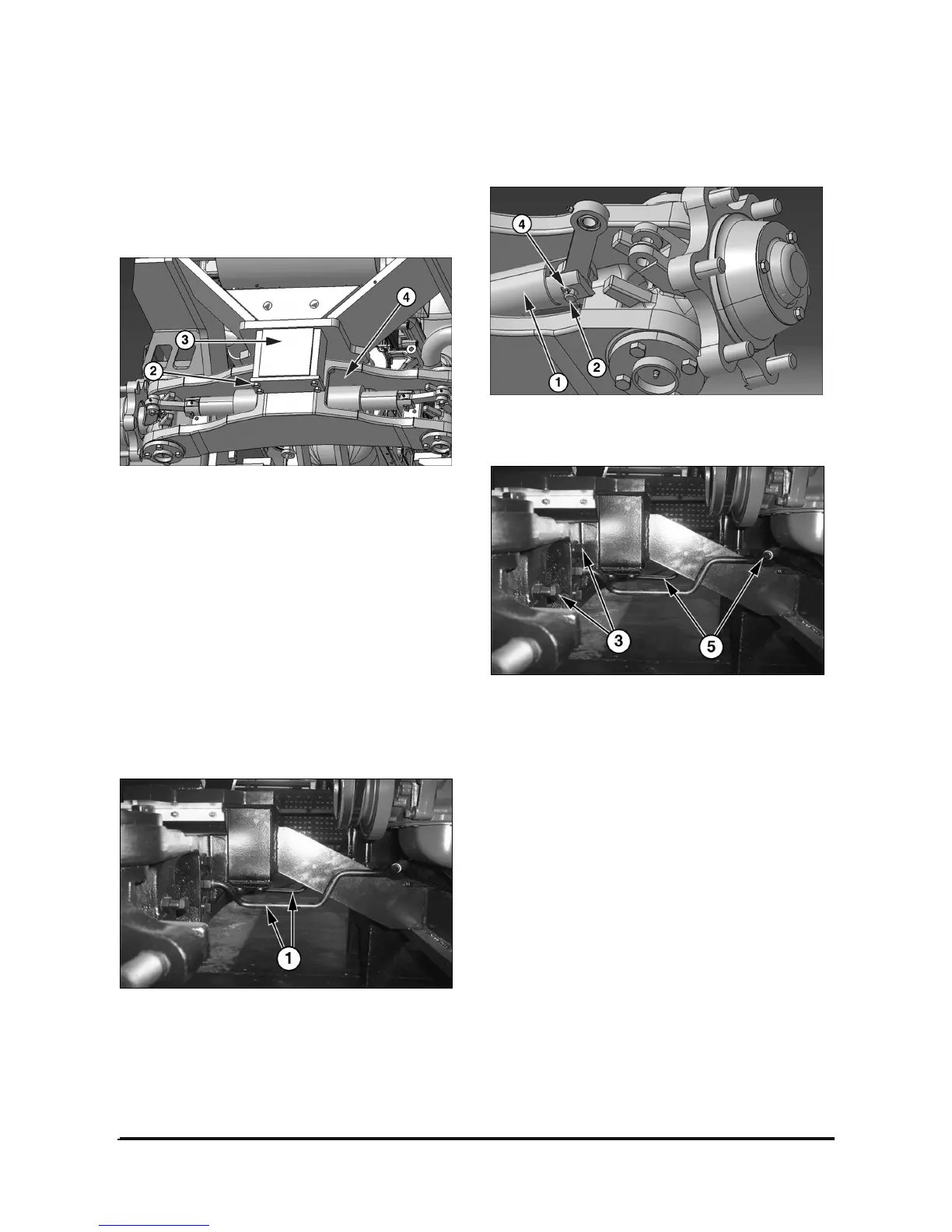

6. Remove bolts (2) and mounting caps (3) from the
steer axle.
7. Remove steer axle (4). The steer axle weighs180
kg (400 lb).
NOTE : Use the following steps to install the steer
axle.
8. Use a floor jack to position steer axle (4).
NOTE: Use bolts (2) and cap (3) to align steer axle
(4) with the mounting bosses while raising steer axle
(4) into position with the floor jack.
9. Seat steer axle (4) as follows:
a. Install bolts (2) through cap (3) and into the
mounting bosses approximately two bolt
threads.
b. Use the floor jack to raise steer axle (4) into the
mounting boss.
c. Tighten bolts (2).
11. Connect hoses (1).
Steering Cylinder
Remove & Install Steering Cylinder
1. Remove the split (4) and pin (2) from the tie rod at
each end of steering cylinder (1).
2. Disconnect two hoses (5).
3. Remove four bolts (3). For installation purposes,
the torque for bolts (3) is 240
± 30 N•m (178 ± 22
lb•ft).
4. Remove steering cylinder (1).
5. Install steering cylinder (1) in the reverse order of
removal.
