Vehicle Systems Disassembly & Assembly 43
Tie Rods
Remove And Install Tie Rods
Floor Jack 1
Drive Set 2
Start By :
a. Remove steer wheels.
NOTE: The procedure to remove and install the tie
rod is the same for each steer wheel.

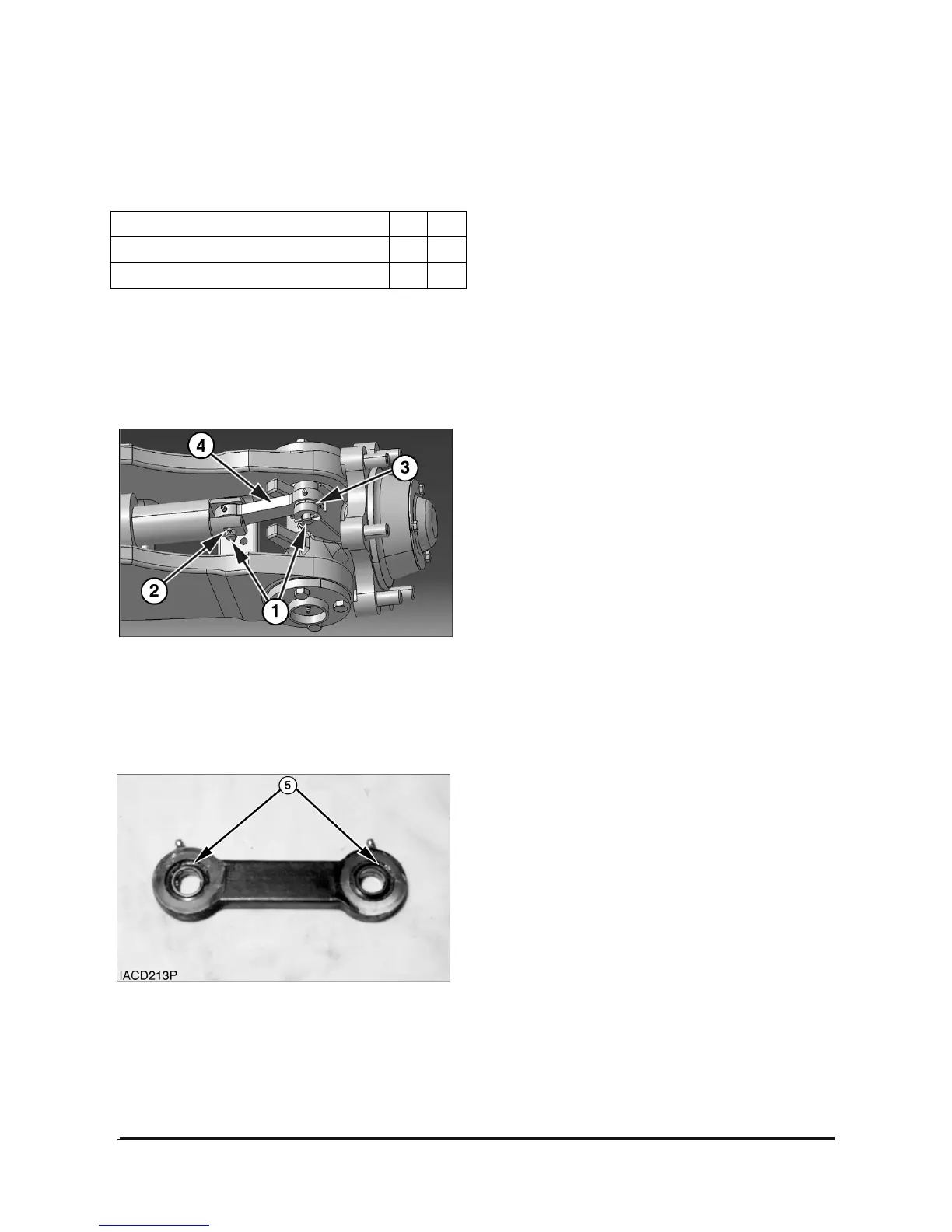

1. Support the steer axle with a floor jack (A).
Position the wheel to gain access to the tie rods.
2. Remove two split pins (2). Remove pins (1).
3. Remove tie rod (4) and dust seals (3).
4. Use tooling (B) to remove bearings (5) from the
tie rod.
5. Use tooling (B) to install new bearings (5) in the
tie rod.
6. Install the tie rod in the reverse order of removal.
