Vehicle Systems Disassembly & Assembly 52
Center section

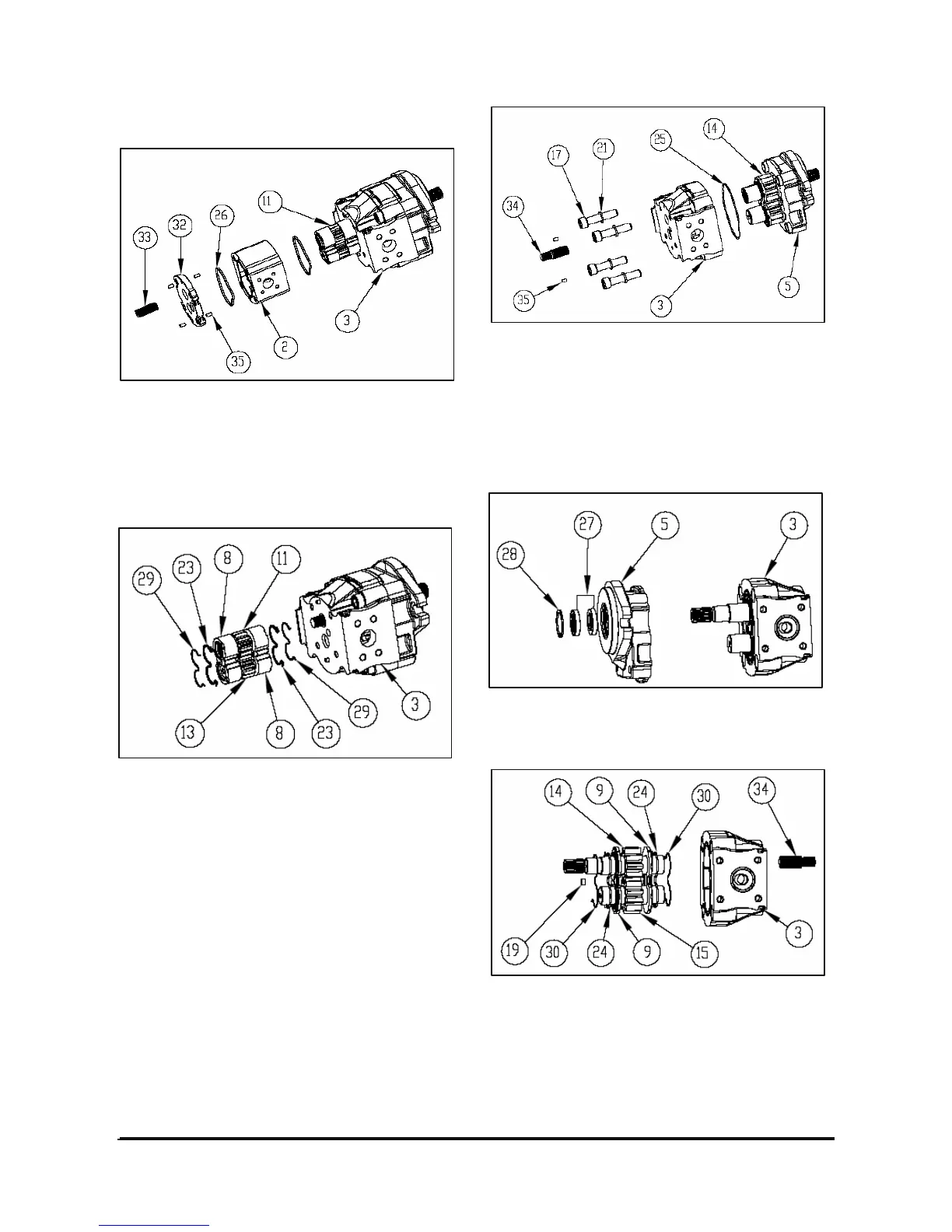

1. Remove through shaft (33) from driving shaft (11).
2. Remove the flange(32) and the working section
(2) with dowel pin (35).
Related parts
Square ring(26)
3. Remove driving gear (11), driven gear (13) with
thrust plate parts (8, 23, 29), keeping gear as
straight as possible, from first working body(3).
Related parts
Back-up ring (29), O-ring (23), Thrust plate (8).
4. Remove through shaft(34) from driving shaft(14).
5. Loosen and remove the clamp bolt(17) with
washer(21), and then remove the working
section(3) from mounting flange(5)
Related parts. Square ring(25), Dowel pin (35)
Front section
1. Remove the snap-ring (28) and shaft seal (27),
And then remove mounting flange (5) from
working section (3).
2. Remove driving gear(14), driven gear(15) with
through shaft(34) and thrust plate parts(9,24,30)
from the working body(3), keeping gear as straight
as possible,
Related parts
Plug (19), Back-up ring (30), O-ring (24), Thrust
plate (9).
