Operating & Maintenance Manual DRAWBAR NOTICE
8 Book: 46551819 (2-11-2011) Rev B
DRAWBAR NOTICE (Important)
This machine may have been shipped from
the factory with the drawbar positioned
upright.
To Convert From Shipping Position to
Towing Position requires the following
tools:
Ratchet
13mm socket to fit ratchet
Torque wrench set to 68 foot pounds (9.4 kg-
meters)
16mm socket to fit torque wrench
12 inch extension for torque wrench
Hardware Included:
(4) 12mm bolts with pre-applied thread lock
(4) Large Washers
(2) 8mm Taptite Bolts
(2) Washers
(2) Safety Chains
1. Remove hardware box from compressor
toolbox.
2. Open box and remove the bag containing
hardware, safety chains and assembly
instructions.
3.Using the jack, raise the front of the unit so
that the legs are approximately 1” above the
ground and support front of unit.
4.Remove the temporary retaining bolts from
both sides of the frame at the drawbar
connection (See Figure 1).
5.Carefully lower drawbar to the Level
Position.
6.Install the four bolts (with pre-applied
thread lock) and four large washers to the
four points inside the enclosure and torque to
68 ft. lbs.(9.4kg-m) (See Figure 2).
7.Install safety chains by sliding the second
link of one chain into the slot in drawbar
plate. Fasten chain to plate using taptite and
washer. Repeat for the other chain. (See
Figure 2).
8. Support drawbar at the pintle eye. Pull the
pin out of the jack located at the front of the
enclosure. Remove the jack by sliding it off
the mounting tube. Relocate and install the
jack to the mounting tube on the side of the
drawbar.

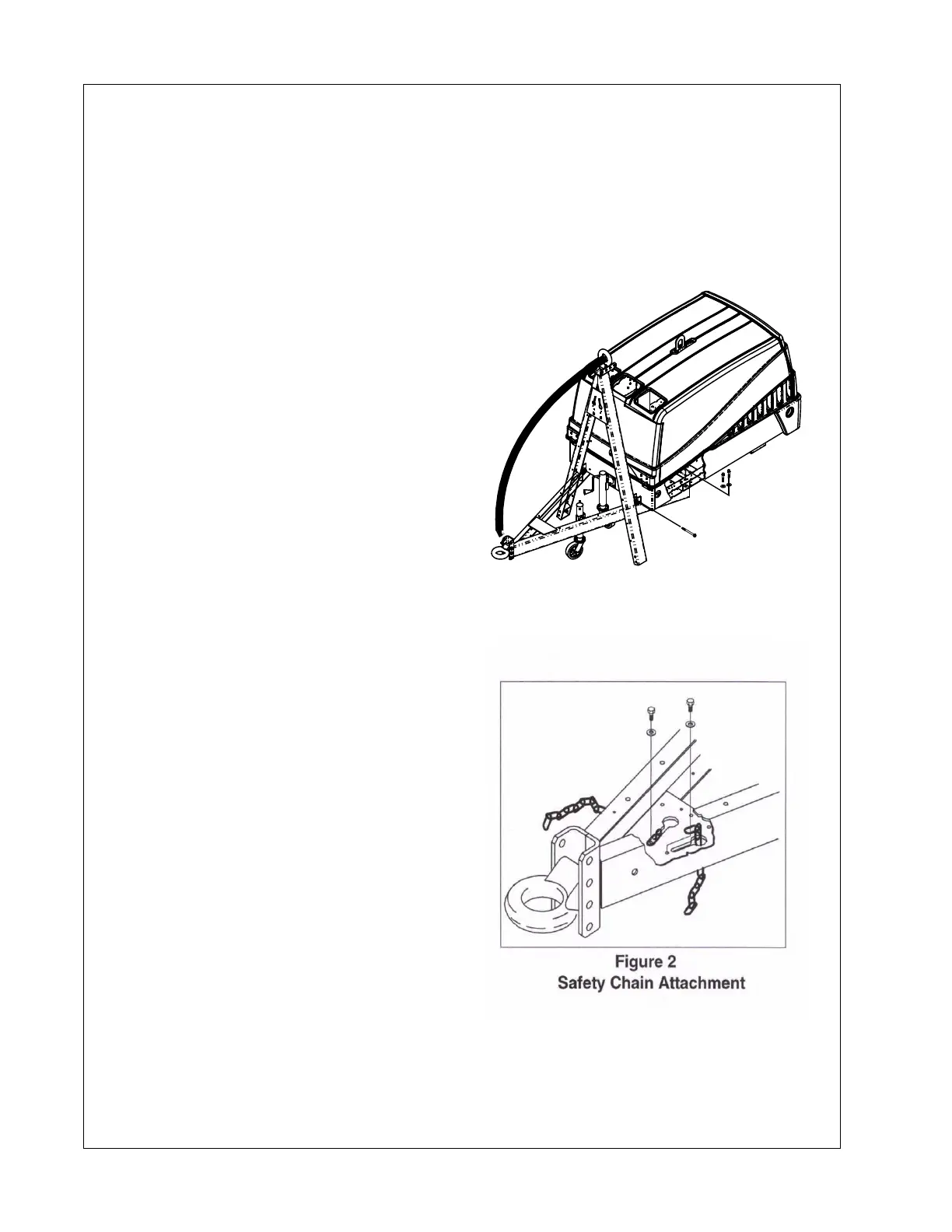

Figure 1
Drawbar Position
