DE08TS Diesel Engines Maintenance

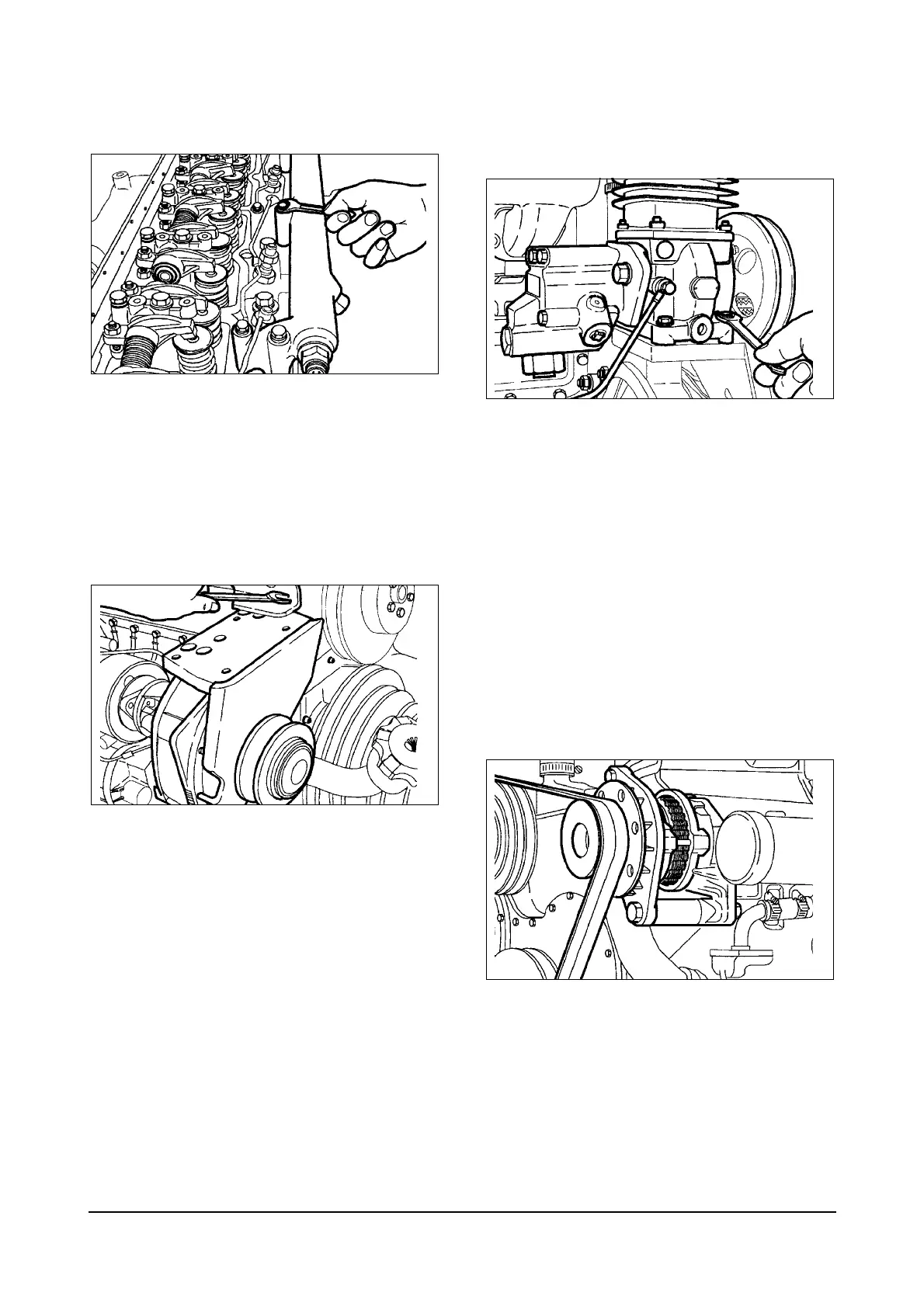

Cooling water pipe
1. Attach a new gasket on the cylinder head.
2. Install the cooling water pipe and tightening the
fixing bolt on it.
Idle pulley
1. Assemble the air compressor (if equipped) mount-
ing bracket on the timing gear case.
2. Install the idle pulley on the air compressor (if
equipped) mounting bracket and tightening the fix-
ing bolt.
Air compressor (if equipped) &
power steering pump
1. Couple the power steering oil pump to the air
compressor with the driving dog engaged.
2. Insert the O-ring coated with grease into the oil
outlet of the air compressor.
3. Place the air compressor on the mounting bracket
carefully and tighten the fixing bolts to the speci-
fied torque.
(Carefully damage the O-ring)
4. Assemble the oil feed pipe.
Alternator
1. Install the alternator mounting bracket and sup-
porter to the cylinder block, then tighten the fixing
bolts.
2. Install the alternator with fixing bolts to the mount-
ing bracket.
65
