OP001763
5-3
Transportation

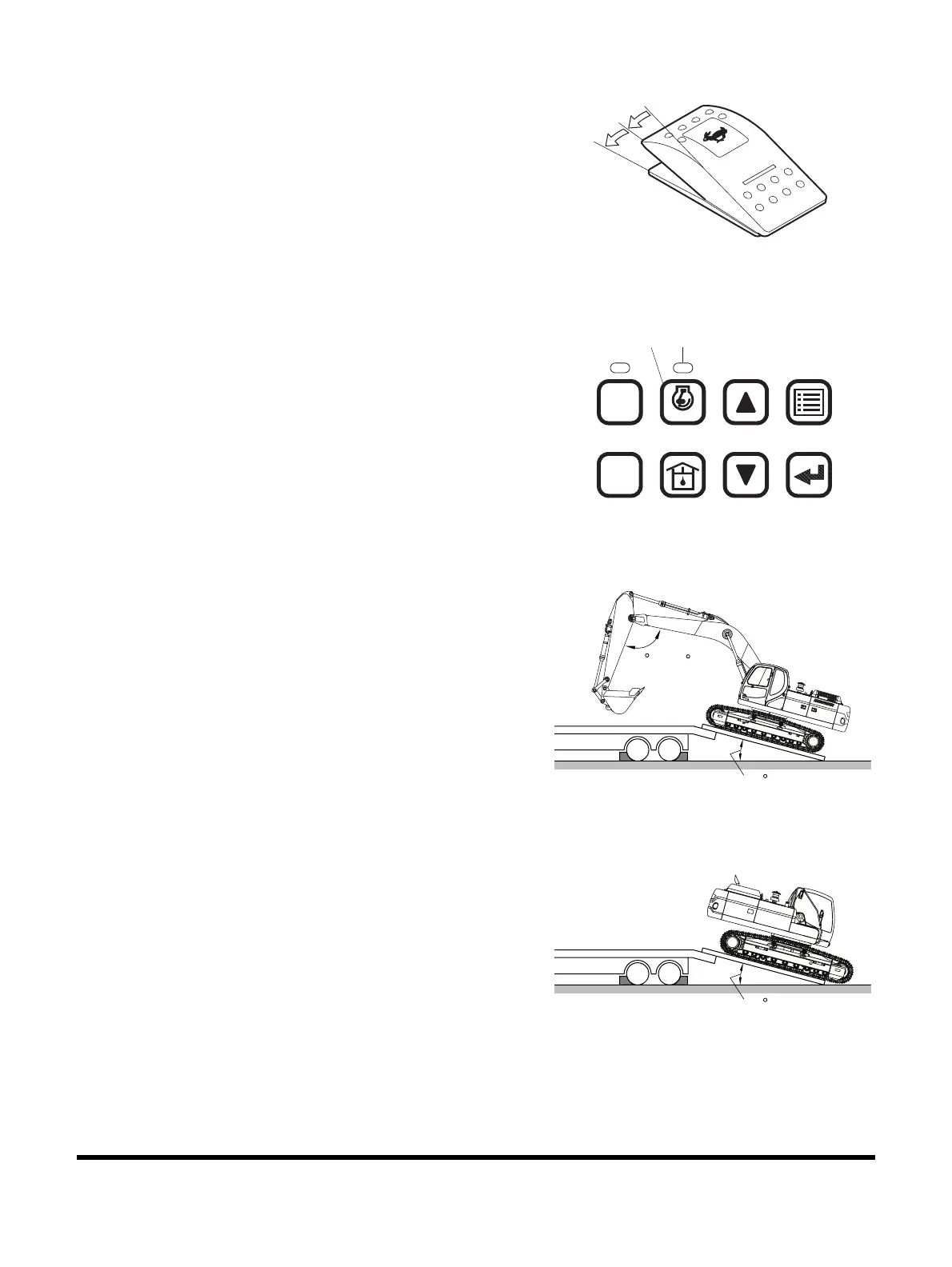

4. Set the travel speed selector switch to "O" (OFF) position.
See
Figure 3.
5. Turn "OFF" auto idle selector button (1, Figure 4). The
indicator light (2) will not be lit.
6. Set engine speed to "LOW IDLE."
7. If the machine is equipped with work equipment, set the
work equipment at the front, and travel forward to load it.
8. The unit does not require disassembly for normal
over-the-road transportation. If the boom and arm need to
be removed, the counterweight will place more weight on
the rear of the machine. Make sure to back the excavator
onto the trailer so the counterweight end of the excavator is
positioned on the ramp first. See
Figure 6.
FG000023
O
I
II
Figure 3
1
5
POWER
3
2
6
7
AUTO
4
ESC
8
1
2
FG014212
Figure 4
FG000325
15
90 ~ 110
Figure 5
FG000326
15
Figure 6
To Next Page
