OP001763Transportation
5-4

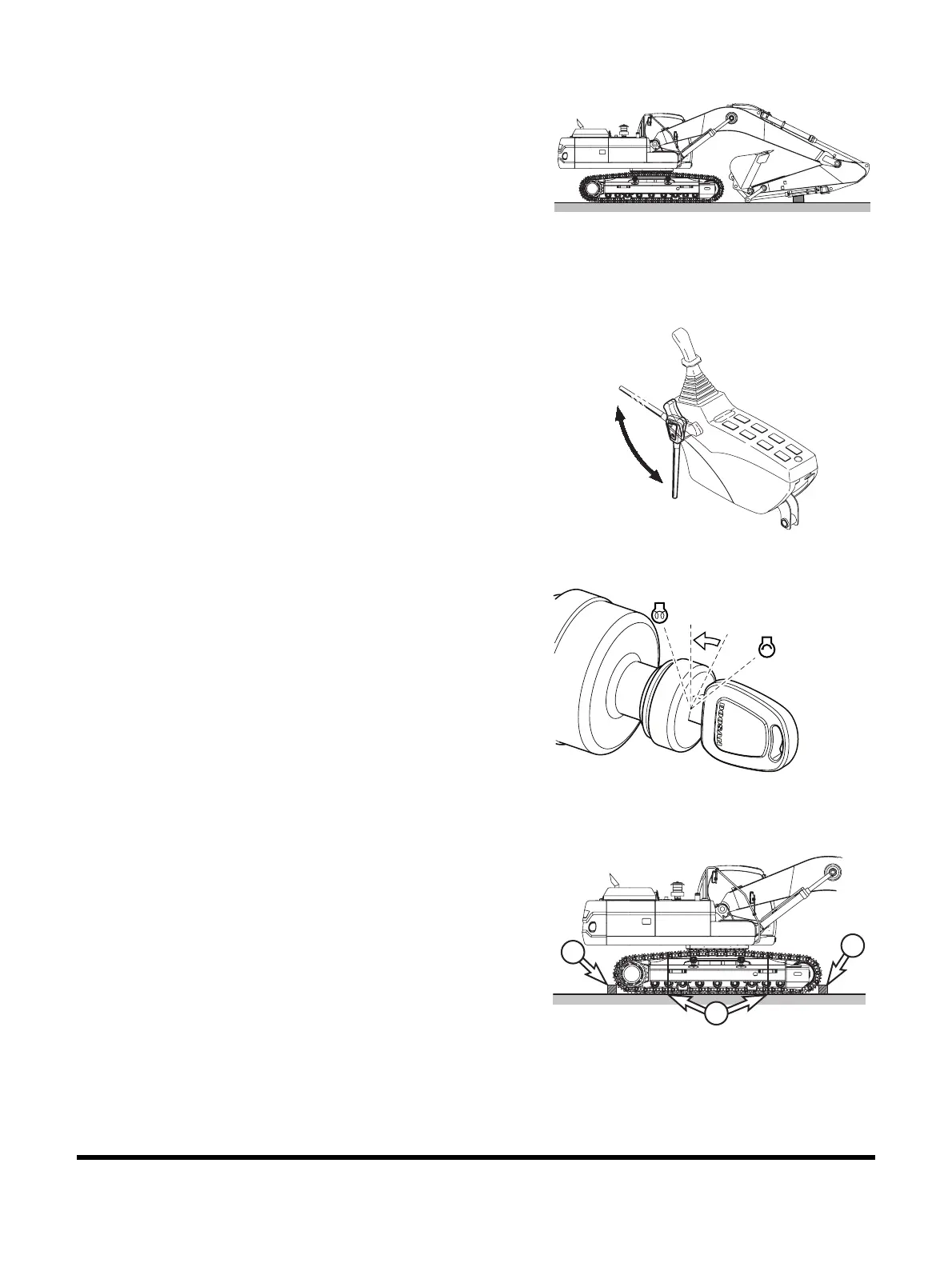

9. Extend bucket and arm cylinders to maximum length and
then lower the boom slowly.
10. Set safety lever on "LOCK" position.
11. Shut down engine by turning key to "O" (OFF) position
(
Figure 9).
12. Remove key from starter switch.
13. Make sure to secure the excavator onto the trailer before
transporting. Place blocking (1,
Figure 10) in front of and
behind each track. Tie front and rear (2, Figure 10) and tie
down point (3, Figure 10) on lower frame with wire cable as
required by local transportation laws.
14. Refer to the Dimensions for Transportation table and
drawing for overall machine height and width
measurements. Make sure to position the excavator as
shown. If not transported in this position, the height
measurements may be different.
FG000327
Figure 7
FG001091
Unlock
lock
Figure 8
FG001372-3
O
I
Figure 9
FG000334
1
1
2
Figure 10
To Next Page
