- 68 -
LP Engine G430(3.0L) Igntion System

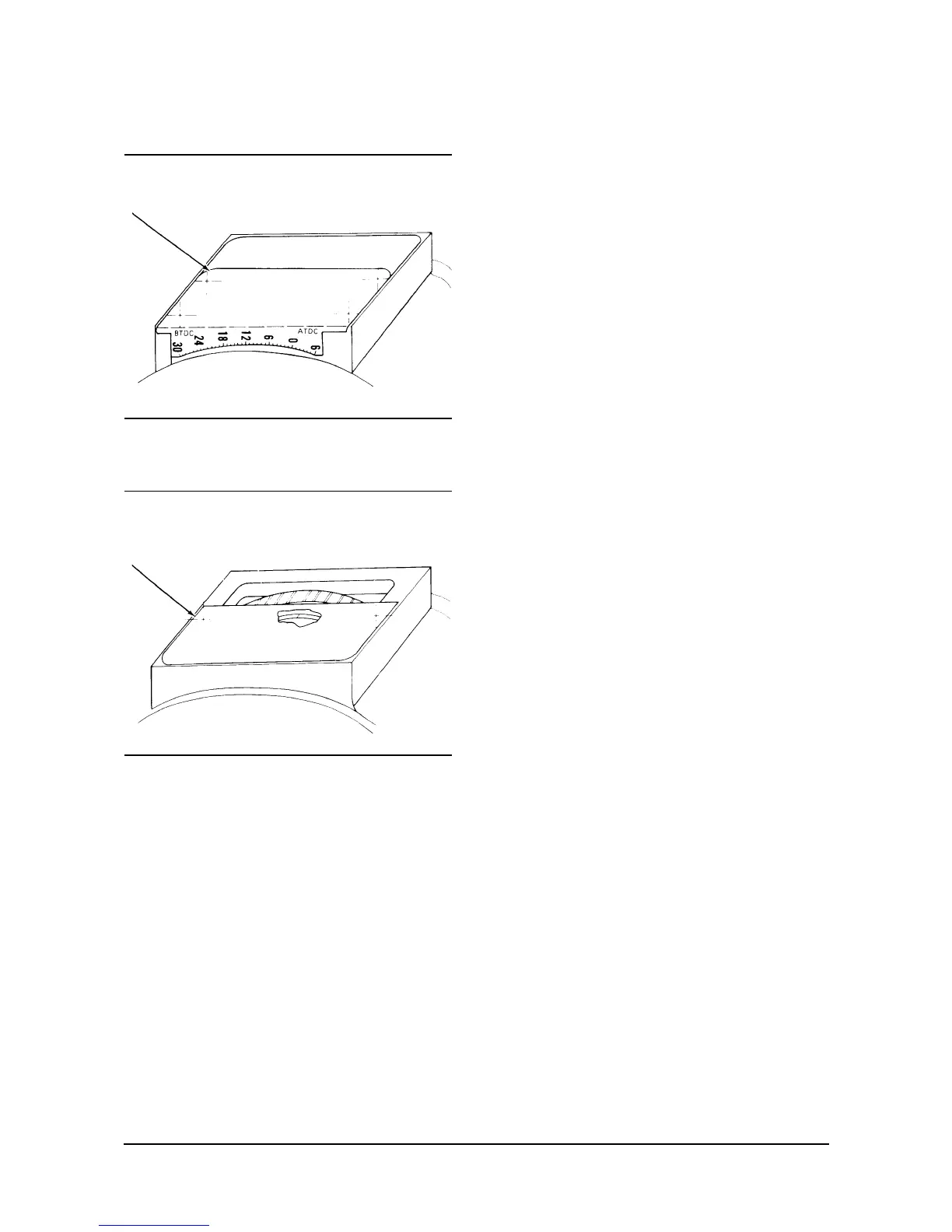

Timing Plate In Stored Position
(6) Timing Plate.
Timing Plate Rotated 180°
(6) Timing Plate.
3) Rotate timing plate (6) 180° and mount it on the
converter housing again, using the other mounting
holes on plate (6). When plate (6) is mounted, the
timing marks should be close to the flywheel as
shown.
4) Rotate engine and align the timing mark of engine
crankshaft balancer to zero degree position of
timing tab near crankshaft balancer (figure 6-30).
5) Note the timing mark on the flywheel indicates
which position of timing plate(6). If timing mark does
not indicate zero degree position of timing plate(6),
the correct zero position should be marked on the
timing plate.
IDES096S
IDES097S
6
6
