dormakaba BTS80 EMB/D,E,F Installation Instructions
08059411 03-2021BTS80 EMB Closers
3
Closer
Pivot
Arm

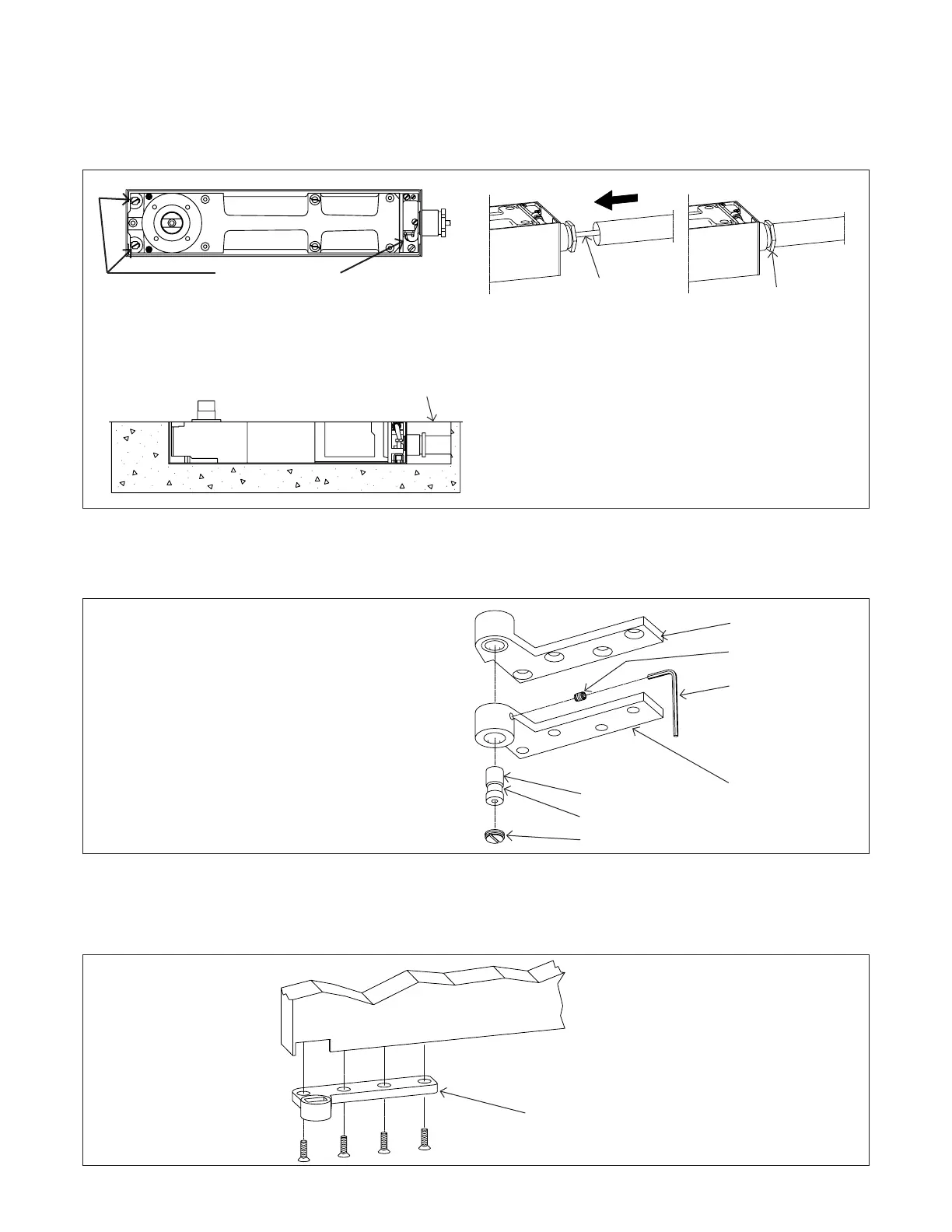

. Install closer
1 Installation
Fig.
1.1.1 Center closer in cement case.
1.1.2 Tighten fastening screws.
NOTE: Top of cement case must be flush with finished floor.
NOTE: Cement case must be level and installed parallel to frame.
NOTE: Spindle center line must be accurately located.
NOTE: Grout cement case in place.
Fastening screws
Finished floor
. Install top pivot
Fig.
1.2.1 Remove set screw, cover cap, pivot pin.
1.2.2 Install top pivot.
1/8” hex key
. Install bottom arm in bottom of door ()
Fig.
Bottom of door
Cover cap
Undercut
Set screw
Frame portion
Door portion
Pivot pin
Bottom arm
1.1.3 Install closer, cement case, and conduit in floor.
1.1.4 Pull solenoid wire through conduit. (Conduit
supplied by others.)
Conduit
Solenoid wire
Conduit
connector
