Dormakaba BTS80 EMB/D - Bottom Arm (75323) Template

dormakaba BTS80 EMB/D,E,F Installation Instructions
08059411 03-2021BTS80 EMB Closers
6
Templates
Fig.

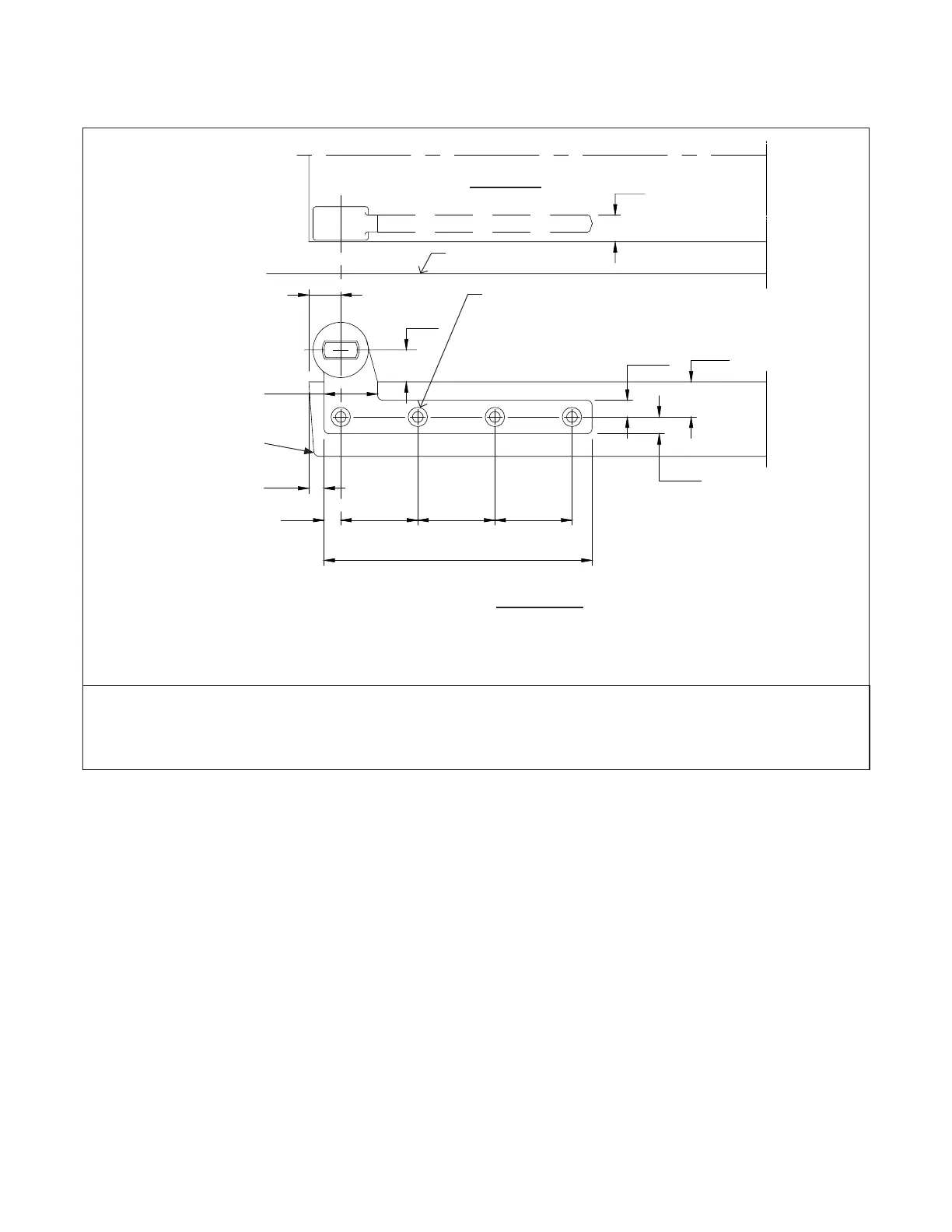

. Bottom arm () template
NOTES:
1. Do not scale drawing.
2. Dimensions are in inches/[mm]
3. Right hand door shown.
4. Bevel heel edge of door 1/8” in 2”.
5. All necessary reinforcement for arm by others.
Front view
For 1/4-20 machine screws use No.7 drill.
For No.14 wood screws use 5/32” drill.
Four (4) holes in door.
3/4”
[19]
3/4”
[19]
Finished floor
6-3/8”
[162]
1-3/8”
[35]
3/16” R.
5/16”
[8]
7/16”
[11]
1-13/16”
[46]
1-13/16”
[46]
1-13/16”
[46]
13/32”
[10]
13/32”
[10]
13/16”
[21]
5/8”
[16]
Bottom view
ITEM No. 75323
3/4” OFFSET STANDARD BOTTOM ARM
FOR 3 HR. RATED DOORS
FOR USE WITH BTS 75/80 FLOOR CLOSERS
BTS-50
