Dormakaba ED100 Operating & Maintenance Manual

6
SWING DOOR LOG BOOK
User guide

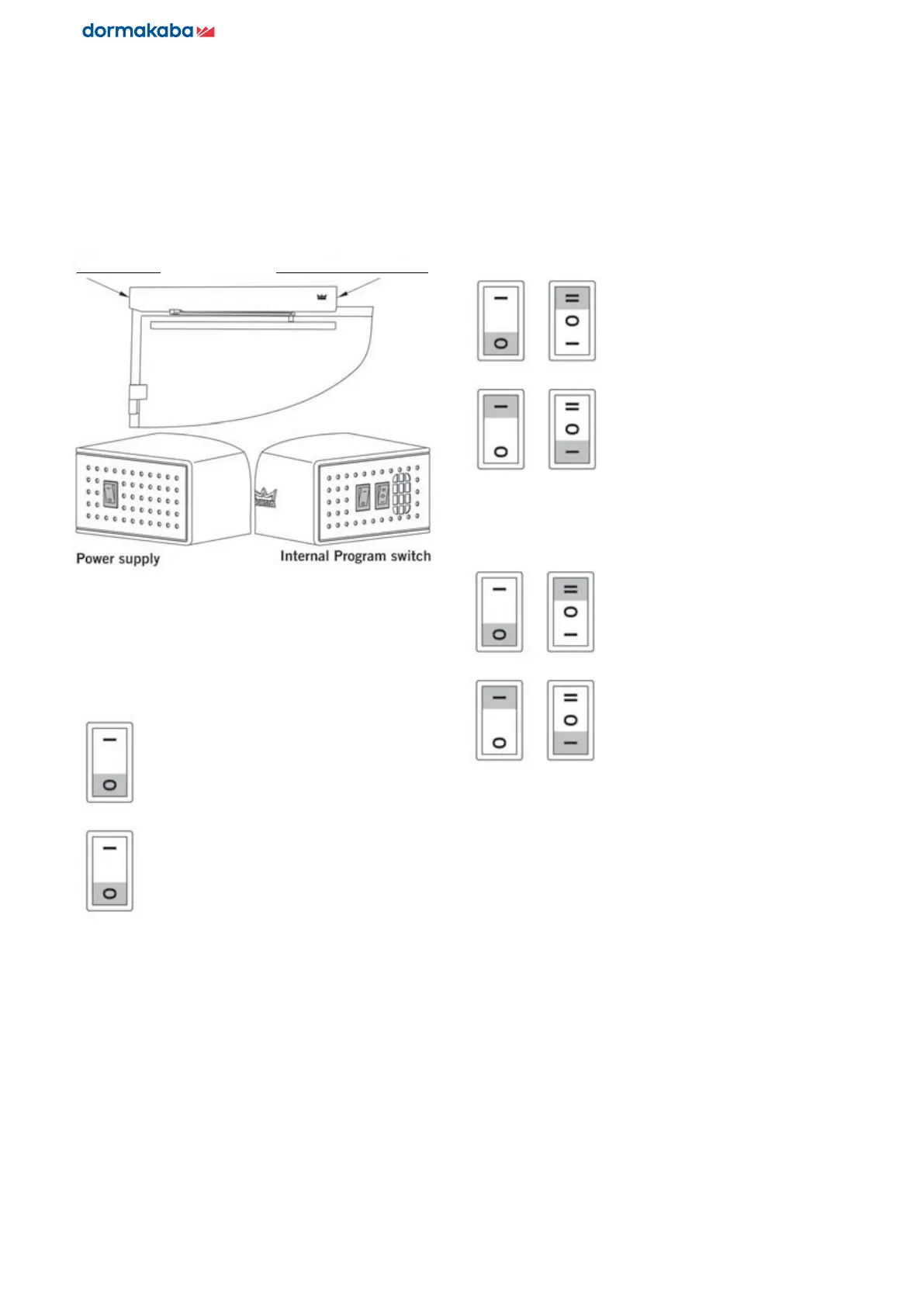

Power supply Internal program switch
OFF
This will remove power to the
operator and the door will settle
into a closed position.
ON
This will energise the operator
which will commence its start-up
measurement cycle before settling
in a closed position.
NOTE: In the event of power
failure the door will go to its
closed position but can be
operated manually.
2017-11
Operator Rocker Switches
Power Supply Switch
OFF
A
djust both switches to ‘’.
AUTOMATIC
Adjust the front switch to to ‘’,
and the other switch to ‘I’. Low
Energy Unit – the door can be
used manually, or automatically
using the operating devices
that have been installed (e.g.
push pads)
PERMANENTLY OPEN
Adjust the front switch to to ‘’,
and the other switch to ‘II’.
EXIT ONLY
Adjust the front switch to to ‘I’,
and the other switch to ‘I’.
Internal Program Switches

Dormakaba ED100 Specifications

General

Type	Universal
Purpose	Interior door
Product color	Gray
Hand orientation	-
Maximum door width	- mm
Maximum door weight	- kg
Placement supported	Overhead concealed door closer
Suitable for door type	Single-leaf door
Power source type	DC

Weight and Dimensions

Width	1422 mm
