dormakaba ED50/ED100/ED250 Owner's Manual
Overhead concealed header
Chapter 6
 General safety related items
.. Review safety related items and perform checks
periodically as noted.
TIPS AND RECOMMENDATIONS
Perform these checks while traffic is restricted
from all detection and sensing zones.
. Housekeeping:
• Check door area for tripping or slipping hazards.
• Check all doors for damage.
• Make sure all hardware and overhead covers are
properly secured.
• There should be no bulletin boards, literature racks,
merchandise displays, or other attractions in the
door area that would interfere with the use of the
door or encourage people to stop and stand in the
door area.
. Door closing force:
• Force to prevent the door from closing should not
exceed  pounds measured with a force gauge.
. Door safety signage:
• Refer to Chapter  for door safety signage
requirements.
• Refer to Chapter  for Safety Information labels.
. Activating switch, knowing act (Para. .):
• Doors equipped with a manual activating switch
shall hold door fully open for a minimum of five
seconds before closing.
. Guide rails (Fig. .., Fig. ..), if used:
• Check that guide rails or other barriers or separators
are present (two per swing door side) and firmly
anchored.
• Rail lengths should be the width of the open door or
greater.

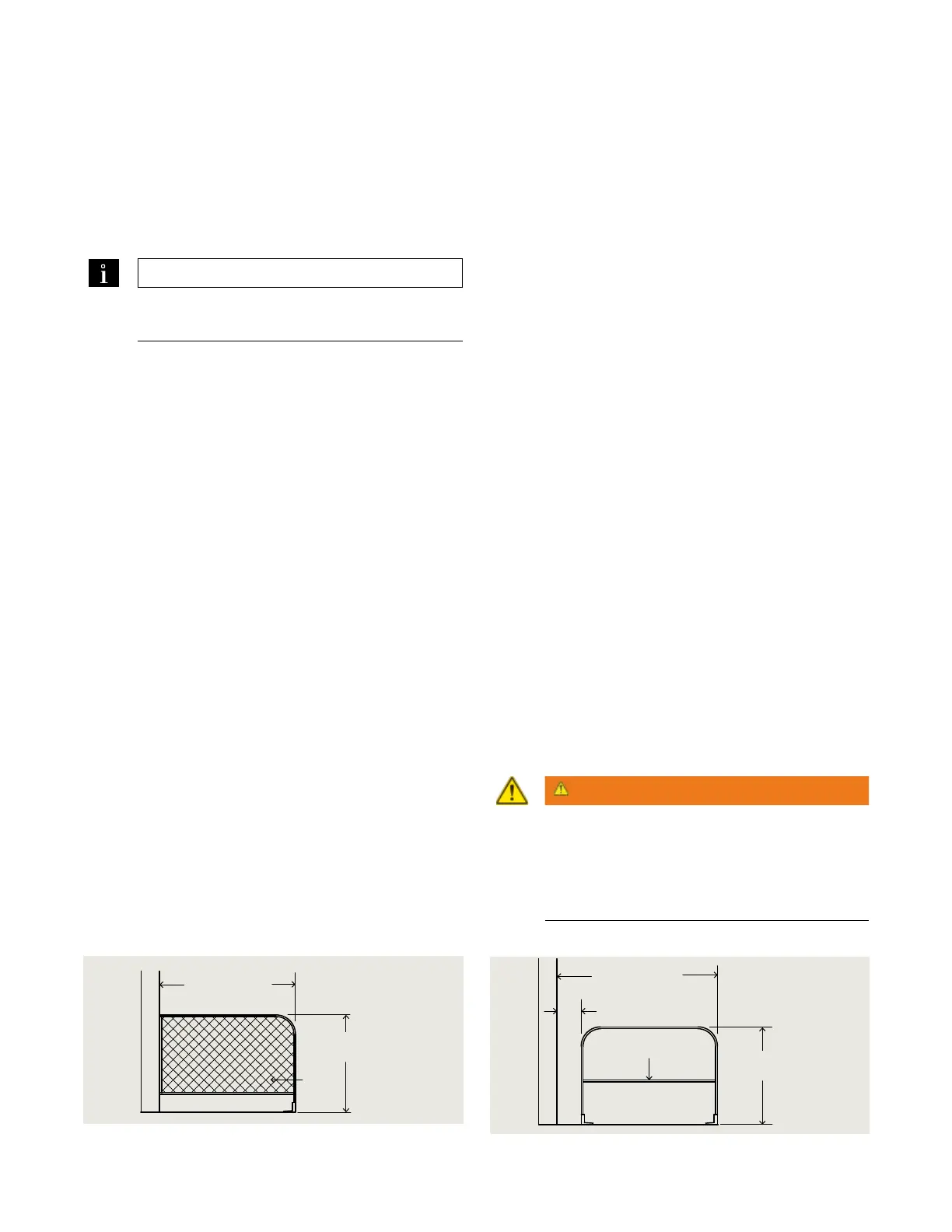

Fig. 6.1.1 Guide rails, jamb and floor mounted
Fig. 6.1.2 Guide rails, free standing, floor mounted
. Full energy power operated swing door (ANSI/BHMA .)
Width of door
minimum
Door jamb
30” [762 mm]
minimum
“6” [152 mm]
maximum
Divider
Door jamb
Width of door
minimum
Panel
30” [762 mm]
minimum
. Lock stile:
• With door open, grasp lock stile of door and attempt
to move horizontally and vertically.
• There should be no looseness in the door pivots or in
connections between door and operator.
. Breakout stop:
• Center pivoted in swinging doors may be supplied
with an emergency breakout stop or switch that will
allow the door to open in the direction of emergency
egress.
• When the door is pushed into the breakout mode,
check that the door will not activate.
. Traffic patterns:
• Observe traffic patterns. Plan routing so people
enter and exit in a straight approach, directly toward
the door opening.
. Finger guard:
• If installed, inspect finger guard to see that it is
secure and in good repair.
. AAADM safety information label (Chapter ):
• An AAADM safety information label should be
affixed on the door or door frame in a protected,
visible location.
• If you need additional decals or labels, contact your
local authorized dormakaba USA Inc. distributor.
WARNING
If there are any problems, discontinue door
operation immediately and secure the door in
a safe manner.
Call your local dormakaba USA Inc. distributor
for repair.
