5.2 Unlocking with a rod locking
device
Personnel
• Operator
Requirements
• The program switch is unlocked with a key / code
• All emergency stop switches are unlocked by turning
or pulling, depending on the type of the emergency
stop switch
• No persons are in or near the revolving door
1. Unlock operating mechanism with the key.
2. Unlock the locking rod with the square key.
3. Again lock operating mechanism with the key.
4. If necessary, unlock the second locking rod in the
same way.
5 Locking the
revolving door
5.1 Locking with a rod locking device*
Personnel
• Operator
Special tool
• Key/code for program switch
• Square key and key for locking cylinder
Requirements
• No persons are in or near the revolving door
• The program switch is set to the “ Off ”

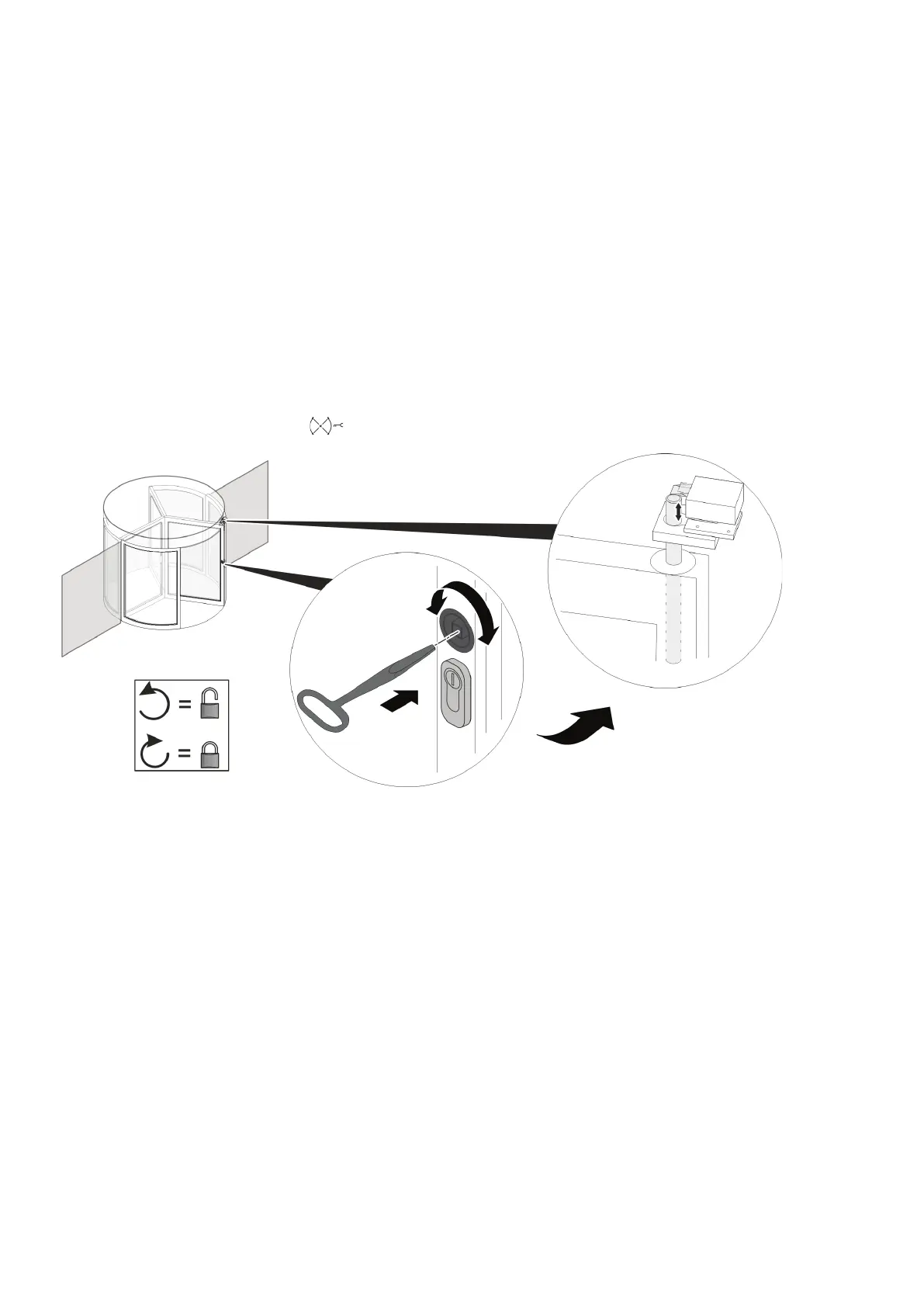

Fig. 5 Locking with a rod locking device
1. Turn the door wing into the locking position.
2. Unlock the operating mechanism of the rod lock with
the key / lock (locking cylinder) ( Fig. 5 ).
3. Lock the locking bar with the square key ( Fig. 5 ).
» The rod locking device moves up and locks the
door wing.
4. Again lock the operating mechanism of the rod lock-
ing device with the key / lock (locking cylinder).
5. If the door wings are foldable, lock the second door
wing in the same manner.
