Locking the revolving door
5.7 Closing the electric night shield*
and locking with the dead man’s
switch
Personnel
• Operator
Special tool
• Key/code for program switch
• Key for dead man’s switch
Requirements
• The program switch is unlocked with a key / code
• All emergency stop switches are unlocked by turning
or pulling, depending on the type of the emergency
stop switch
• No persons are in or near the revolving door

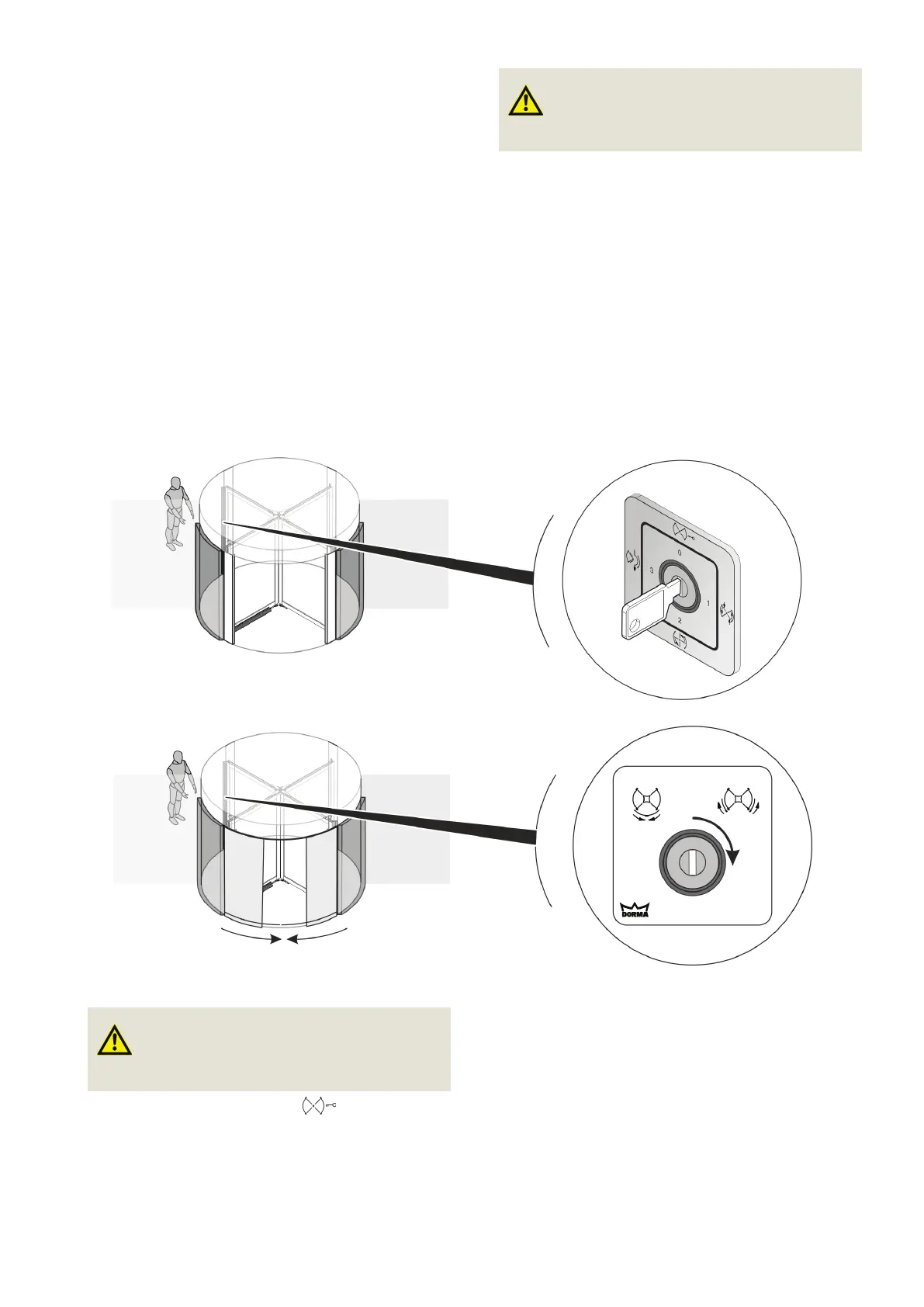

Fig. 8 Electric night shield with dead man’s switch
1.
Turn the program switch to the
“ Off ” position
( 5.9 /top).
WARNING!
Risk of injury due to improper switching off!
2.
Turn the dead man’s switch to the “ Lock ” position
and hold it there ( 5.9 /bottom).
» An installed electric night shield will close and lock
the entrance to the revolving door.
3. Once the night shield is closed and locked, release the
external switch.
» The dead man’s switch will spring automatically
back to its neutral position. The night shield will
have been put in place.
4. Pull the key out of the program switch and the dead
man’s switch.
5.8 Opening the electric night shield*
Personnel
• Operator
Special tool
• Key/code for program switch
• Square key and key for locking cylinder
1. Turn the dead man’s switch to the “ Open ” position
and hold it until the night shield is fully opened.
WARNING!
Risk of injury due to improper locking!
Closing the electric night shield*
and locking with the dead man’s switch
