5.6 Opening the manual night shield*
Personnel
• Operator
Special tool
• Key/code for program switch
• Square key and key for locking cylinder
1. Unlock operating mechanism with the key.
2. Unlock rod locking device.
3. Slide night shield elements into the side pockets and
lock again.
4. Finally, lock the operating mechanism again with the
key.
5.5 Closing and locking the manual
night shield*
Personnel
• Operator
Special tool
• Key/code for program switch
• Square key and key for locking cylinder

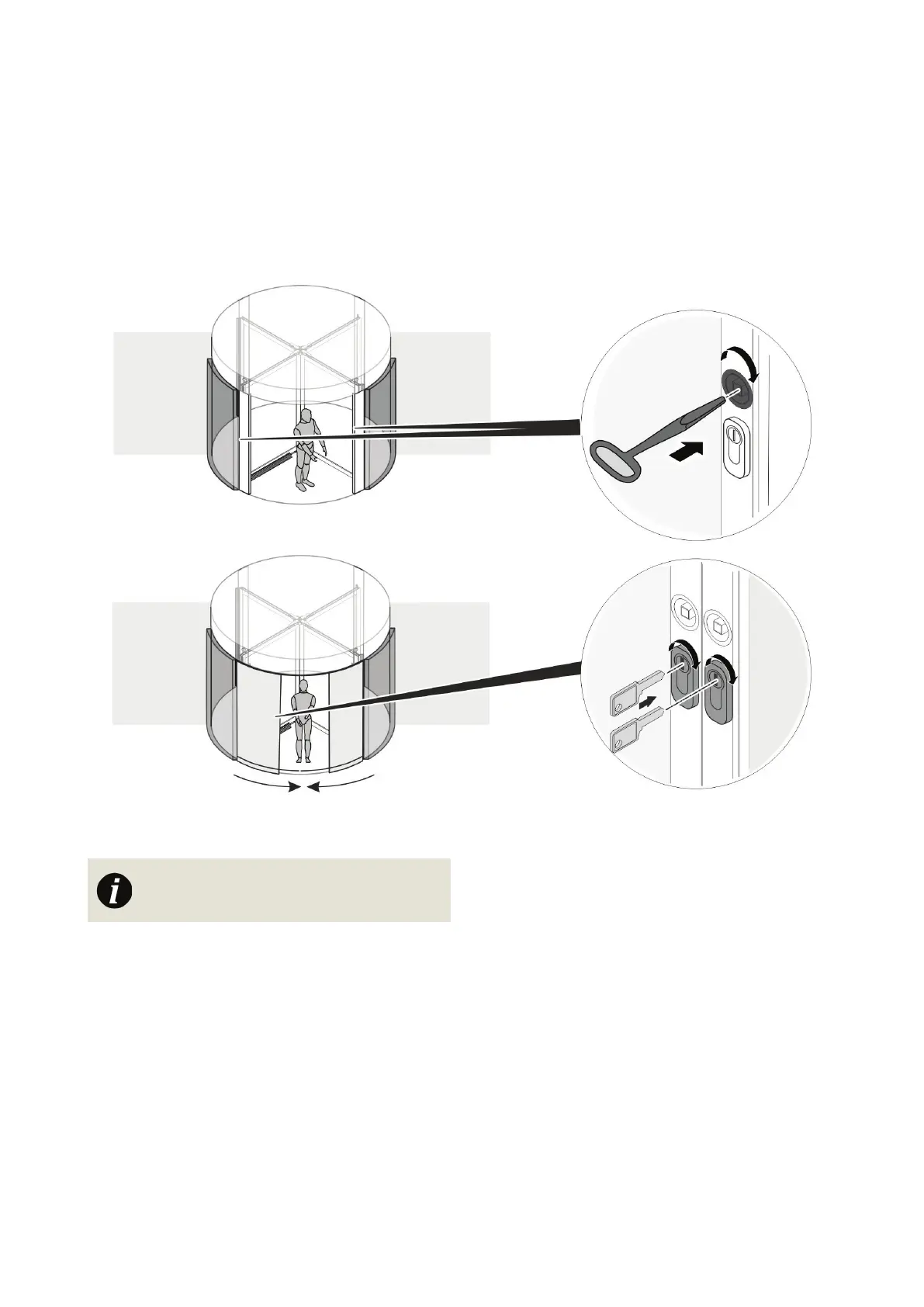

Fig. 7 Unlock night shield elements, slide together and
lock
1.
Enter the revolving door from the inside. Turn the
door wings by hand until the night shield elements
are accessible.
2. Unlock operating mechanism of the rod locking
device(s) with the key.
3. Unlock night shield elements with square key ( 5.7 /
top).
4. Push night shield element(s) together as far as it
(they) will go.
5. Lock locking device bars with square key.
6. Again lock the operating mechanism of the rod lock-
ing device(s) in the closed position with the key.
For three-wing doors, only one night shield
element will be available.
