dormakaba RTS88 Package 07-22 Installation Instructions
08280311 02-2020RTS88 Closers
5

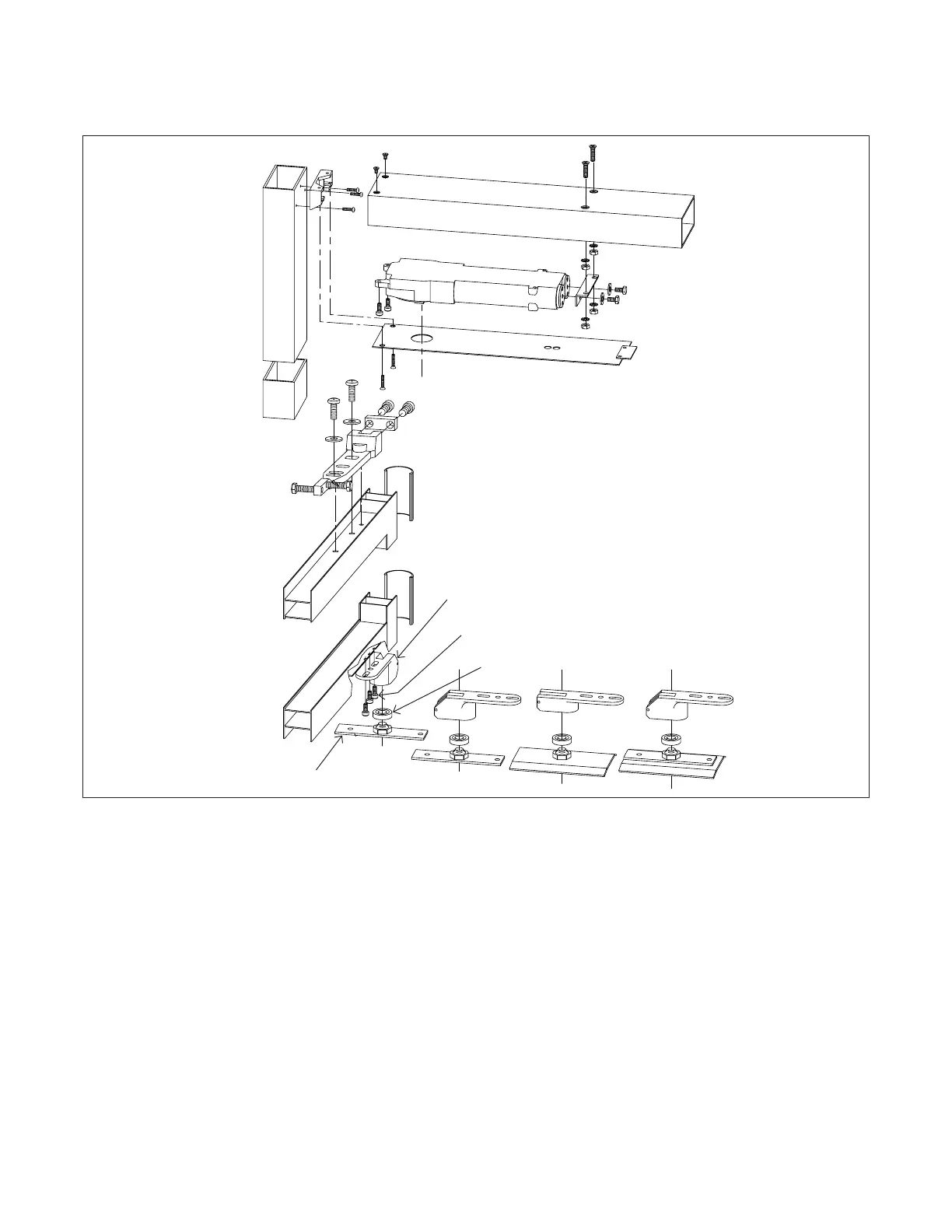

Floor pivot
. Prepare bottom of door and install pivot
Fig.
Header
Side
jamb
Closer
Cover plate
8852 floor pivot: 7/8” web depth
8853 floor pivot: 1-9/16” web depth
1.3.1 Prepare bottom of door according to template.
1.3.2 Fasten door portion of bottom pivot with three
1/4-20 pan head machine screws.
1.3.3 Prepare floor according to template.
1.3.4 Fasten lower portion with two No. 14 flat head
wood screws and plastic anchors.
8855 threshold pivot: 7/8” web depth
1.3.1 Prepare bottom of door according to template.
1.3.2 Fasten door portion of bottom pivot with three
1/4-20 pan head machine screws.
1.3.3 Prepare threshold according to template.
1.3.4 Fasten lower portion with jamb nut.
8857 threshold pivot: 1-9/16” web depth
1.3.1 Prepare bottom of door according to template.
1.3.2 Fasten door portion of bottom pivot with two
1/4-20 pan head machine screws.
1.3.3 Prepare threshold according to template.
1.3.4 Fasten lower portion with two No. 14 flat head
wood screws and plastic anchors.
1.3.5 Place bearing onto bottom portion of pivot.
1.3.6 IMPORTANT: TO FIT BEARING CORRECTLY,
THE ENCLOSED SIDE SHOWING THE
NOMENCLATURE OF THE BEARING MUST
FACE DOWN.
8852
8853
8855
8857
Door portion
1/4-20 pan head
machine screws
Lower portion
Bearing
