Dormakaba RTS Package 26 Series User Manual

dormakaba RTS88 Package 07-22 Installation Instructions
08280311 02-2020RTS88 Closers
7

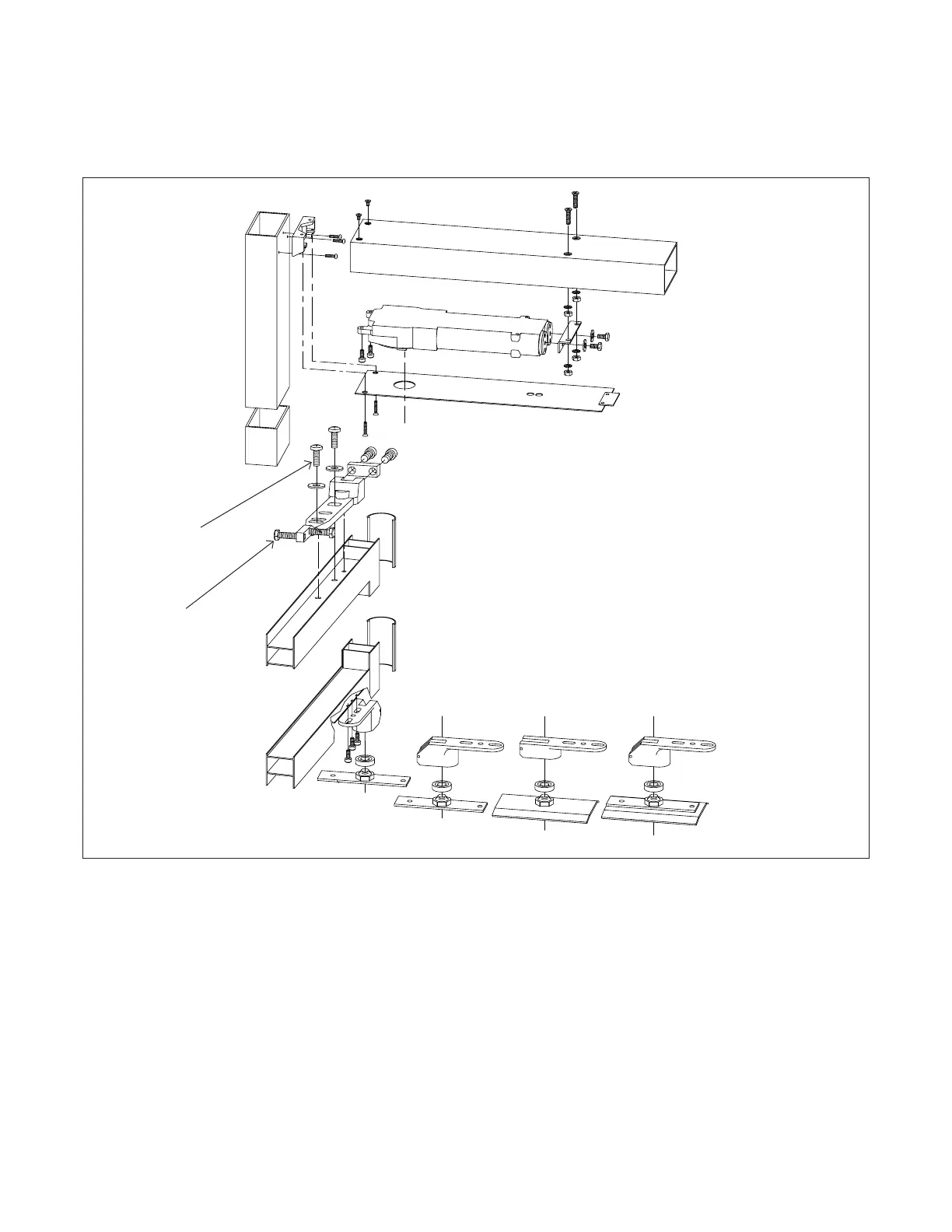

Adjustments - door alignment
2 Adjustments
Header
Side
jamb
Closer
Cover plate
. Door alignment
Fig.
2.1.1 Double acting -
• Center door in frame by loosening 1/4-20 pan
head screw and adjusting the two 1/4-20 hex
head alignment screws as required.
• Retighten 1/4-20 pan head screws.
• TIGHTEN SECURELY!
1/4-20 hex
head alignment
screws
2.1.2 Single acting -
• Adjust arm to insure that door closes tightly
against stop.
• Loosen the two 1/4-20 pan head screws.
• Adjust arm fully in the direction of door swing.
• Retighten 1/4-20 pan head screws.
• TIGHTEN SECURELY!
8852
8853
8855
8857
1/4-20 pan
head machine
screws and
flat washers.
