Dormakaba Saflok RT Plus - Autodeadbolt ASM Inside Trim Assembly

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 7
2 Exploded Views
2.3 Autodeadbolt ASM Inside Trim Assembly
NOTE:
The inside trim assembly (E) for autodeadbolt models includes
the parts (E3, E4, E5, E17)shown, assembled at the factory.
For ASM Office and ASM/ESM Store-room models, only some
of the parts (E) are used. See instructions in Appendix A.
Parts (E3, E4, E5, E17) also available separately (kit #062-
510484-K) to convert the standard lock to Autodeadbolt ASM,
ASM Office or ASM/ESM Storeroom functions.

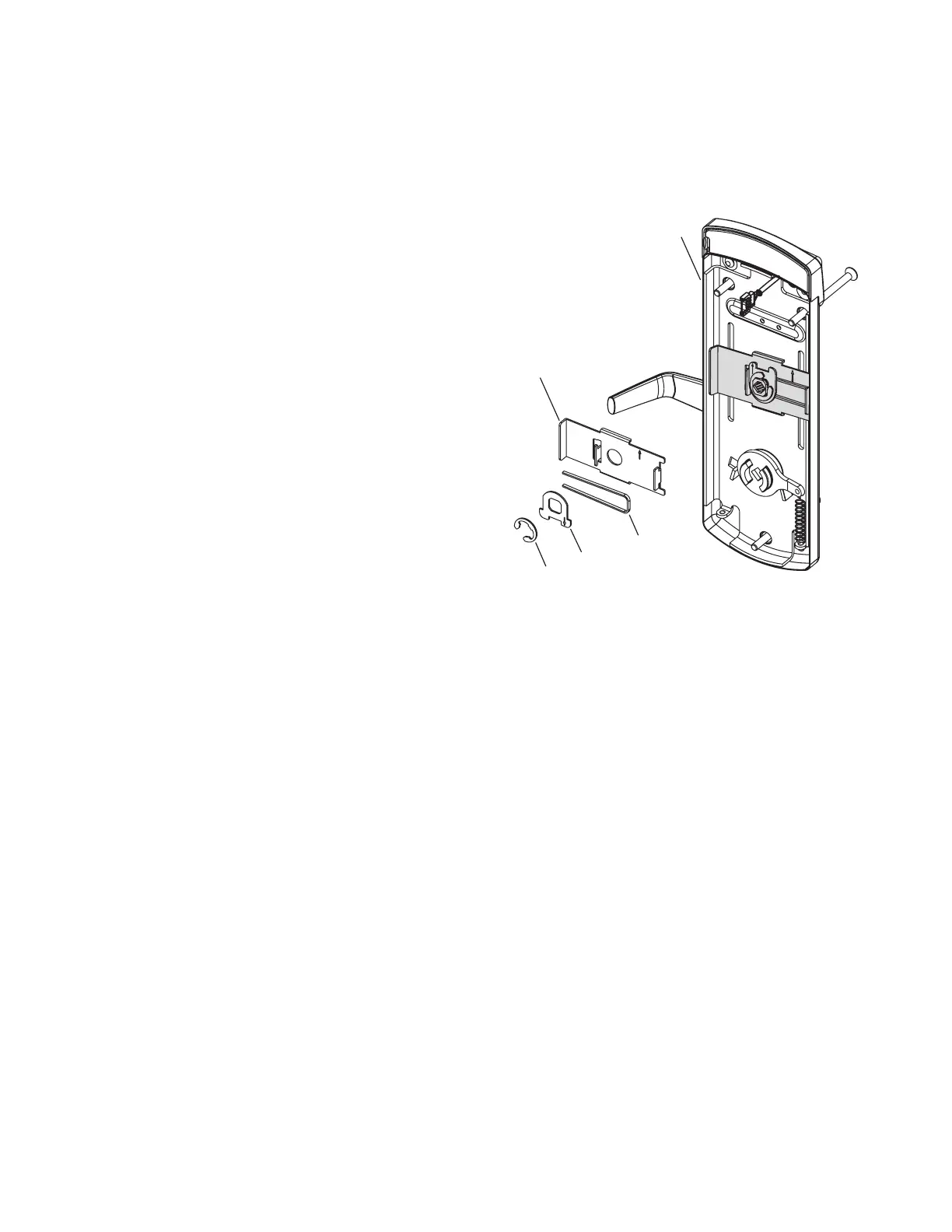

Fully assembled
view
E
E5
E17
E3
E4
