Dormakaba SVP User Manual

Fig. 14
SVP 2000
SVP 2000F
SVP 4000
SVP 6000
SVZ 6000
SVP 5000
180
8
min. 8ø
15
180
50
min. 8ø
SVP 2000
SVP 2000F
SVP 4000
SVP 6000
SVZ 6000
SVP 5000

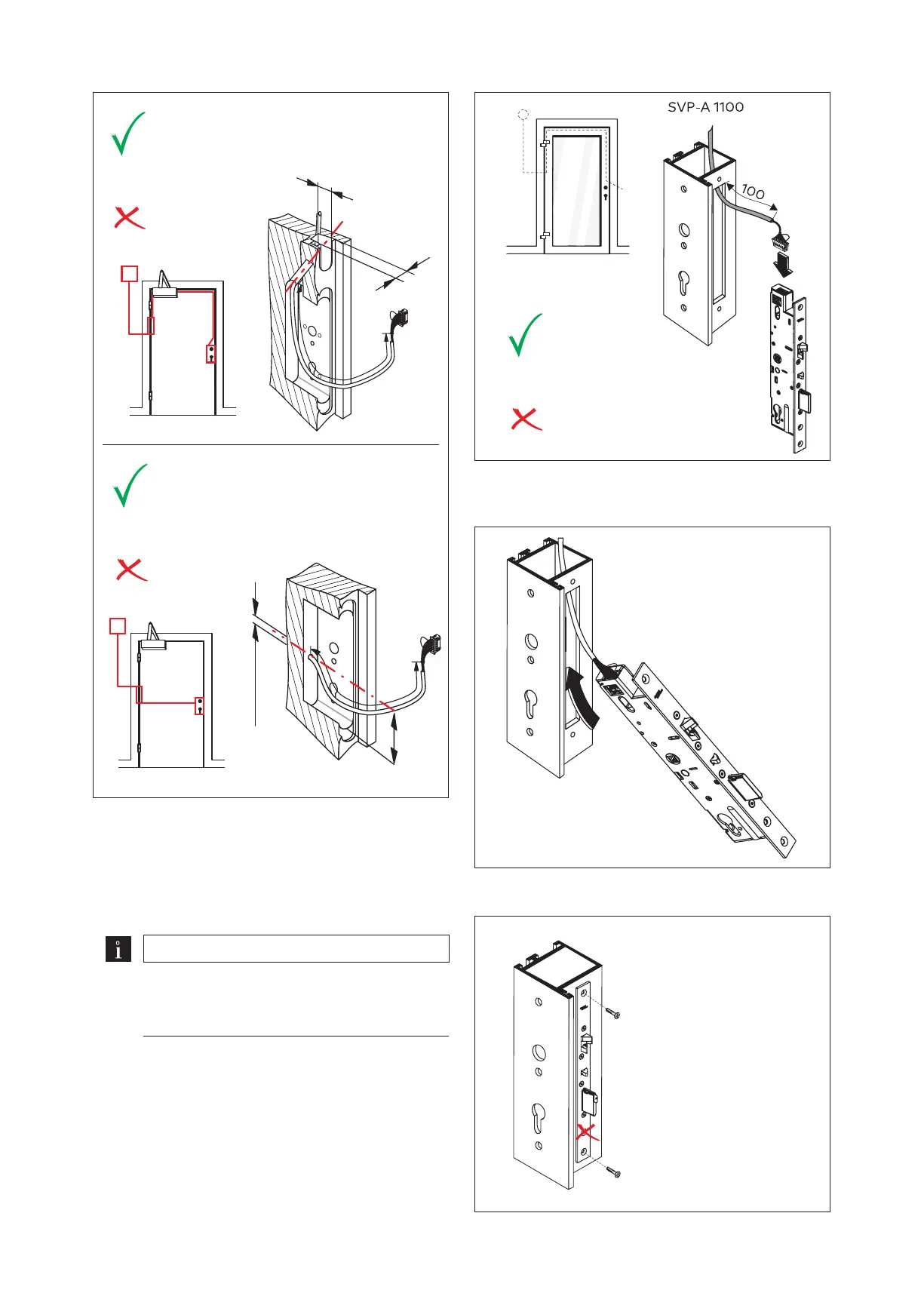

Recesses and pre-drilled holes in the door leaf for
wiring
4.5 Mount locks
4.5.1 Mount tubular frame lock
1. Connect the cable (Fig. 15).
TIPS AND RECOMMENDATIONS
If a lock is being replaced, a cable with a
severed bridge can still be used.
Fig. 15
SVP 2000
SVP 2000F
SVP 4000
SVP 6000
SVZ 6000
SVP 5000
Connect cable
2. Insert the door lock into the door leaf recess (Fig.
16).
Fig. 16 Insert door lock
3. Screw the door lock tight (Fig. 17).
Fig. 17 Screw door lock tight
11
SVP/SVZ door locks 2020-03WN 059744 45532
dormakaba Mounting instructions Mounting
