Dormakaba SVP User Manual

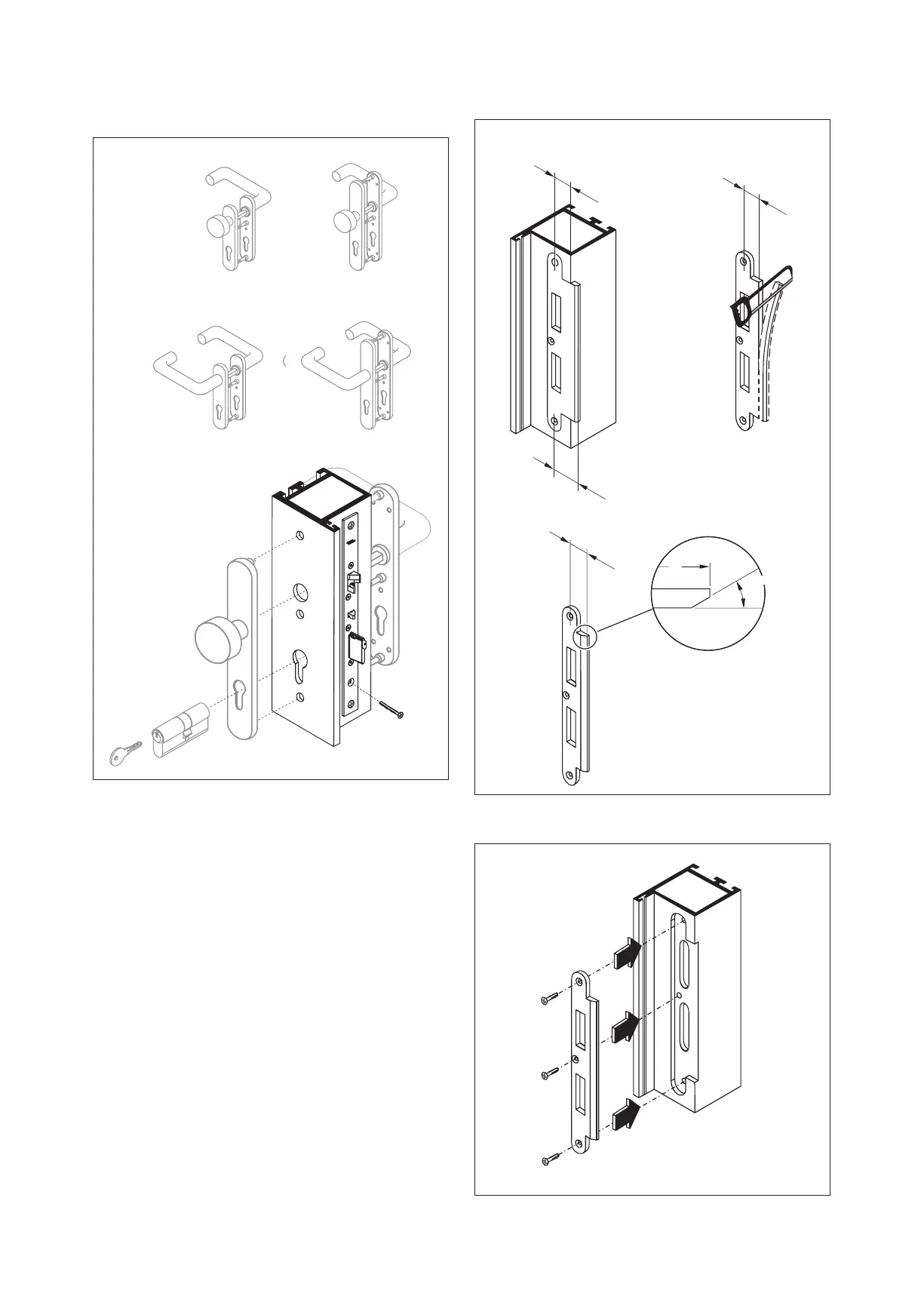

4. Mount the door handle and locking cylinder (Fig.
18).
Fig. 18
SVP 2000
SVP 2000F
SVP 4000
SVP 5000
SVP 6000
Mount door handle and locking cylinder
5. Adjust the striking plate (Fig. 19).
Fig. 19
X
28
X
X ≤ 28
X
X
45°
Dimensions of the adjustments
6. Mount the striking plate (Fig. 20).
Fig. 20 Mount striking plate
12
SVP/SVZ door locks
2020-03
WN 059744 45532
dormakaba Mounting instructions Mounting
