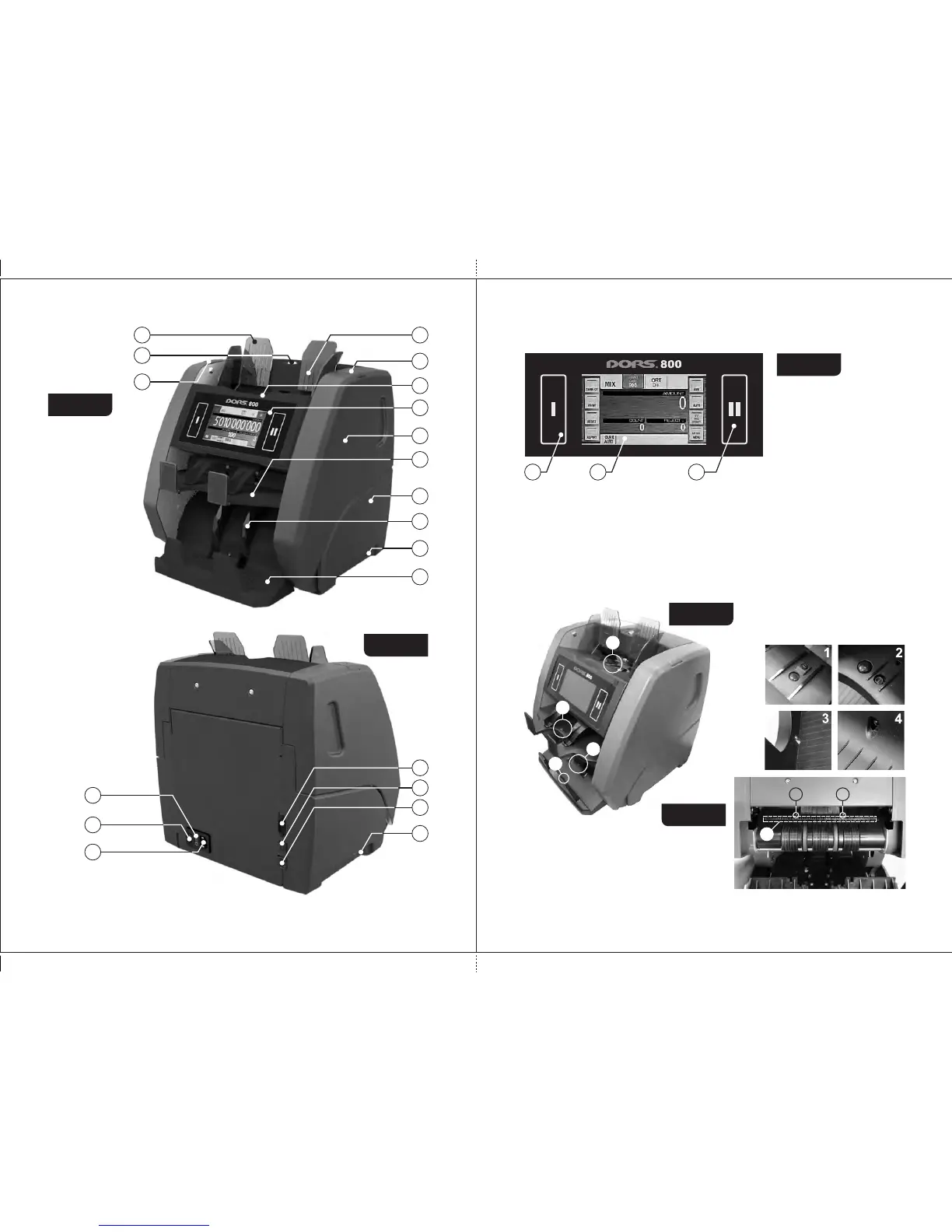

Appearance
Figure 1
Figure 2
1 Screw to
adjust a gap between
hopper's rollers.
2 Banknote guides.
3 Hopper.
4 Locks providing
access to
mechanism.
5 Control panel.
6 Reject pocket.
7 Stacker.
8 Stacker wheels.
9 Carrying handles.
10 Upper part.
11 Base.
12 Power switch.
13 Fuse.
14 Power connector.
15 Connector for an e xternal printer
or a video surveillance
device.
16 USB port for PC connection.
17 Socket for external display.
DORS 800 BANKNOTE SORTERDORS 800 BANKNOTE SORTER
External Sensors, path sensors and diverter
To open the path, press simultaneously the locks fixing an upper part (see
Fig. 1, item 4), and then, holding the hollows of the case, pull the upper part of
the sorter (see Fig. 2, item 10) up to the stop. To close the path, push the upper
part up to a click.
Fig. 5, Fig. 6, and Fig. 7 show the external sensors, the path sensors and
the pocket switch.
Control panel
Figure 3
1 The softkeys for the
start and user
selection.
2 Touch screen display.
1 Hopper sensors
2 Reject pocket sensor
3;4 Stacker sensors
11 2
5 Lighting
6 Contact image sensor (CIS)
Figure 4
Figure 5
6
55
