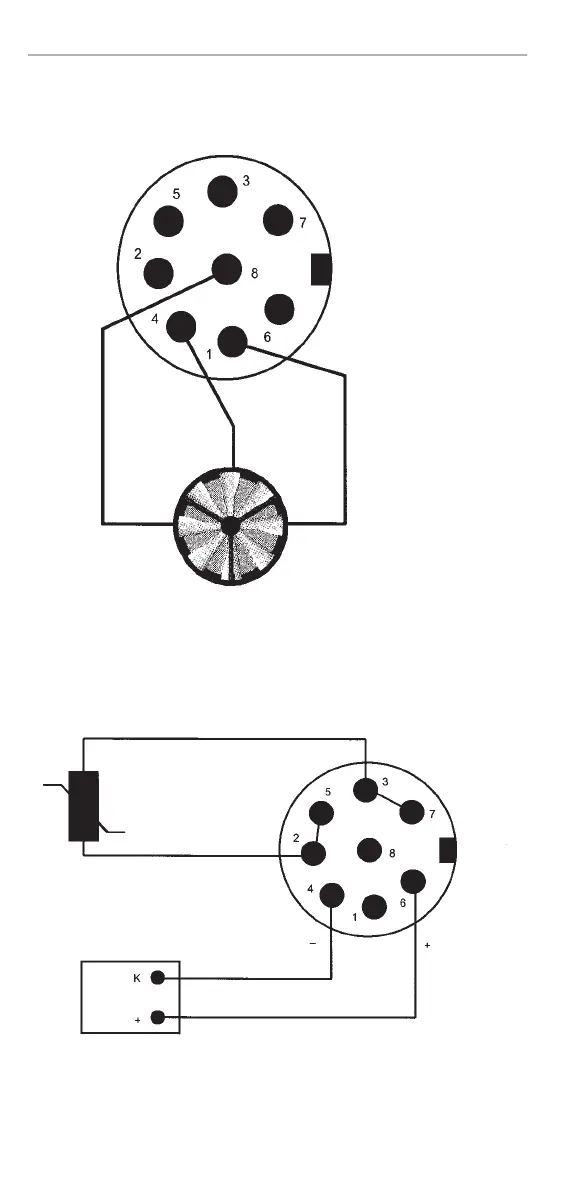

Connector layout of a probe for flow Mini Air6 (series P750/P755/770)
Measuring channel 1 /2
25
Soldering
Side
Pt100 2-Wire
In the plug
midget thermocouple connector
gn (ws)
rt (gn)
cable length 12 cm
Mini Air6 Impeller
Soldering
Side
black whiteyellow
Adaptor DIN Connector for Thermocouples Socket (series P700)
Measuring channel 1 /2
