8

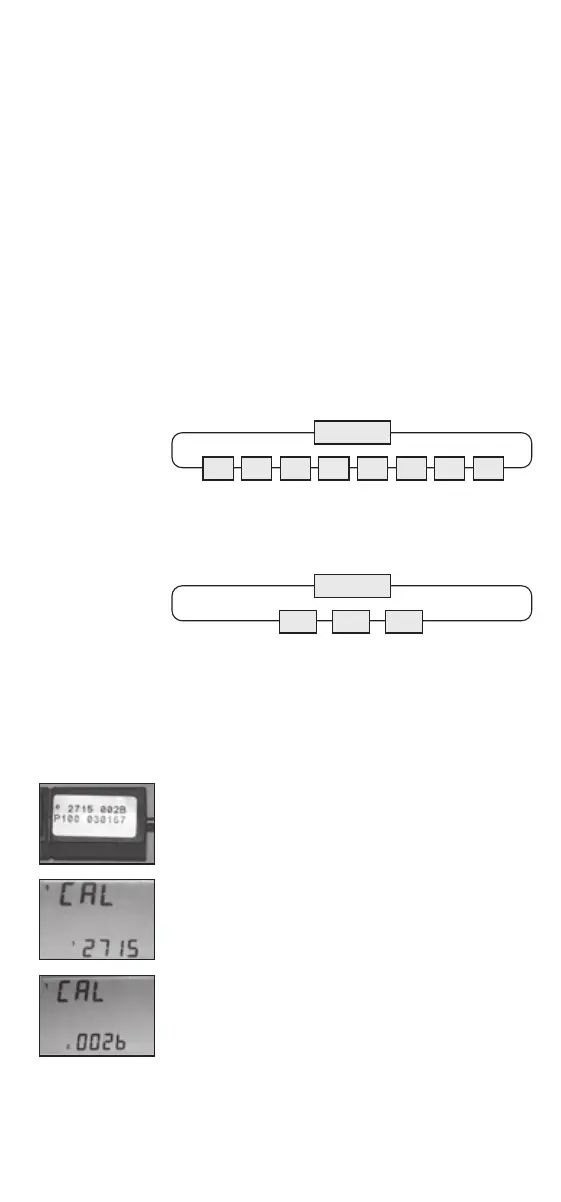

The instruments offer three calibration options:
1) [OFF]:Standard characteristic curve (e.g. Pt100-
resistance according DIN IEC 60751)
2) [OP1]:Calibration by code (2 x four digit code) is
equivalent to a 2-point calibration
The code is marked clearly by a label on each stan-
dard probe.
3) [OP2]:Calibration by physical standard references
(1-point, 2-point or 3-point calibration)
CAL = calibration
Push [ENTER/MENUE] to calibrate the instrument with
sensor. Use the up and down keys
[
]
to select CAL.
Push again [ENTER/MENUE]. On the left corner of the
display appears a small 1, which indicates the selected
channel. For changing the channel use the up and down
keys
[
].
Push [ENTER/MENUE] to confirm.
Use the up and down keys [
] to select the re-
quested calibration option. Push [ENTER/MENUE] to
confirm.
Standard linearization
according DIN IEC 60751 / [oFF
Use the up and down keys [
] to select [oFF. Push
[ENTER/MENUE] to confirm.
Push [ESC] to be back in the measuring mode.
Calibration by code / oP1
Use the up and down keys [
] to select oP1. Push
[ENTER/MENUE] to confirm.
On the bottom of the display appears a very small 1,
after this number a four-digit number (Hex-Code/0..F) is
displayed. For changing the number use the up key
[
]. For stepping to the next number use the down key
[
]. If the requested number is complete then push
[ENTER/MENUE] to confirm. Now on the bottom of the
display appears a very small 2, after this number a sec-
ond four-digit number is displayed. For changing the
number please follow the manual as before. Push [ESC]
to be back in the measuring mode.
Note: After confirming oP1 by pushing [ENTER/MENUE]
the function oP1 (calibration by code) is activated, even
though you leave the menu by pressing [ESC].
Important!
CAL
oFF oP1 oP2
Unit
MENUE
Prob Lin2 CAL PrEn Chnl ArEA Lo6
