15
ATTENTION
If no keys are pressed for ten minutes,
the system automatically returns to the
default access level.
8.1.4 Displaying and changing parameters
The parameter numbers contain the navigation path,
which helps you find a particular parameter quickly
and easily. The first digit of the parameter number
indicates the first menu level, which can be called up
directly via the four function keys. Subsequent steps
are carried out via the navigation keys.
8.2 Manual operation of the
pumps
By pressing the Quick access key ā€œOperationā€,
information like system pressure and pump load can
be retrieved. Also, the pump operating mode like
Automatic, Manual and Disabled can be alternated /
selected. Subsequent steps are carried out by using
the navigation keys.

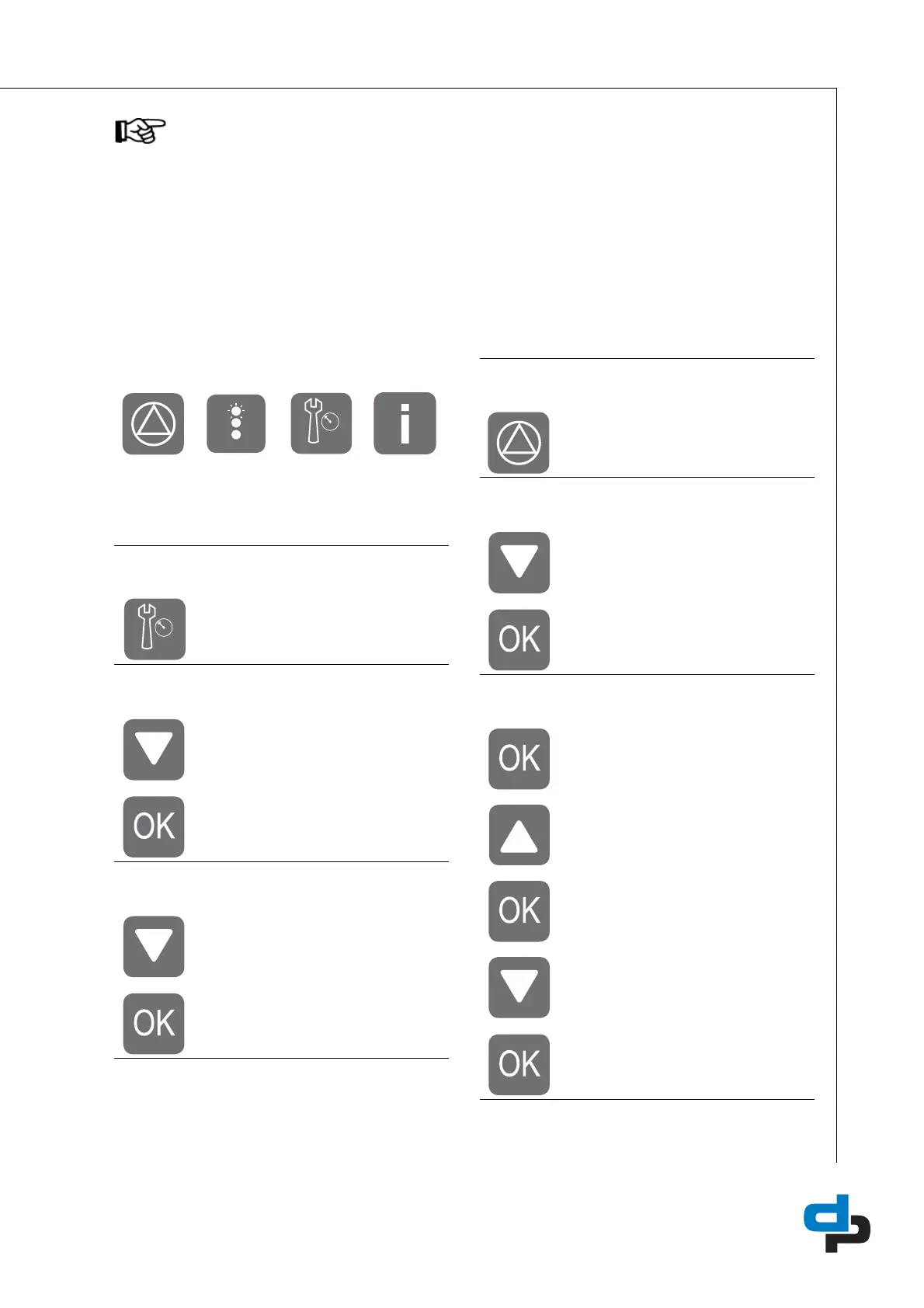

1--Operation 2--Diagnosis 3--Settings 4--Info
Example: Parameter 3-5-10 Delta P correction:
First digit of parameter number: 3-5-10
3 Settings 5 Pressure 10 Delta P correction
Press the third function key for Settings. 3-1
appears in the top left of the screen.
Second digit of parameter number: 3-5-10
3 Settings 5 Pressure 10 Delta P correction
Change the display 3-1 on the screen (top
left) to 3-5 by pressing the navigation keys.
To confirm the selection, press OK. 3-5
appears in the top left of the screen.
Third digit of parameter number: 3-5-10
3 Settings 5 Pressure 10 Delta P correction
Change the display 3-5-1 on the screen (top
left) to 3-5-10 by pressing the navigation
keys.
To confirm the selection, press OK. 3-5-10
appears in the top left of the screen.
Example: Parameter 1-2-1 (Pumps) Operation mode:
First digit of parameter number: 1-2-1
1 Operation 2 Pumps 1 Operation mode
Press the first function key for Operation. 1-
1 appears in the top left of the screen.
Second digit of parameter number: 1-2-1
1 Operation 2 Pumps 1 Operation mode
Change the display 1-1 on the screen (top
left) to 1-2 by pressing the navigation keys.
To confirm the selection, press OK. 1-2
appears in the top left of the screen.
Third digit of parameter number: 1-2-1
1 Operation 2 Pumps 1 Operation mode
To confirm the selection, press OK. 1-2-1
appears in the top left of the screen.
Select the pump number by pressing the
navigation keys.
To confirm the selection, press OK.
Select the operation mode manual
(on (10 s)).
To confirm the selection, press OK.
