12 Annexes
12.1 Megacontrol
Table 48: Technical specifications
Item Value
Type of control Megacontrol
Article number Megacontrol 1-3 pumps 77870550
Article number Megacontrol 1-6 pumps 77870551
Dimensions HxWxD [mm] 306.5 x 187 x 72.5
Connecting voltage [V] 230 ± 5%
Frequency [Hz] 50/60
Relay outputs [A] 1 max.
Analog inputs [mA] 4 - 20
Analog outputs [mA] 4 - 20
Safety class IP55
1
1. When built into a IP55 control panel.
Display 7 lines x ....characters
Ambient temperature [°C] 50 max.
Atmospheric humidity [%] 20 - 90 (no condensation)
Fuse 250 V T315mA R508D80
Maximum altitude 1000 m above sea level
ID2986/07 062007

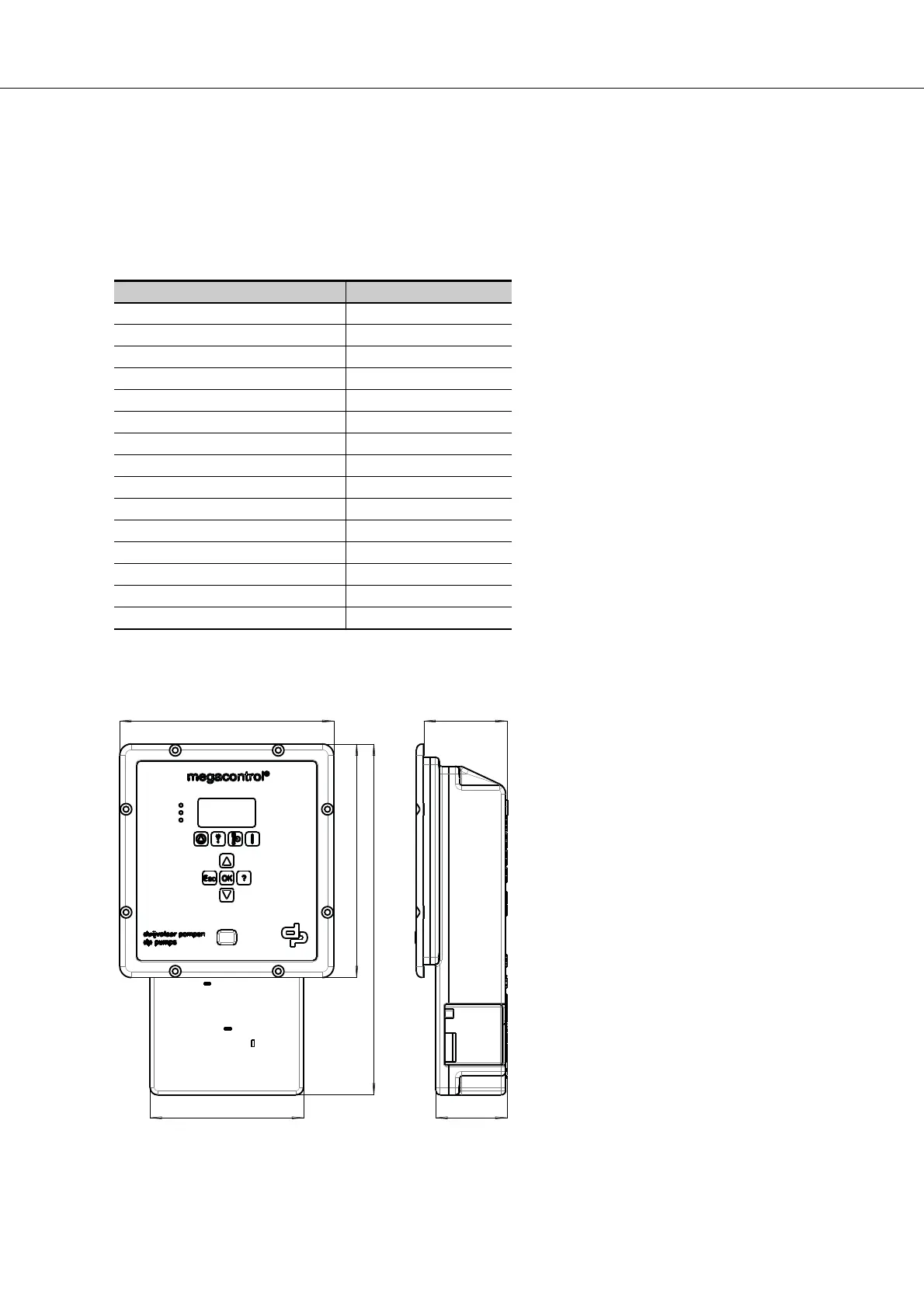

Figure 35: Megacontrol
20070476-A
187
134
306.5
204
72.5
62
