Mounting steps

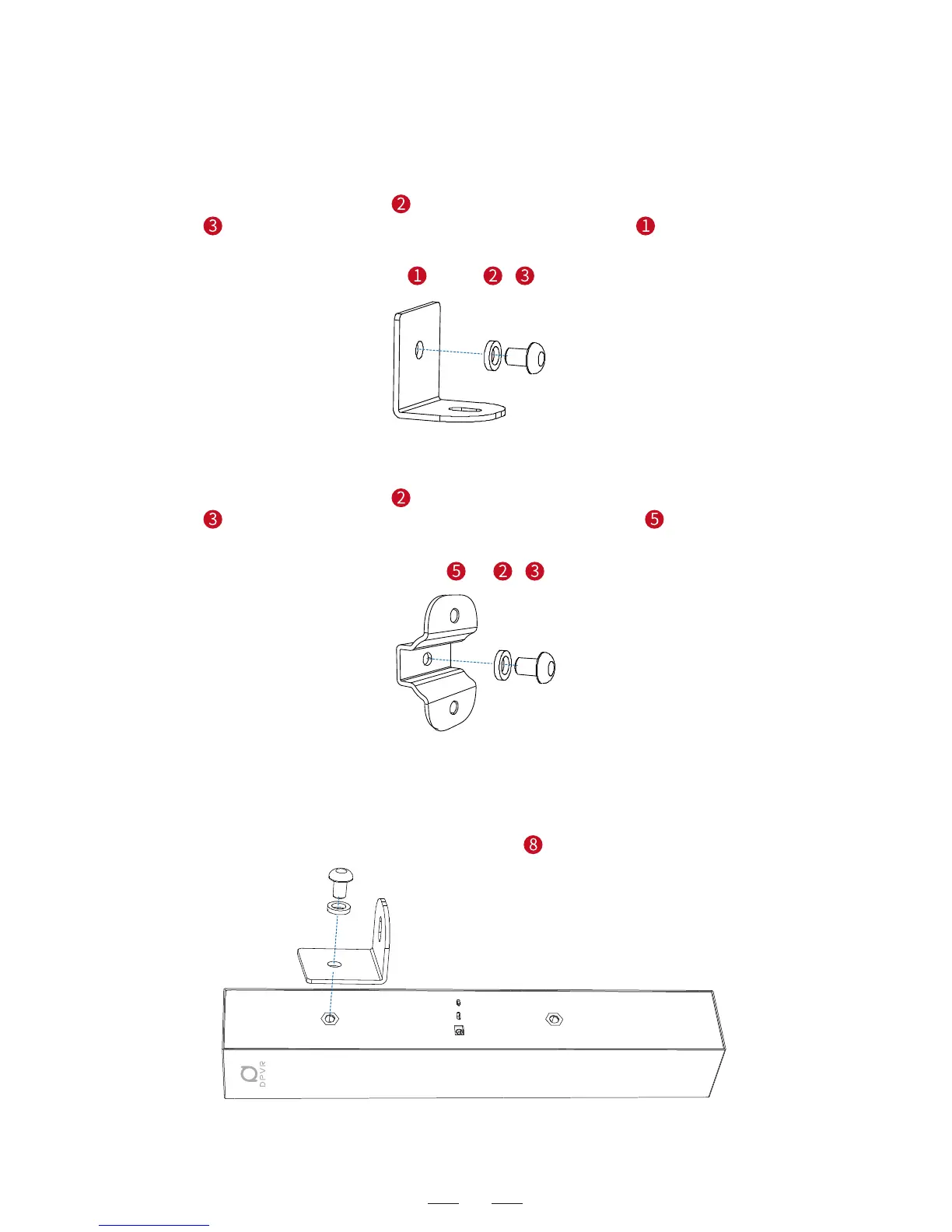

Step ①: Put the washer on the hexagon socket head cap screw
1 , and then insert it into the tripod upper support , as shown
below.
Step ②: Put the washer on the hexagon socket head cap screw
1 , and then insert it into the tripod lower support 1 .
Step ③: Insert the assembly completed in step ① into the mounting
holes in the upper part of the base station back, as shown below.
Use the hexagon socket L-type spanner to tighten it.
