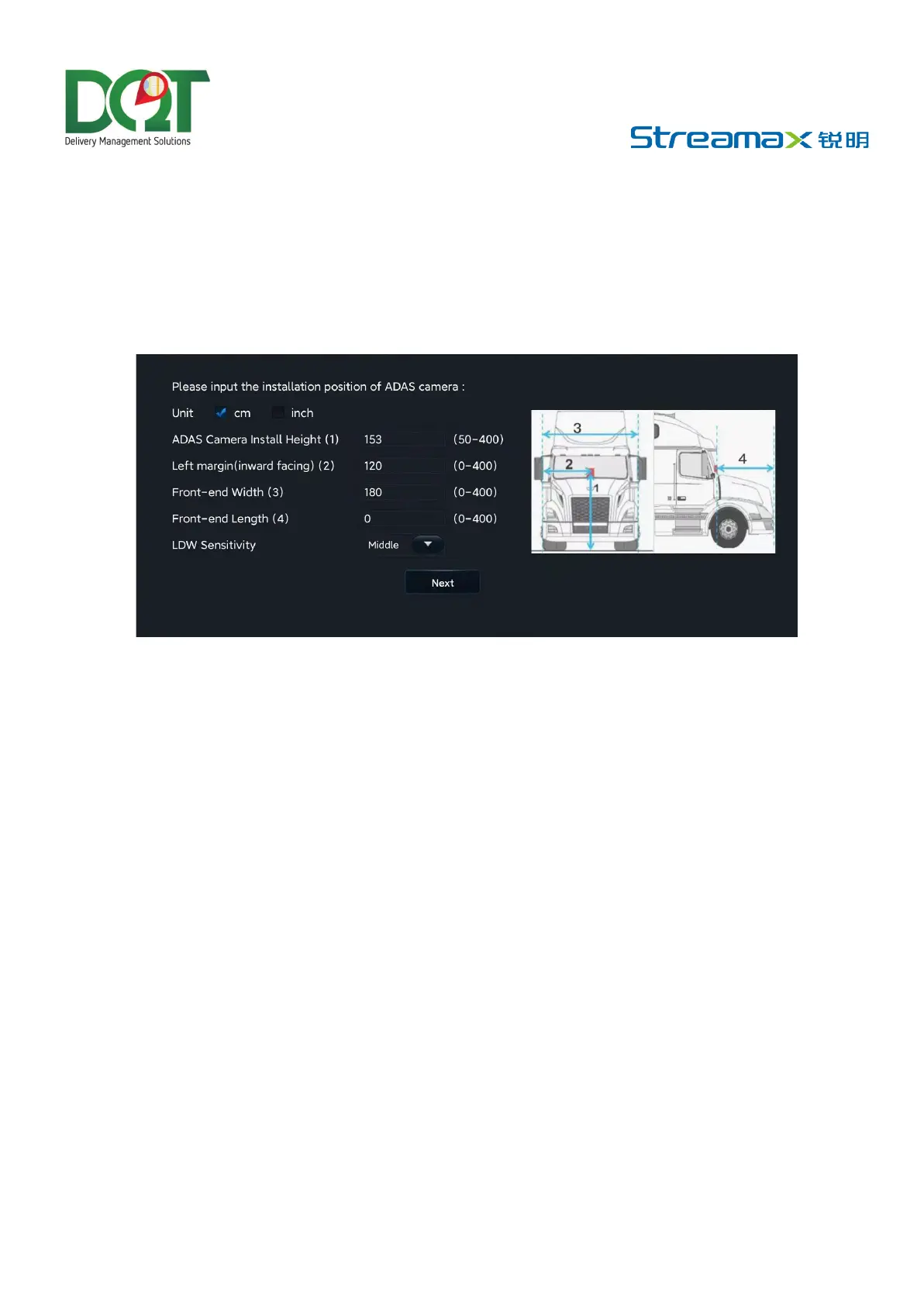

• In the parameter input boxes, fill in the installation height of ADAS lens, the left
margin of the ADAS lens, and the front-end width and front end length read in 5.1.2
respectively. Refer to the example on the right for the size measurement, with
each parameter No. corresponding to each legend No., as shown in the following
figure:
