18 and 19 HP ROAD-TOWABLE CHIPPER

Attaching the Hitch Arms and Hitch Assembly

Tool Needed:

• (2) 3/4" Wrench or Socket

1. Attach the two (2) Hitch Arms to the Trailer Frame using the two (2) Hitch Arm Mounting Plates

and four (4) 1/2"-13 x 1-1/4" Bolts (Figure 2). DO NOT

tighten the bolts at this time.

2. Attach the Trailer Hitch Assembly to the Hitch Arms with two (2) 1/2"- 13 x 3" Bolts and two (2)

1/2"- 13 Lock Nuts (Figure 2). Tighten all of the hardware.

3. Slide the Trailer Stand up through the holes in the Hitch Assembly and secure with the Hairspring

Cotter Pin (Figure 2).

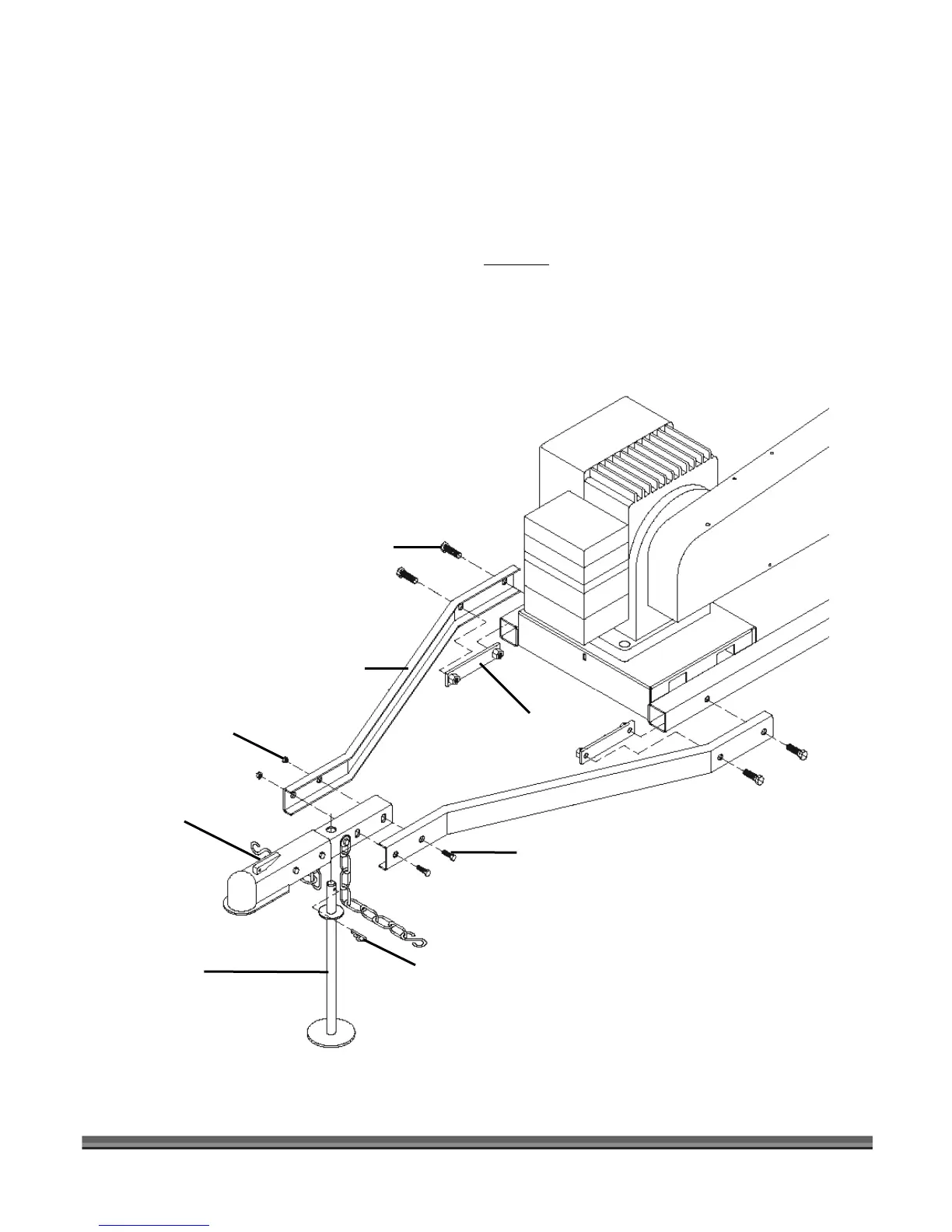

Figure 2

Hitch Plate (2)

Hitch Arm (2)

1/2" x 1-1/4" Bolt (4)

1/2" x 3" Bolt (2)

1/2" Lock Nut (2)

Trailer Hitch Assembly

Trailer Stand

Hairspring Cotter Pin
