DR 18 HP - Operation Notes

24 DR
®
18 and 19 HP ROAD-TOWABLE CHIPPER
Operation Notes
• Visually check the Chipper Knife for damage each time you use the machine.
NOTE: Check for shaft movement while starting the engine. If the shaft does not turn, clean out the Chipper
as instructed on page 28.
• At engine start-up, the engine of your DR CHIPPER operates under no load until approximately
1200-1400 RPM, at which speed the Centrifugal Clutch engages and begins driving the Rotor
Assembly.
• Proper Rotor speed is 2400-RPM +/- 200 RPM.
• When viewed from the Chipper Hopper side, the Flywheel turns in a clockwise direction.
• Only operate the DR ROAD-TOWABLE CHIPPER from the Operator Zone shown in Figure 9.
• Keep proper balance and footing while operating the DR ROAD-TOWABLE CHIPPER.
• ALWAYS stop the engine when leaving the Operating Zone (Figure 9) or when moving the machine.

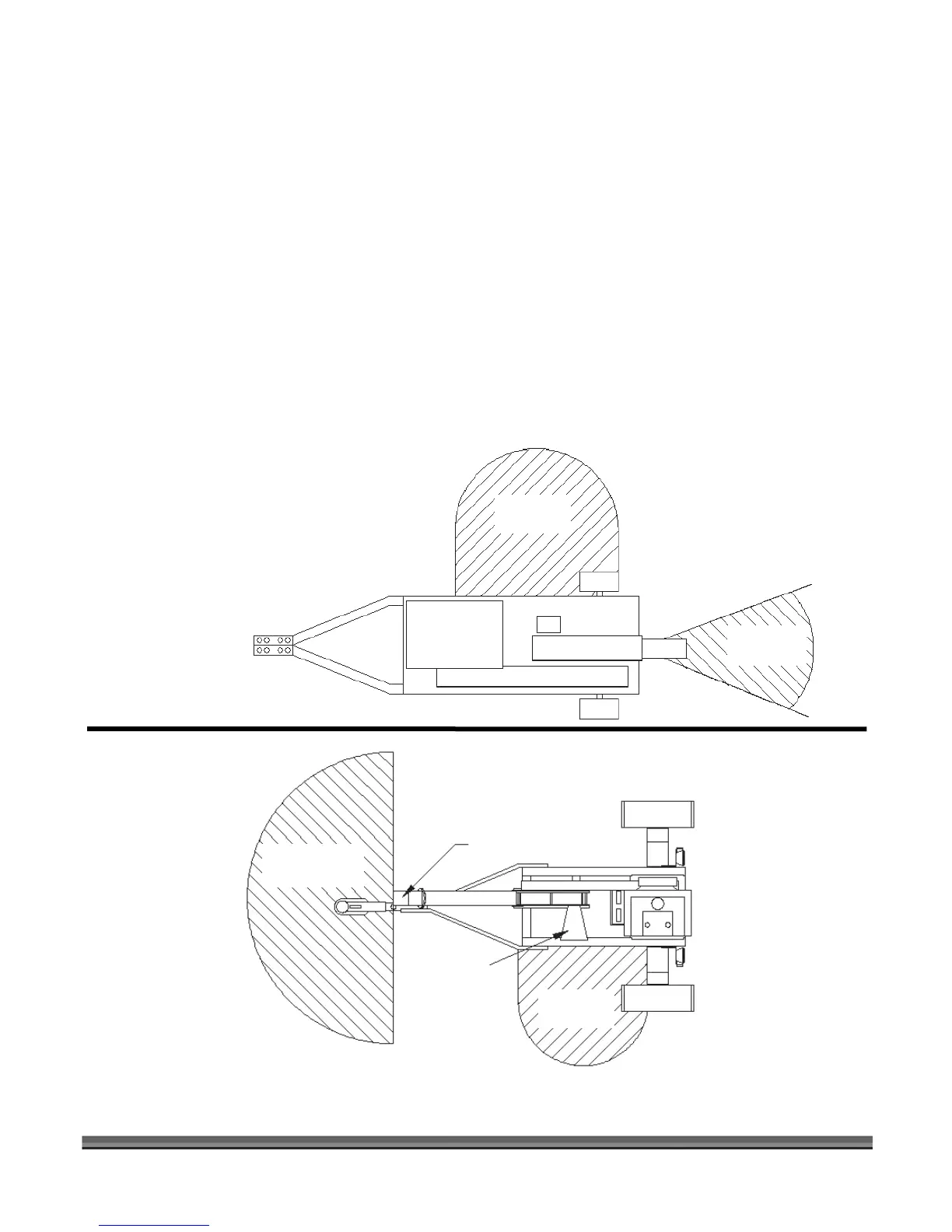

Figure 9
18 HP Bottom Dischar
g
e
19 HP To
p
Dischar
g
e
Discharge
A
rea
Top View
Discharge
Area*
Discharge Deflector
Chipper Hopper
*The exact area of discharge will be
determined by the direction of the
Discharge Chute and the angle of
the Deflector.
Operato
r
Zone
Operato
r
Zone
Top View
