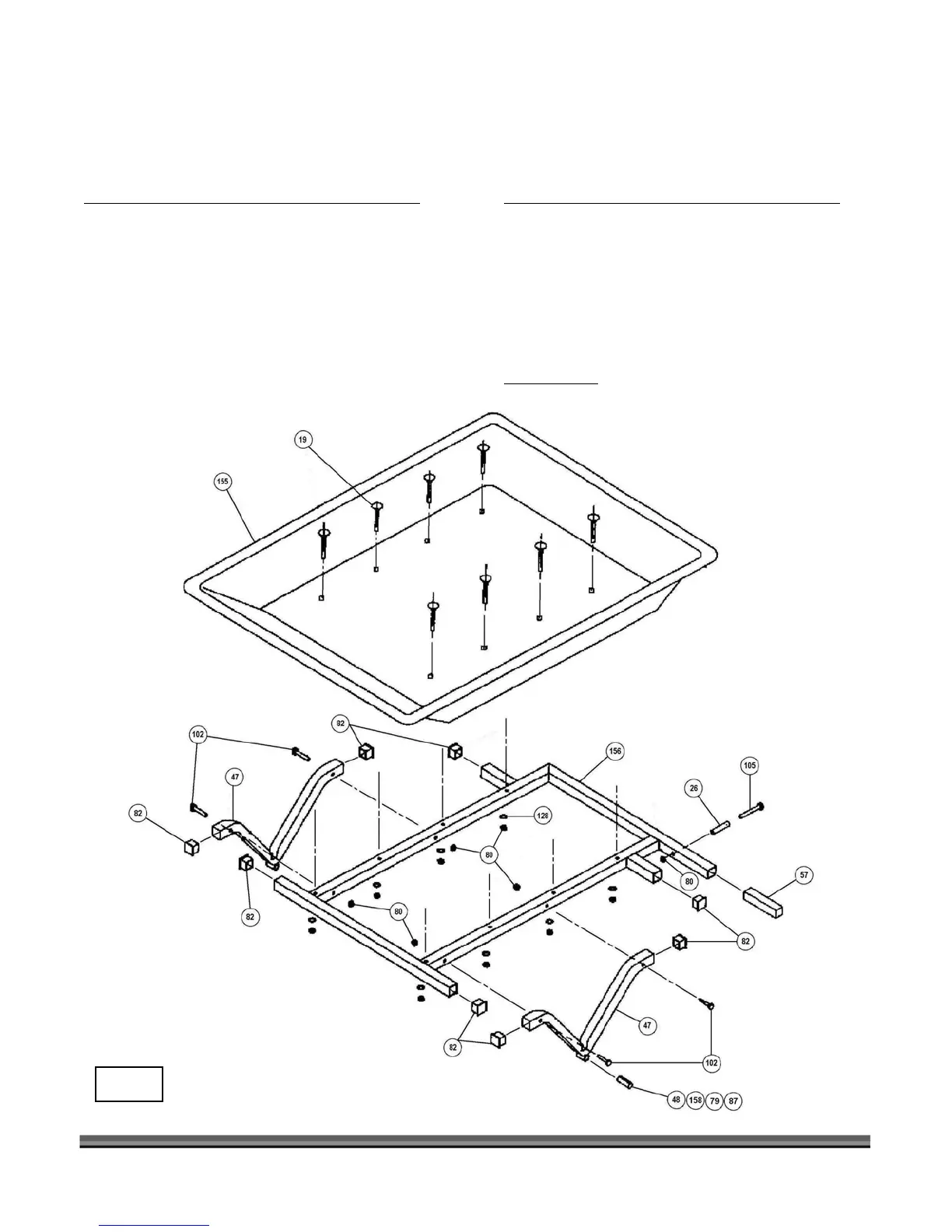

Parts List and Schematic - Molded Body Assembly

NOTE: Part numbers listed are available through DR Power Equipment. Not all parts appear on all diagrams.

Ref# Part# Description

19 109131 Bolt, 5/16"-18 x 1-1/2", Carriage, Gr2,

26 112311 Spacer, .327" ID, .500" OD, 1.5" L

47 108771 Arm, Dump

48 109401 Bushing, .375" ID, .50" OD, 1.13" L

57 110211 Grip, Handle, 4" x 1-1/4"

79 110751 Nut, Nylon Lock, 3/8"-16

80 110761 Nut, Nylon Lock, 5/16"-18

82 111081 Plug, 1" x 1" OD

87 111531 Bolt, 3/8"-16 x 2-1/4", HCS

Ref# Part# Description

102 111591 Bolt, 5/16"-18 x 2-1/2", HCS

105 111321 Bolt, 5/16"-18 x 4", HCS

128 112501 Washer, Lock, 5/16"

155 124561 Molded Bed, Drilled

156 110071 Frame

158 112391 Washer, Flat, 3/8", USS

Not Illustrated

136191 Parts Bag, Molded Bed

070119
