44 DR
®
POWERWAGON-PRO

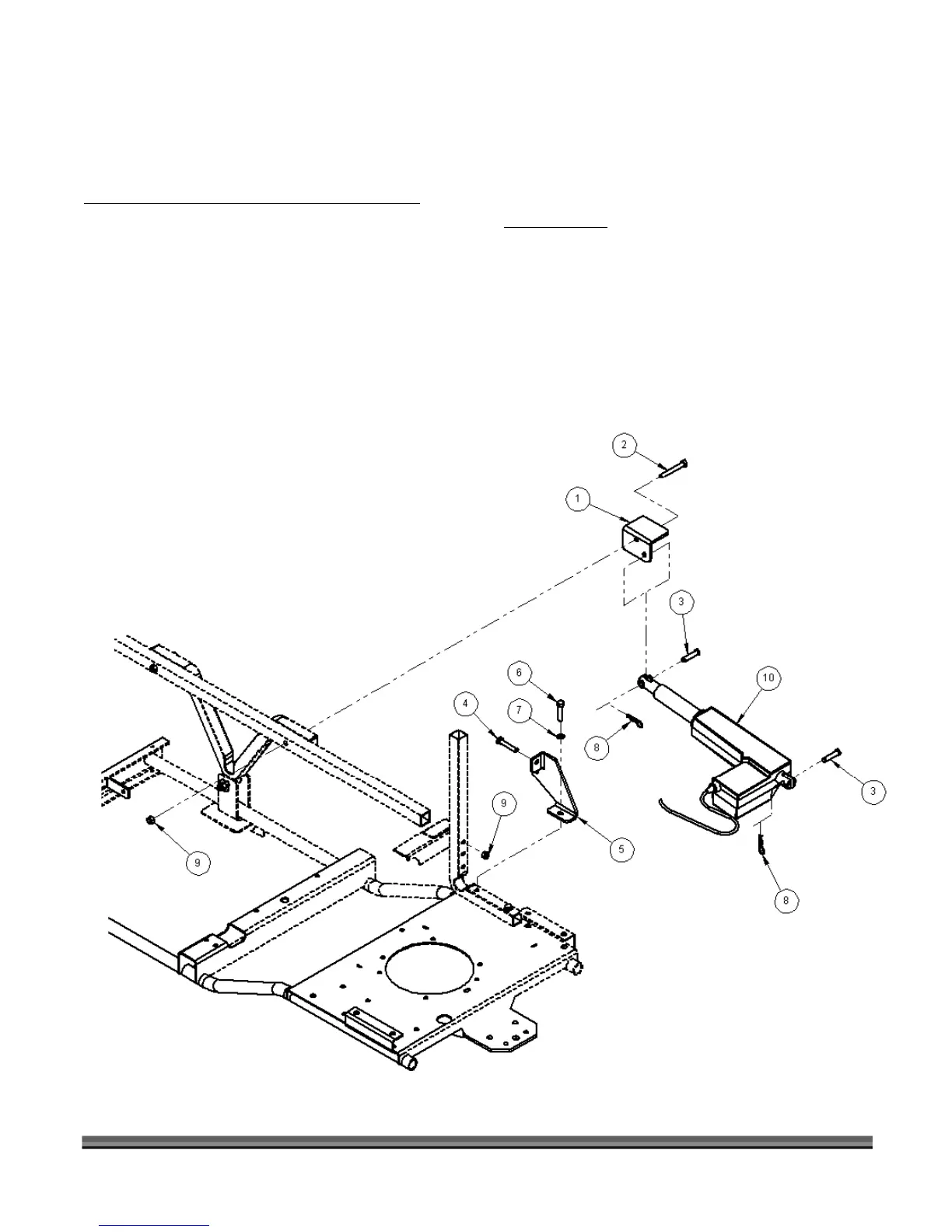

Parts List and Schematic – Electric Dump
NOTE: Part numbers listed are available through DR Power Equipment. Not all parts appear on all diagrams.
Ref# Part# Description
1 181481 Bracket, Bed
2 111591 Bolt, 5/16"-18 x 2-1/2"
3 187101 Pin, Clevis, 3/8" x 1-1/2"
4 150451 Bolt, 5/16"-18 x 1-3/4"
5 181471 Bracket, Upright
6 134431 Bolt, 5/16"-18 x 1-1/2"
7 112411 Washer, Flat, 5/16" USS
8 151921 Clip, Hitch Pin
9 110761 Nut, Nylon, Lock, 5/16"-18
10 241471 Actuator, Fast, w/Wire Harness
Not Illustrated
181511 Bracket, Switch
188281 Wire Harness, Electric Dump
112141 Cable Tie
187091 Switch, Panel Dump (part of
188281)
