Dräger Alcotest 9510 Technical Manual

Description
Dräger Alcotest 9510 Washington Technical Manual V3.1 2014 5

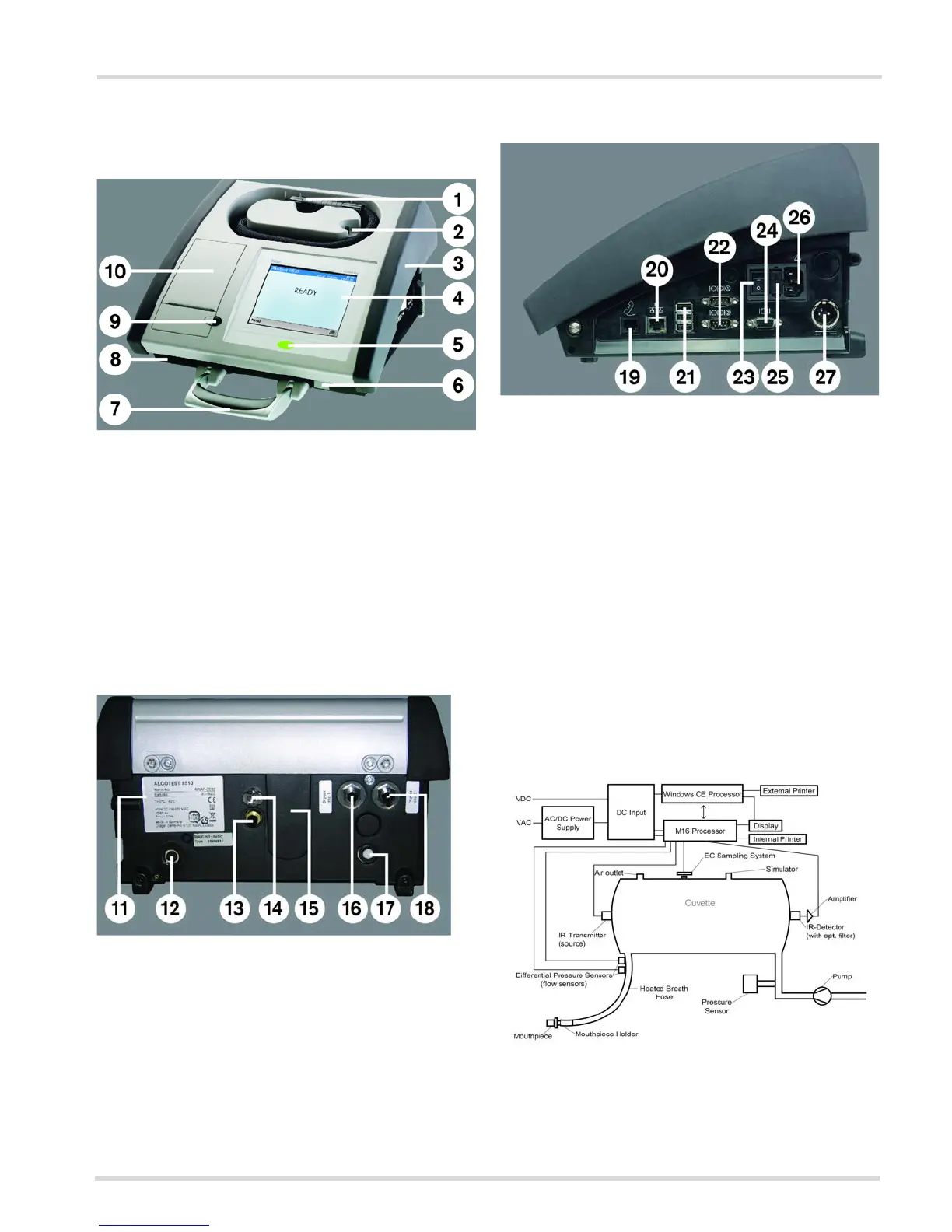

4.7 Product Overview
Front view
1 Breath hose (heated and temperature controlled)
2Stylus
3 Rubber bumpers
4 Display and touchscreen
5 Start button
6 IR port (For keyboard and PC communication)
7 Transport handle (detachable), optional
8 Speaker
9 Unlocking button of the printer flap
10 Internal thermal printer
Rear view
11 Type plate
12 Accessory socket (for interface of peripherals)
13 Cuvette Inlet (Simulat
or va
por inlet port)
14 Simulator pump outlet port
15 Exhaust port (cuvette outlet, protected against blockage)
16 Dry gas inlet 1 port(internally valved with electro solenoids)
17 Purge outlet port
18 Dry gas inlet 2 port(internally valved with electro solenoids)
Side view
19 RJ-11 Modem interface
20 RJ-45 Ethernet interface
21 USB (3 interfaces for keyboard, memory stick, printer, etc)
22 RS 232 Serial Interface
23 Power switch I/0 (ON/OFF)
24 Video Port (for external monitor, screen, or projector)
25 Fuse compartment (holds two 2amp slow fuses)
26 AC Receptacle (90-260VAC operation with 2 fuses)
27 12V DC Receptacle
4.8 Intended use
The Dräger Alcotest 9510 is a measuring instrument for
evidential breath alcohol testing. It automatically analyzes the
alcohol concentration (ethanol content per respiratory volume)
in a specimen of breath. The Dräger Alcotest 9510 is designed
for stationary use and mobile use.
4.9 Functional Description
Schematic view of the components of the 9510:
The Windows CE system controls the peripheral accessories.
The M16 processor o
perates the measuring system and
enables data transfer of the result to the Windows CE system.
