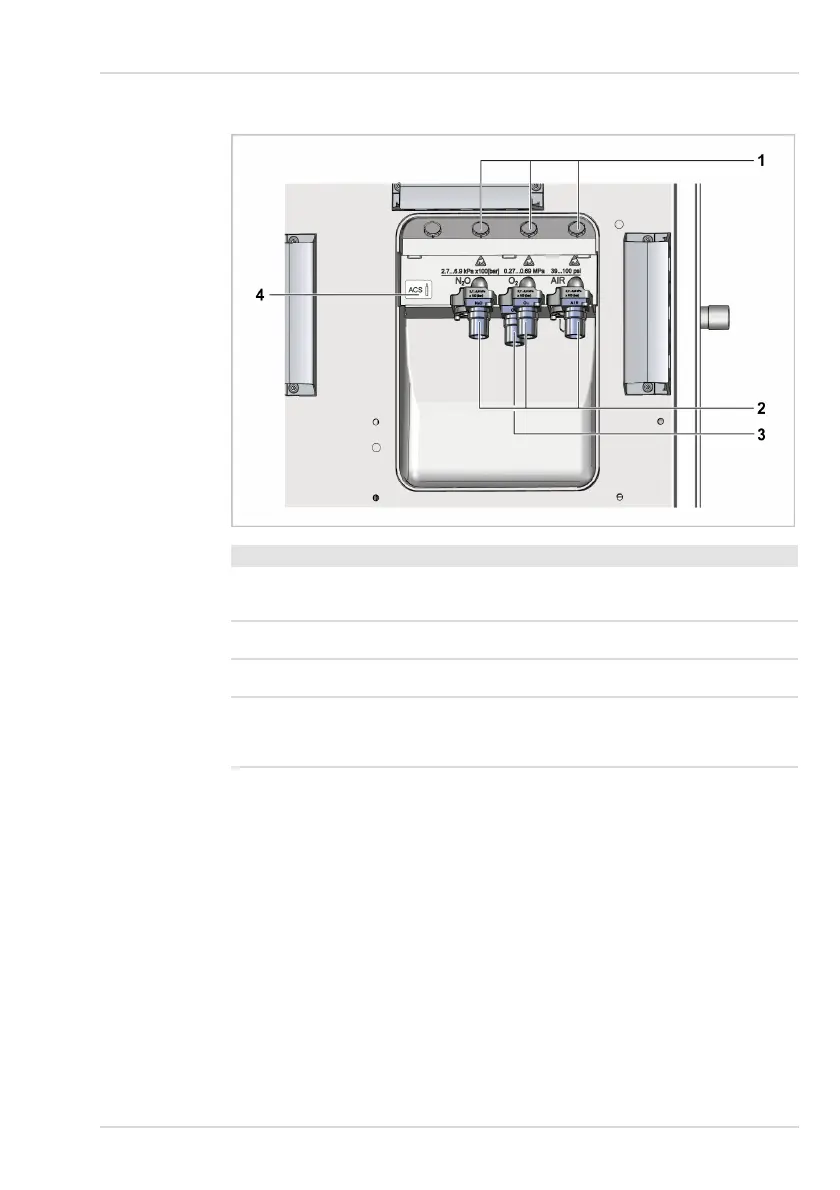

1.1.6 Gas inlets
36475
No. Designation Description
1 Connectors for pressure measur-
ing lines for gas cylinders (option)
Used for connecting the pressure measuring
lines of the pressure reducers on the gas cylin-
ders.
2 Connectors for central gas sup-
ply system
Enable the device to be supplied with gases
from the central supply.
3 Connectors for gas cylinders
(option)
Enable the device to be supplied with gases
from the gas cylinders.
4 Advanced Cylinder Support label
(option)
On devices that are equipped with Advanced
Cylinder Support, the gas cylinder valves can
also remain open during operation with the cen-
tral supply.
