10 Quick reference guide | Atlan SW 2.0n

Overview

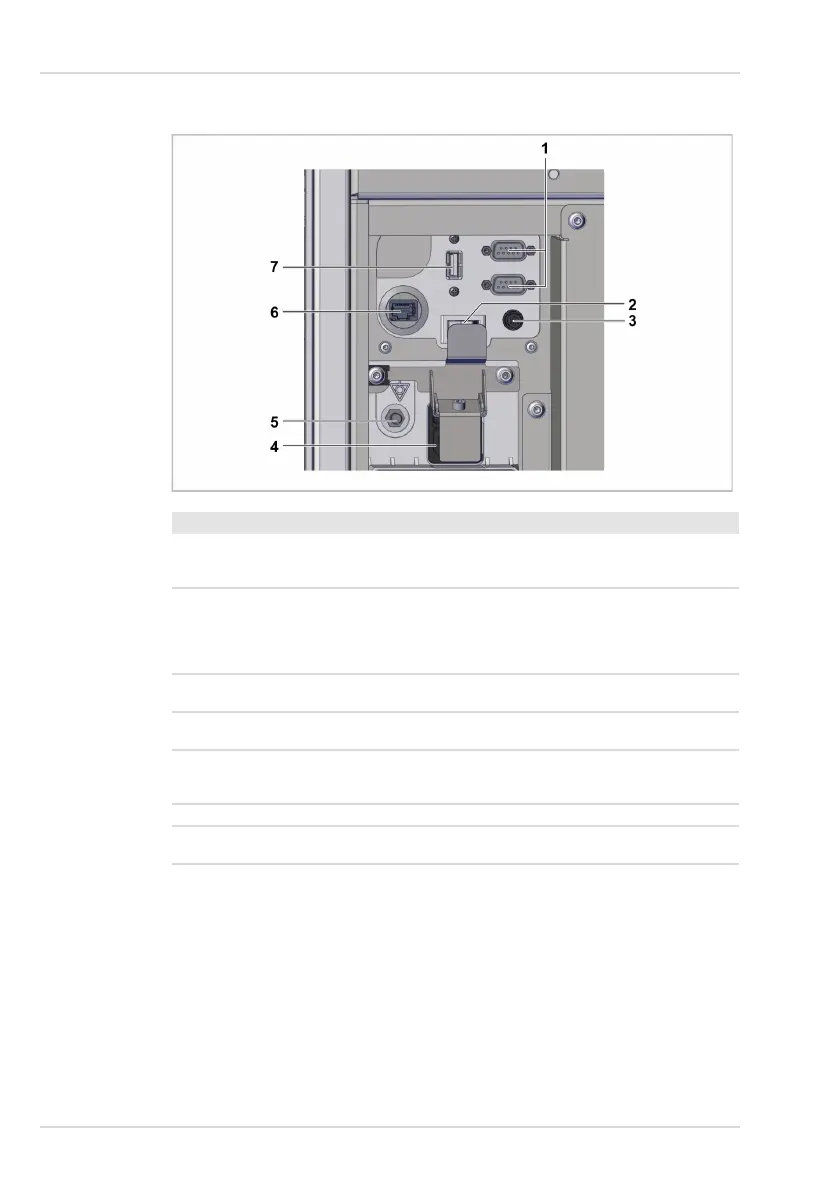

1.1.5 Connectors

36474

No. Designation Description

1 Serial port (COM 1 and COM 2) This serial port (RS232) supports the MEDI-

BUS.X protocol for data exchange between the

anesthesia machine and external devices.

2 Main switch Turns the device off and minimizes the current

consumption when the power plug is pulled out.

To be used when the device is to be discon-

nected from the power supply for longer than

2 weeks and during service activities.

3 Connector for optional work-

place light

Used for connecting an external workplace light.

4 Power inlet (connector for power

cable)

Used to connect the device to the mains power

supply.

5 Potential equalization pin Used for connecting a potential equalization

cable. This will minimize differences in electrical

potential.

6 Network port Enables data transfer within an IT network.

7 USB port Used to transfer data to a USB mass storage

device.
