Overview

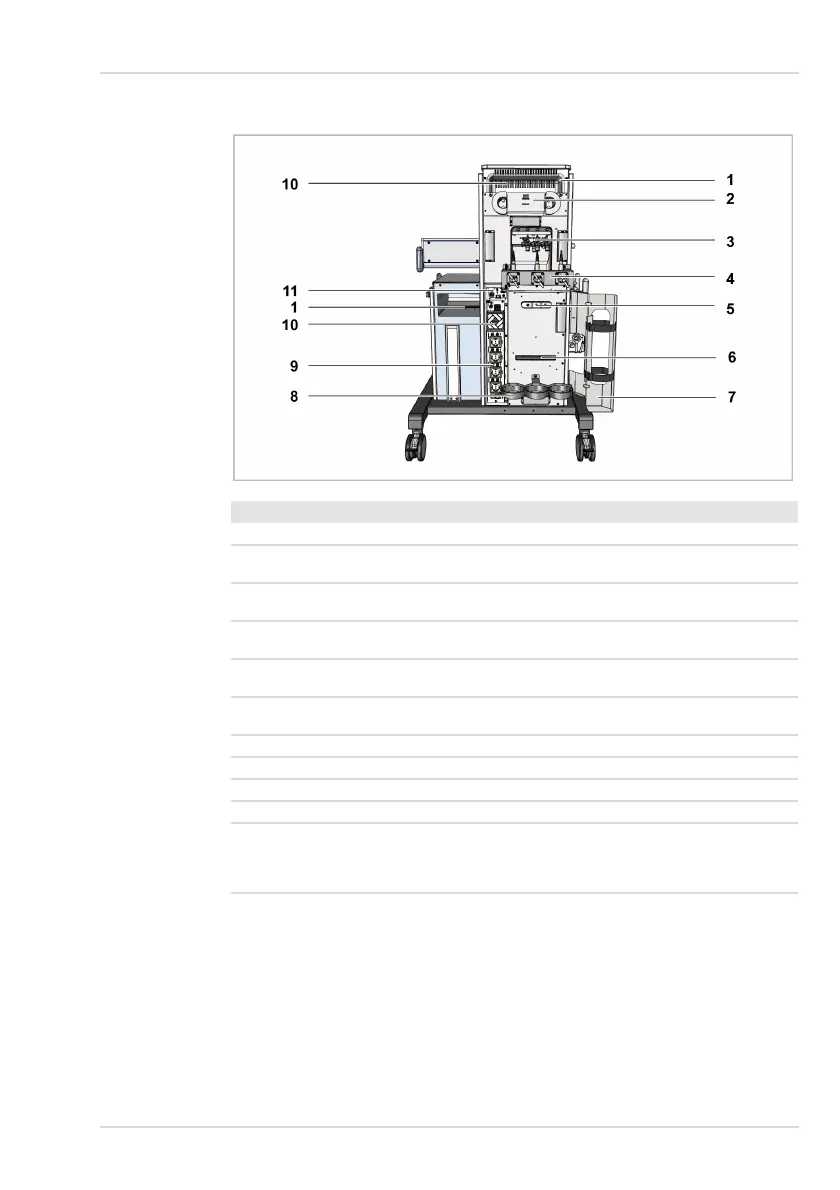

1.1.4.2 Version with pin-index connector for suspended gas cylinders
49323
No. Designation Description
1 Storage compartment Can be used as storage space.
2 Holder for hoses and cables Used for storing and winding up central supply
hoses and cables.
3 Gas supply block Provides connectors for gases from the central
gas supply system and for gas cylinders.
4 Hanger yoke system (option) Enables the connection of gas cylinders with a
pin-index connector.
5 Strain relief for compressed gas
hoses
Protects the compressed gas hoses from loos-
ening inadvertently.
6 Vent Discharges warmed air from the device into the
environment.
7 Gas cylinder park holder (option) Can hold an additional gas cylinder.
8 Gas cylinder holder (option) Secures the gas cylinders.
9 Auxiliary power sockets (option) Allow other devices to be connected.
10 Ventilation slot Feeds ambient air to the device for ventilation.
11 Connectors Provides connectors for power cable, potential
equalization, and interfaces. Used for data
exchange between external devices, additional
components, and networks.
